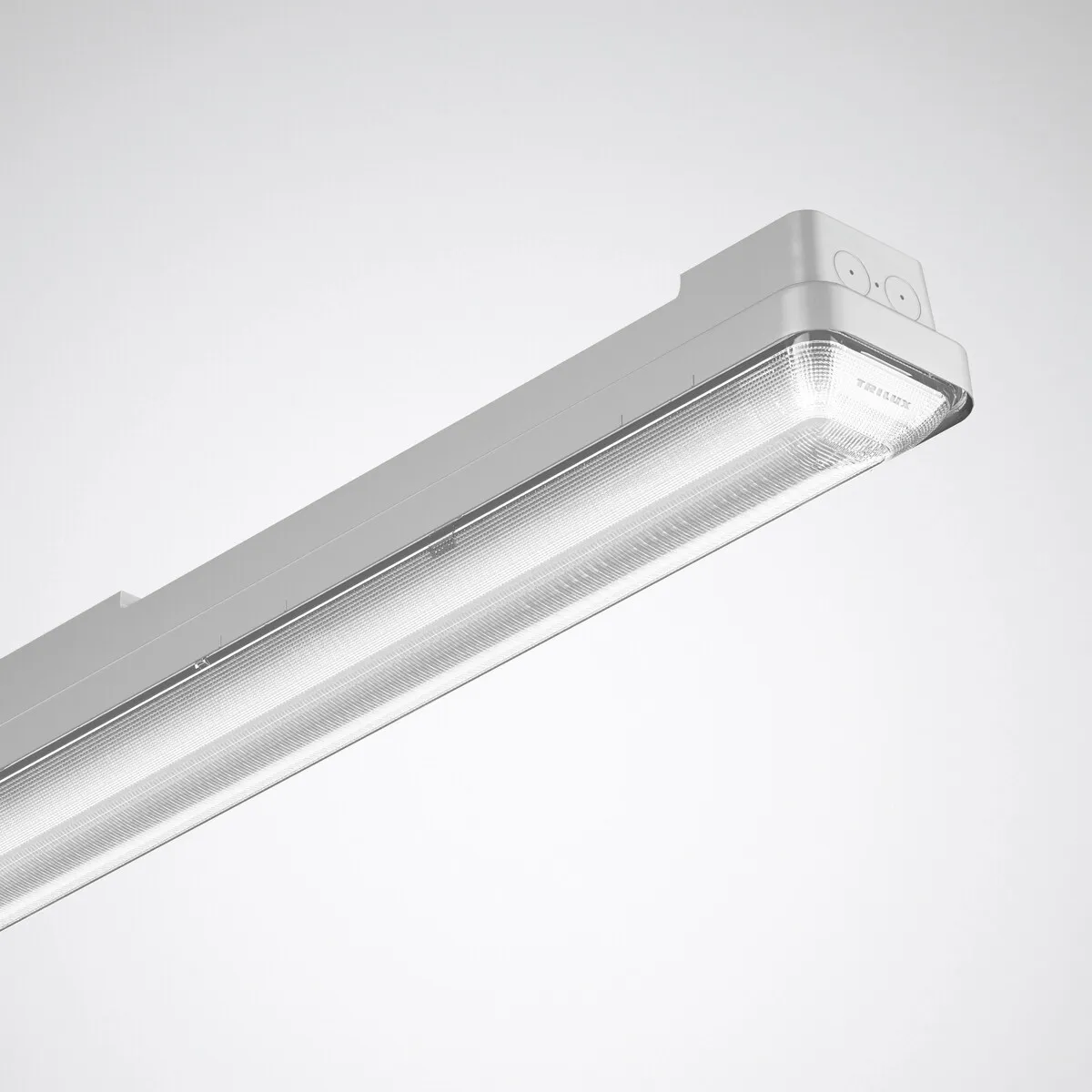

Trilux Oleveon Fit
Oleveon Fit LED with its innovative 3-D prismatic technology creates outstanding, glare-free and energy-efficient light. The high product quality, diverse range of variants and the intelligent LiveLink light management system lifts the damp-proof lighting to a new level.
Luminaire Type
Description
LED weather-proof luminaire
Application Areas
Stairwells, canopied outdoor areas not exposed to general weather, Cold stores, industrial facilities, utility rooms, escape tunnels, car parks and damp room areas of all types
Mounting Methods
For ceiling, wall and suspended mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,000lm - 7,900lm | Multi-lumen option
Connected Load
14W - 57W
Luminous Efficiency
Energy efficiency up to 145lm/W
Service Life
L80(tq 25 °C) 50,000h
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) / CLO optional | The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020)
Other Options
With through-wiring options (LV) | Sensor Options HFS / LiveLink versions for radio use and monitoring use among other applications
Optical System
Optics
PC cover / PMMA cover
Light Distribution
Direct light distribution | Beam options B (narrow-wide distribution), L (Lambertian)
Housing
Housing
Luminaire body of PC, light grey RAL 7035'
Housing Options
WxH: 102x91mm, Lenght options 695mm, 1257mm, 1552mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBMC (Bracket for suspended mounting) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting), Wire Suspension Accessory, Through-wiring accessories | E-line Gear Tray Accessories
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (PC Versiyon), IK03 (PMMA)
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
Luminaire Type
Description
LED weather-proof luminaire
Application Areas
Stairwells, canopied outdoor areas not exposed to general weather, Cold stores, industrial facilities, utility rooms, escape tunnels, car parks and damp room areas of all types
Mounting Methods
For ceiling, wall and suspended mounting
Optical System
Optics
PC cover / PMMA cover
Light Distribution
Direct light distribution | Beam options B (narrow-wide distribution), L (Lambertian)
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,000lm - 7,900lm | Multi-lumen option
Connected Load
14W - 57W
Luminous Efficiency
Energy efficiency up to 145lm/W
Service Life
L80(tq 25 °C) 50,000h
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body of PC, light grey RAL 7035'
Housing Options
WxH: 102x91mm, Lenght options 695mm, 1257mm, 1552mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBMC (Bracket for suspended mounting) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting), Wire Suspension Accessory, Through-wiring accessories | E-line Gear Tray Accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) / CLO optional | The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020)
Other Options
With through-wiring options (LV) | Sensor Options HFS / LiveLink versions for radio use and monitoring use among other applications
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (PC Versiyon), IK03 (PMMA)
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
