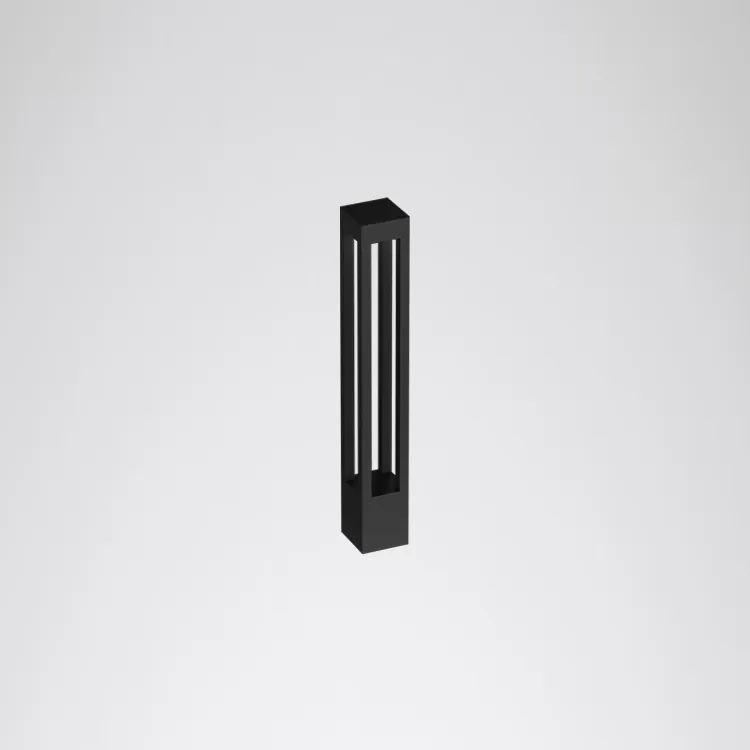

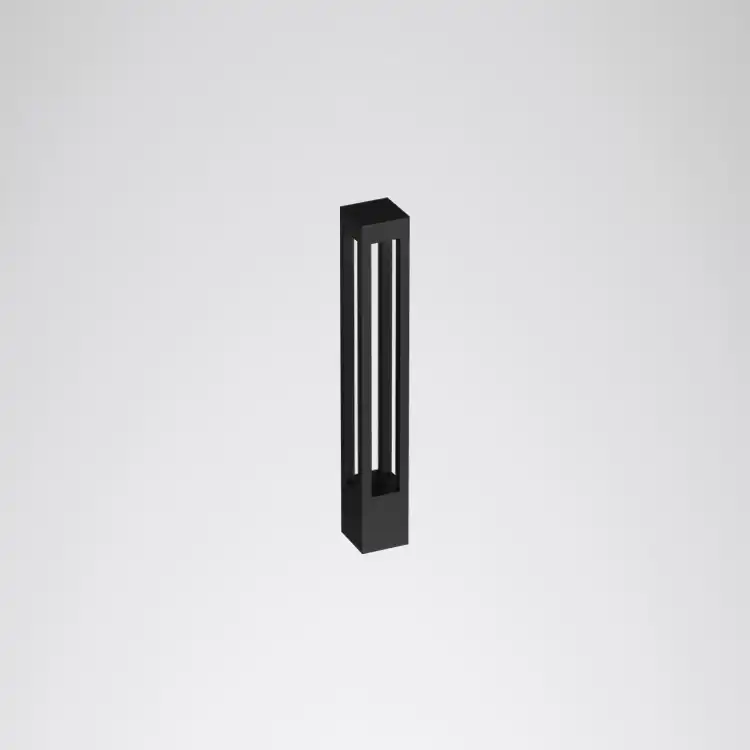

BL100
BL 100/300 is an ideal solution for Vicinity Lighting applications such as parks, gardens, walkways, and building surroundings, with its simple design. Offering different height and power options, housing, and light color choices, along with decorative design options, it provides comfortable lighting.
| Luminaire Type | |
| Description | Vicinity Lighting Luminaire |
| Application Areas | Walking paths, parks and green areas, squares |
| Mounting Methods | Bollard type |
| Optical System | |
| Optics | High-transmittance tempered glass diffuser, PMMA lens |
| Light Distribution | Rotational Symmetrical |
| LED System - Light Source | |
| Light Source | LED technology |
| Luminous Flux | 700lm – 2.500lm |
| Connected Load | 8W – 25W |
| Service Life | L80 (tq 35°C) = 50.000hours |
| Light Colour | 3000K / 4000K / 6500K |
| Colour Rendering Index | Ra > 70 |
| Housing | |
| Housing | Electrostatic Powder Coated Aluminium Profile Housing | RAL7016 anthracite gray color, can be produced with different colors |
| Housing Options | 100x100, 150x150mm / H:500-1500mm / Custom lengths are available |
| Electrical Version | |
| Electrical Version | Electronic Control Gear / DALI control gear (digitally dimmable) |
| Other Options | For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact |
| Certificates - Standards | |
| Protection Rate | IP65 |
| Safety Class | Class I |
