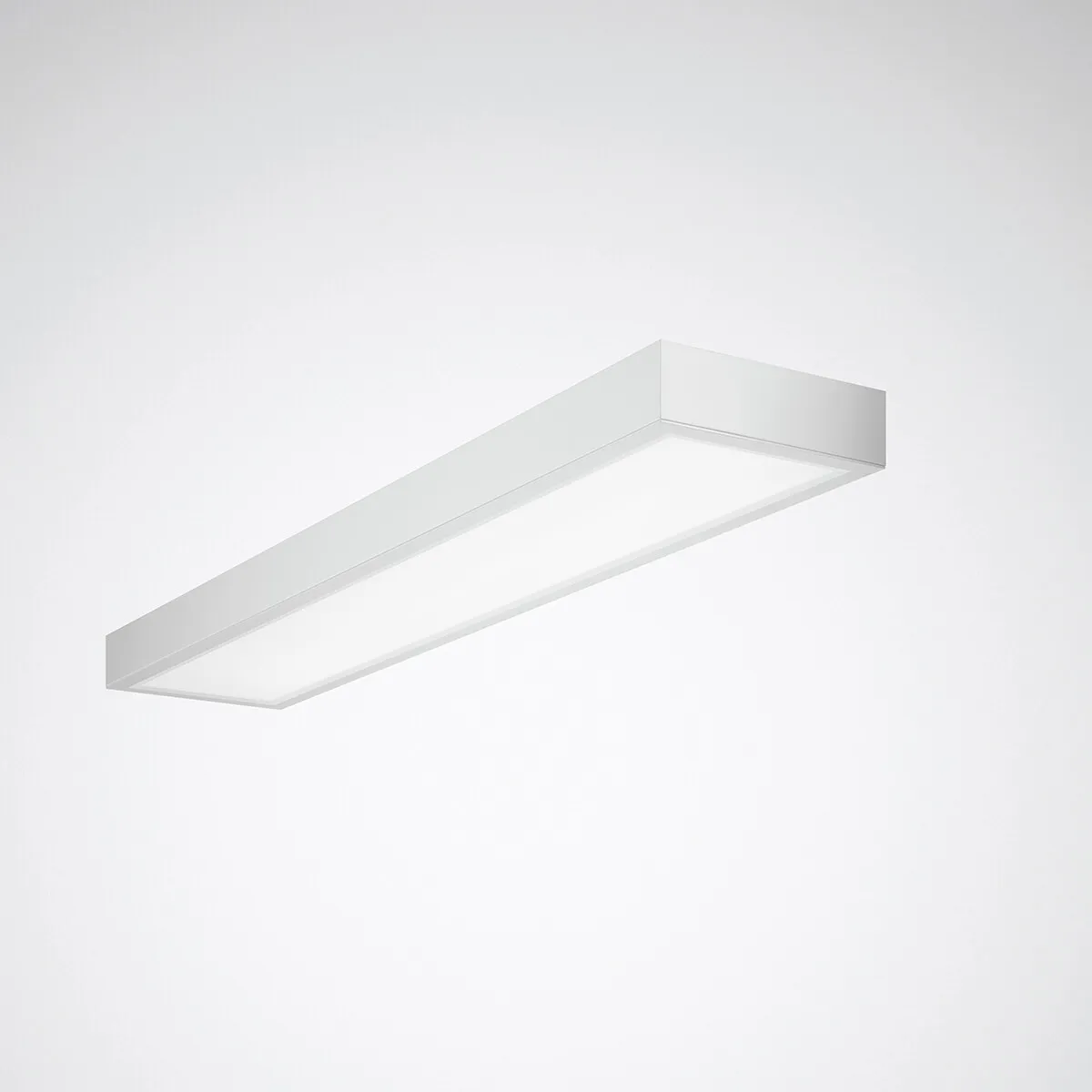

Trilux Fidesca
Fidesca, only those that are familiar with the complex demands of cleanroom luminaires are able to fulfil these. Whether in operating theatres, the pharmaceutical industry or for the manufacture of microchips, the Fidesca series offers the ideal solution for all application sectors and is as diverse as the demands placed upon it
| Luminaire Type | |
| Description | Cleanroom luminaire with LED light source |
| Application Areas | For operating rooms, auxiliary operating rooms and intensive care units. For production facilities in the food industry, micrœlectronics and semiconductor manufacturing and the pharmaceutical industry. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. For damp environments and cleanrooms in clinics, laboratories, healthcare and industrial areas. Certified cleanroom suitability of cleanliness classes DIN EN ISO 14644-1 - Class 1 according to Fraunhofer Institute. Compliant with classes A - D of the EC GMP Guide. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. |
| Mounting Methods | Recessed or surface mounted |
| Types | Fidesca PM IP65, Fidesca SD IP65, Fidesca BS IP54 |
| Optical System | |
| Optics | Outer luminaire cover made of highly resistant, clear laminated safety glass with shatterproof bonding and internal CDP microprismatics made of PMMA. The surface inside the luminaire is finely structured to avoid uncontrolled reflections when using laser technology. Resistant to mild disinfectants and UV radiation | BS version - Diffuser of translucent PMMA, Transmission value greater than 80% |
| Light Distribution | DAW (asymmetrical wide) / PW19 (symmetric wide, UGR < 19) / DL (Lambertian) light intensity distribution options |
| LED System - Light Source | |
| Light Source | LED technology |
| Luminous Flux | 3,000lm - 20,000lm |
| Connected Load | 20W - 151W |
| Luminous Efficiency | up to 150 lm/W |
| Service Life | L80(tq 40 °C) = 90,000 h, L85(tq 25 °C) = 70,000 h |
| Light Colour | 4000K / 6500K / HCL (2700K-6500K) optional |
| Colour Rendering Index | Ra > 80 / Ra > 90 |
| Housing | |
| Housing | Luminaire body of sheet steel, powder-coated white (RAL 9016), The smooth surface is easy to clean and highly resistant to damage from mechanical and chemical influences |
| Housing Options | Fidesca PM version: D1 (1248x296x95mm), D2 (1548x296x95mm), D3 (1248x412x95mm), D3 (1548x412x95mm) | Fidesca SD version: M73 (600x600x95mm), M46 (1200x300x95mm), D (622x622x95mm), D1 (1250x296x95mm), D4 (1550x412x95mm) |
| Accessories | Recessed Mounting Frame |
| Electrical Version | |
| Electrical Version | ET (Electronic Transformer) / ETDD (DALI) |
| Certificates Standards | |
| Protection Rate | IP65 (PM, SD Version) / IP54 (BS Version) (DIN EN 60529) |
| Safety Class | Class I (EN 61140) |
| Impact Resistance | IK08 |
| Certificates | CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500) |
