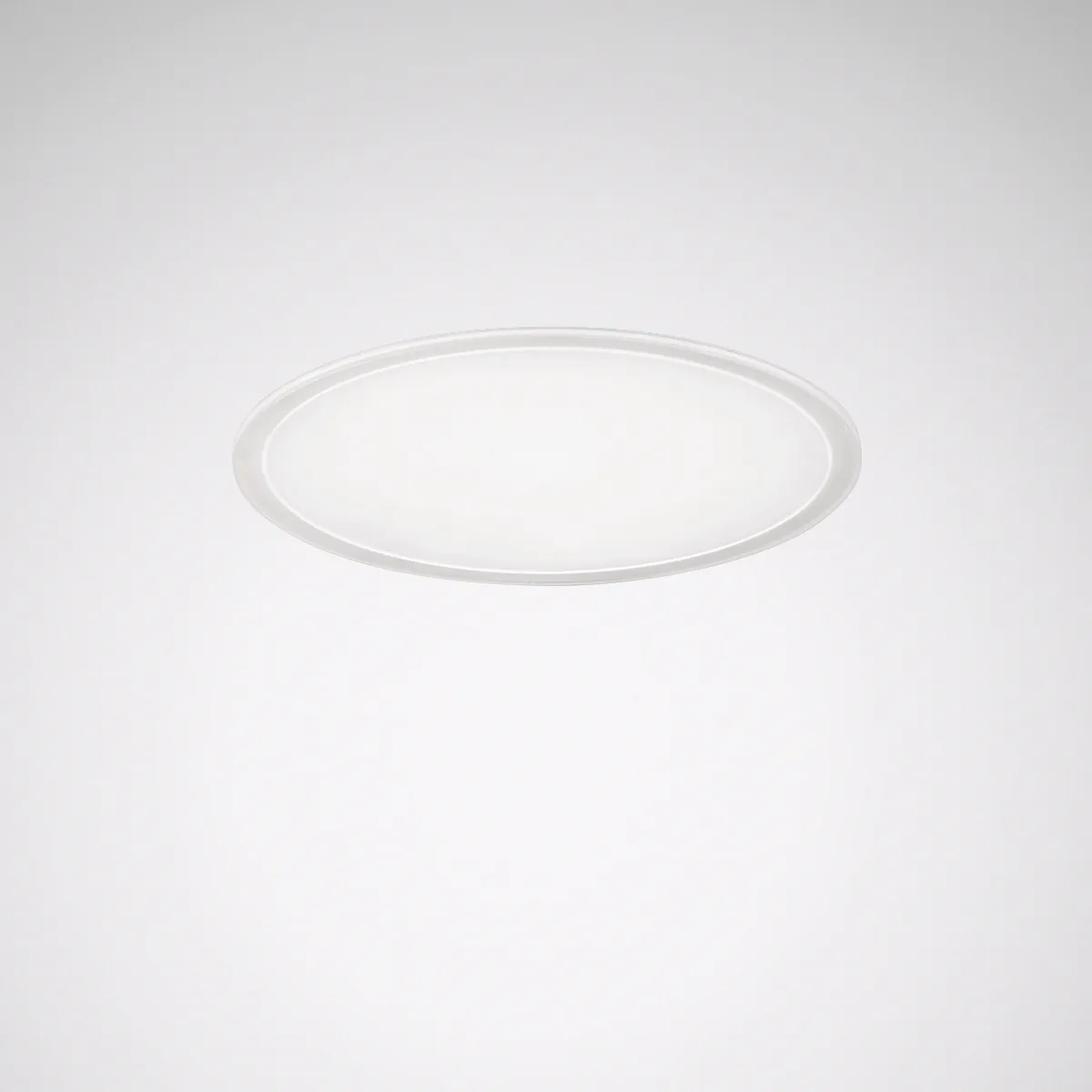

Trilux Inplana
Inplana and Onplana LED downlights are the optimum lighting solution for nearly all office applications. Thanks to their modern, minimalist design these flat downlights blend harmoniously into all styles of architecture and emit planar, glare-free light when mounted on walls and ceilings.
Manuals
| Luminaire Type | |
| Description | Decorative Indoor Lighting Luminaire |
| Application Areas | Prestigious LED downlight, Offices, Banks, Foyers, Corridors, Stairwells, Conference rooms, hotels, Restaurants, residential areas. |
| Mounting Methods | Surface mounted, suitable for ceiling or wall mounting / Pendant (with mounting accessory options) / Recessed (Inplana Serie) |
| Types | Onplana D07 / Onplana D09 / Onplana D11 | Inplana C07 / Inplana C09 / Inplana C11 |
| Optical System | |
| Optics | CDP Microprismatics diffuser / OTA translucent PMMA diffuser |
| Light Distribution | Direct light distribution |
| LED System - Light Source | |
| Light Source | LED technology |
| Luminous Flux | 1.100lm - 5.000lm |
| Connected Load | 9W - 35W |
| Luminous Efficiency | Energy efficiency up to 145lm/W |
| Service Life | L80(tq 25 °C) 70,000h |
| Light Colour | 3000K / 4000K / 6500K / HCL (2700K-6500K) optional |
| Colour Rendering Index | Ra > 80 |
| Housing | |
| Housing | Luminaire body of die-cast aluminium, structure-coated luminaire body |
| Housing Options | Inplana LED Ø234 mm, Ø316 mm, Ø445 mm / Onplana LED Ø234 mm, Ø316 mm, Ø445 mm |
| Accessories | Mounting accessories |
| Electrical Version | |
| Electrical Version | ET (Electronic Transformer) / ETDD (DALI) |
| Certificates - Standards | |
| Protection Rate | IP40 / IP54 |
| Safety Class | Class I |
| Impact Resistance | IK06 |
| Certificates | CE, ENEC |
