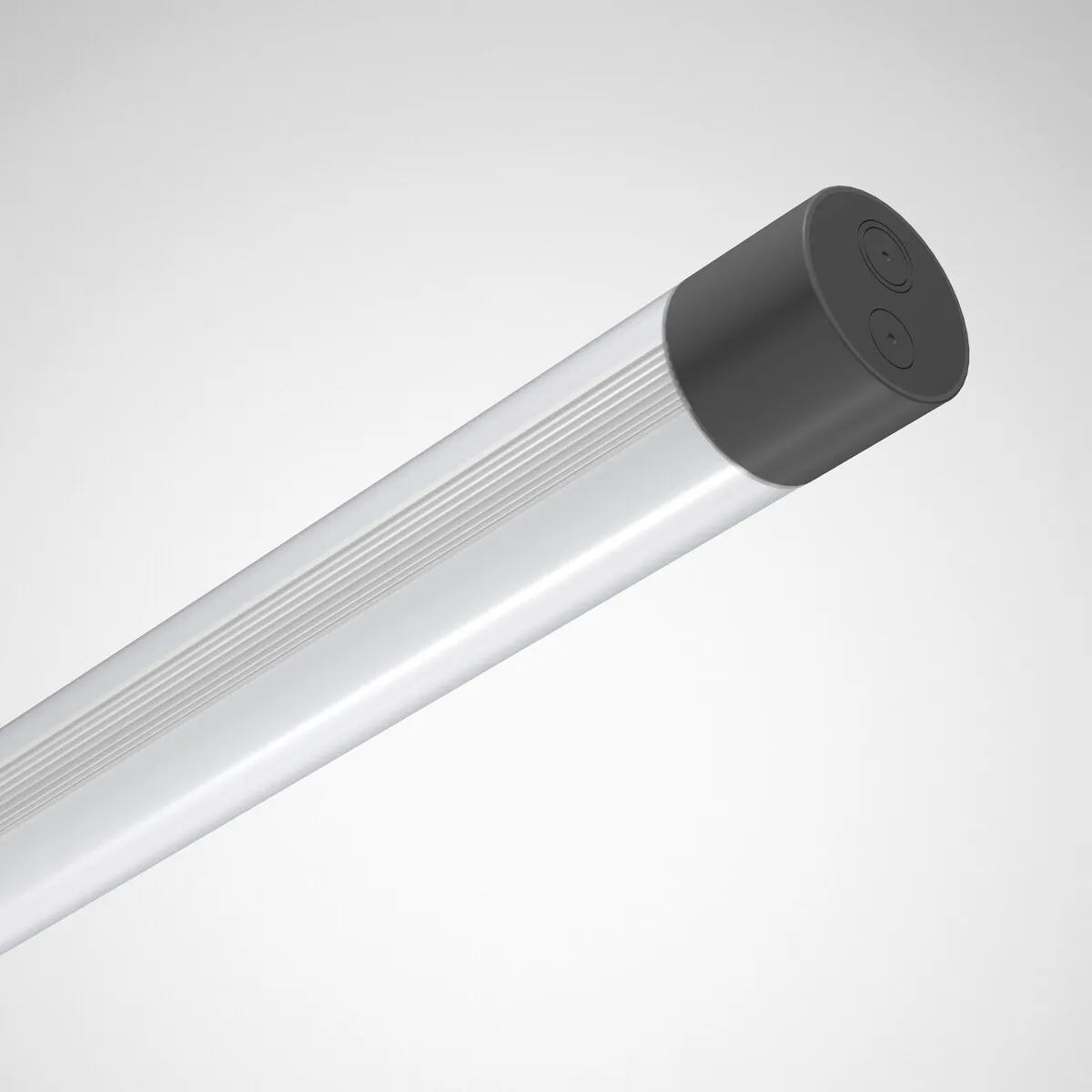

Trilux Tugra
Whether as a single luminaire or light line, Tugra can be flexibly configured and scores with high efficiency (up to 189 lm/W), a long service life (up to 100,000 h), a high protection rating (IP66, IP69K) and robustness (IK10) as well as tailor-made, high quality light. The timeless design brings a new aesthetic to demanding areas. Especially convenient, thanks to the modular concept, smart modules can be flexibly integrated into the system (future-proof).
Manuals
| Luminaire Type | |
| Description | Single or continuous line luminaire |
| Application Areas | High rooms, Halls, Warehouses, Manufacturing halls, Trade fair and exhibition halls, sports halls, Heavy industry. For damp rooms and canopied outdoor areas, offices, conference rooms… |
| Mounting Methods | Surface-mounted, suspended, wall mounting with optional accessories | can be used as a single luminaire or continuous line |
| Types | Tugra IP69K, Tugra IP66, Smart Modules |
| Optical System | |
| Optics | Cylindrical profile with photometrically effective prismatic structure as secondary optic |
| Light Distribution | PL (Lambertian) / PN (narrow distribution) / PW (wide distribution) / PVW (very wide distribution) / PXW (extremely wide distribution) / PAW (asymmetric) / PW19 (wide distribution, UGR < 19) / PW19-IL (wide distribution, UGR < 19 indirect component) |
| LED System - Light Source | |
| Light Source | LED technology |
| Luminous Flux | 1.200lm - 17.000lm |
| Connected Load | 8W - 95W |
| Luminous Efficiency | Energy efficiency up to 189lm/W |
| Service Life | L80 50,000 h tq 25°C / L80 70,000 h tq 25°C (HE) / L80 100,000 h tq 25°C (HE+) |
| Light Colour | 3000K / 4000K / 5000K / 6500K / Active 2700K-6500K (HCL), RGBW |
| Colour Rendering Index | Ra > 80 / Ra > 90 |
| Housing | |
| Housing | PMMA or PC Profile Housing | PC / TPE or ASA / TPE end cap options | Standard Colors of end caps and modules White (RAL9016) / light grey (RAL7035) / anthracite grey (RAL7026) / black (RAL9005) | Tugra individual luminaires are also possible as a special production in any RAL Colour from a run of 250 pieces |
| Housing Options | Light module lengths | L:444mm / L:725mm / L:1006mm / L:1287mm / L:1568mm / L:1849mm / L:2130mm / L:2975mm' |
| Accessories | ZLK (44mm continuous line coupler) / LMB (165mm continuous line coupler) / BLP (blind modules) / KS (end caps) / ZLV (through-wiring) / Mounting accessories for pendant, surface mounted or Wall-mounted applications |
| Electrical Version | |
| Electrical Version | ET (Electronic Driver) / ETDD (DALI Driver) |
| Other Options | LiveLink Wi-Fi, LiveLink SwarmSens, emergency light capable, sensor technology, monitoring ready (MOR) | Smart Module Options LME DM (with HF sensor & LiveLink SwarmSens) / LME LLWS (with Sensor & Livelink Plus) / LME BEACON / LME HFS (with motion sensor) |
| Certificates - Standards | |
| Protection Rate | IP66 / IP69K (gas-tight) |
| Safety Class | Class I |
| Impact Resistance | IK10 (PC Version) |
| Certificates | CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500) |
