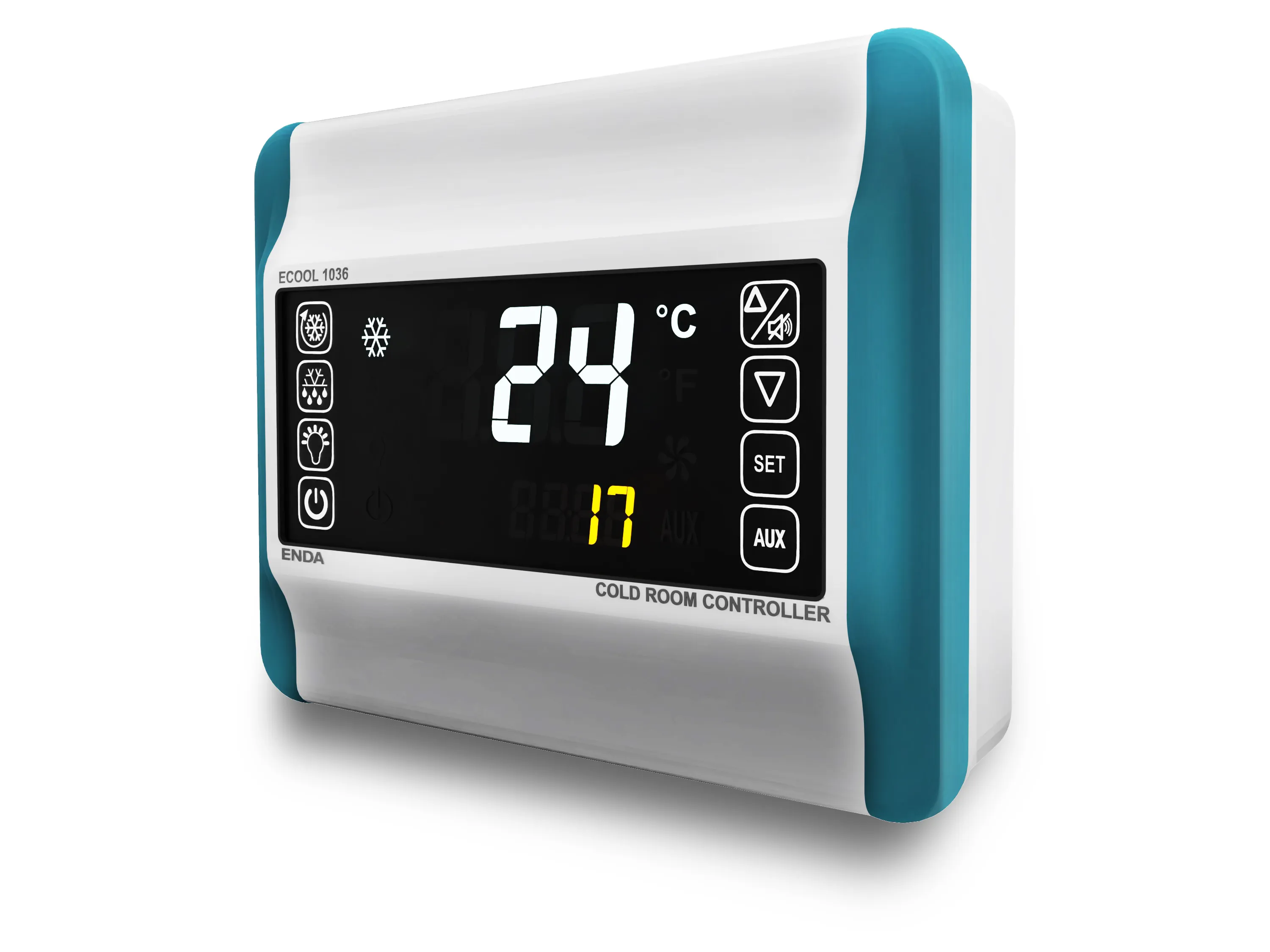

ECOOL 1036
180x230x66 mm, 3 NTC Inputs, 2 DIN Inputs, 6 Relay Outputs Cold Room Controller
180x230x66mm sized, touch screen
Control of fan cooling rooms
On-Off control
Features six relay outputs for cooling, defrost, optional display
Three NTC probe inputs for cooling, defrost, optional display
Two digital inputs in total, adjustable by door control and parameter
Offset settings that can be made for NTC probe inputs
Compressor protection feature with parameter
Compressor start, stop or periodic operation feature in probe failures
Selectable “Smart Defrost" feature
Manual fast cooling feature
Time and evaporator temperature dependent or manual defrosting feature
Ability to adjust set value lower and upper limits
Ability to adjust defrost time and interval
Ability to set lower and upper alarm limits dependent on the set value
NFC technology for easy parameter editing and loading
Ability to display temperature units as °C or °F
Communication feature with RS485 ModBus RTU protocol
CE marked according to European Norms
Manuals
Downloads
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC (Without icing)
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
Protection Degree
IP65 according to EN 60529 standart
Height
Max. 2000m
Output
Compresor Relay Output
Relay: NO 277V AC, 20A (for resistive load) 2hp 250V AC (for inductive load)
Defrost Relay Output
Relay: NO+NC 250V AC, 16A (for resistive load) 1/2hp 240V AC (for inductive load)
Fan Relay Rutput
Relay: NO 250V AC, 16A (for resistive load) 1/2hp 240V AC (for inductive load)
Light Relay Output
Relay: NO 250V AC, 16A (for resistive load) 1/2hp 240V AC (for inductive load)
Alarm Relay Output
Relay: NO+NC 250V AC, 8A (for resistive load) 1/2hp 240V AC (for inductive load)
AUX Relay Output
Relay: NO 277V AC, 20A (for resistive load) 2hp 250V AC (for inductive load)
Life Expectancy
Compressor Relay: Mechanical 10.000.000 operations (under no load), Electrical 100.000 operations (20A at 277V AC, resistive load)
Defrost Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Fan Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Lighting Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Alarm Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
AUX Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Defrost Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Fan Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Lighting Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Alarm Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
AUX Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Housing
Mounting Method
Wall mounting
Dimensions
W180xH230xD66 mm
Weight
Approx. 1150g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
230V AC +10% -20%, 50/60Hz
Power Consumption
Max. 5.6VA
Connection
2.5 and 1.75 mm screw terminal connection
Scale
-60.0...+150.0°C (-76.0 ... +302.0ºF)
Sensitivity
0.1°C (Can be selected as 0.1ºC or 1ºC)
Accuracy
±1ºC
Time Accuracy
±1%
Dipslay
120x70mm, 3 digits and single point at the top, 4 digits and double dots at the bottom (minus digit at the top), 9 notification LEDs.
EMC
EN 61326-1: 2013
Safety Requirements
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
Control
Control Type
Compressor, defrost, fan, lighting, alarm and auxiliary output control with set values and digital inputs
Control Algorithm
On-Off
Hysteresis
Adjustable between 1 and 20.0°C
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC (Without icing)
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
Protection Degree
IP65 according to EN 60529 standart
Height
Max. 2000m
Electrical Characteristics
Supply
230V AC +10% -20%, 50/60Hz
Power Consumption
Max. 5.6VA
Connection
2.5 and 1.75 mm screw terminal connection
Scale
-60.0...+150.0°C (-76.0 ... +302.0ºF)
Sensitivity
0.1°C (Can be selected as 0.1ºC or 1ºC)
Accuracy
±1ºC
Time Accuracy
±1%
Dipslay
120x70mm, 3 digits and single point at the top, 4 digits and double dots at the bottom (minus digit at the top), 9 notification LEDs.
EMC
EN 61326-1: 2013
Safety Requirements
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
Output
Compresor Relay Output
Relay: NO 277V AC, 20A (for resistive load) 2hp 250V AC (for inductive load)
Defrost Relay Output
Relay: NO+NC 250V AC, 16A (for resistive load) 1/2hp 240V AC (for inductive load)
Fan Relay Rutput
Relay: NO 250V AC, 16A (for resistive load) 1/2hp 240V AC (for inductive load)
Light Relay Output
Relay: NO 250V AC, 16A (for resistive load) 1/2hp 240V AC (for inductive load)
Alarm Relay Output
Relay: NO+NC 250V AC, 8A (for resistive load) 1/2hp 240V AC (for inductive load)
AUX Relay Output
Relay: NO 277V AC, 20A (for resistive load) 2hp 250V AC (for inductive load)
Life Expectancy
Compressor Relay: Mechanical 10.000.000 operations (under no load), Electrical 100.000 operations (20A at 277V AC, resistive load)
Defrost Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Fan Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Lighting Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Alarm Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
AUX Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Defrost Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Fan Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Lighting Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (16A at 250V AC, resistive load)
Alarm Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
AUX Relay: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Control
Control Type
Compressor, defrost, fan, lighting, alarm and auxiliary output control with set values and digital inputs
Control Algorithm
On-Off
Hysteresis
Adjustable between 1 and 20.0°C
Housing
Mounting Method
Wall mounting
Dimensions
W180xH230xD66 mm
Weight
Approx. 1150g (after packaging)
Enclosure Material
Self extinguishing plastics
