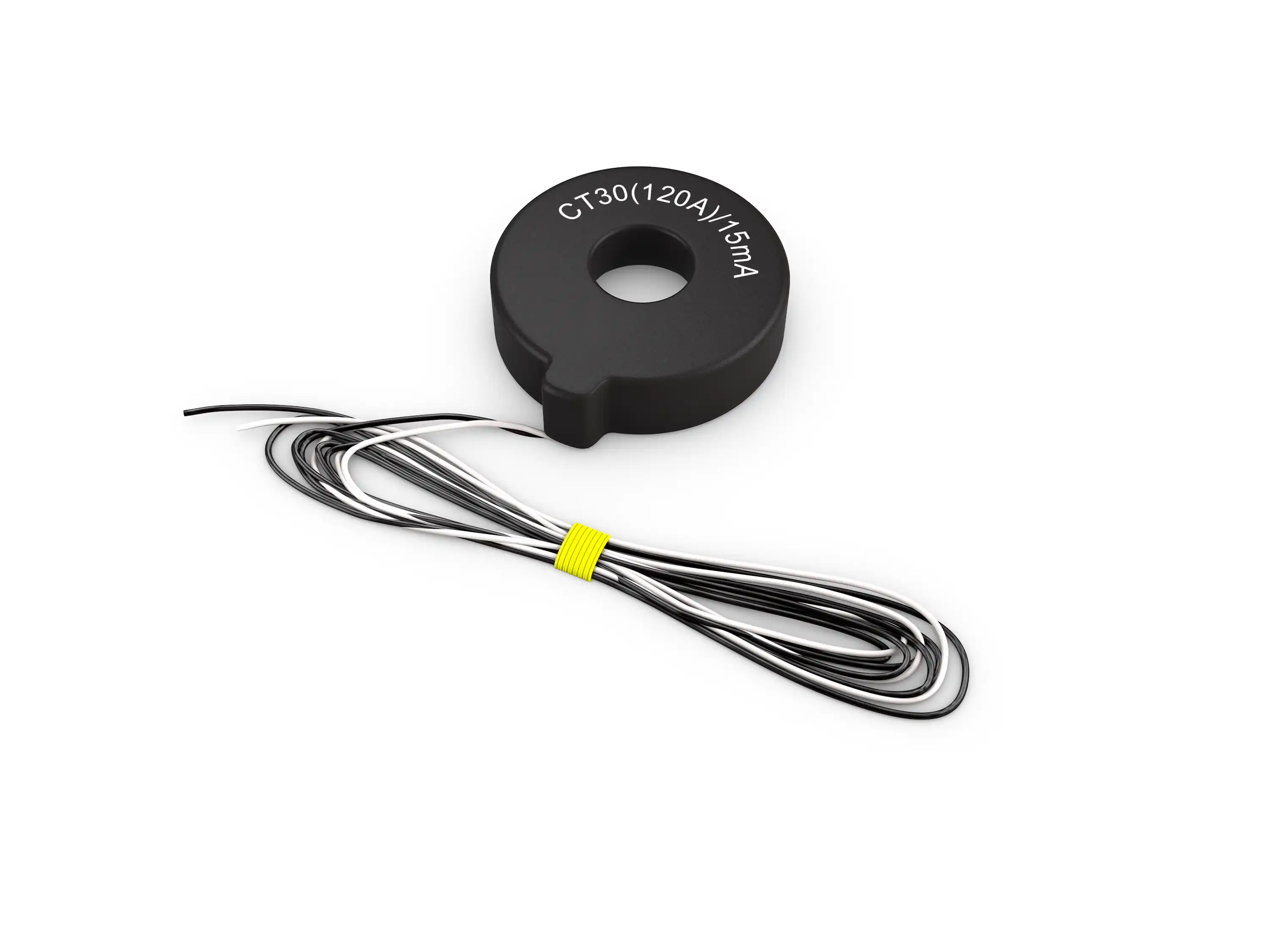

CT30
120A Current Transformer Used with CT Input Ammeter, Eqquied with EPA242-CT Model
Manuals
Environmental Conditions
Ambient/Storage Temperature
-25...+65 ºC
Housing
Case
PBT (UL94 - V0)
Weight
Approx. 50g
Electrical Characteristics
External Connections
0.33mm²
Input Current
120A (max 10ohm)
Output Current
60mA
Frequency
50/60Hz
Ratio
1/2000 ±1%
Accuracy
Class 0.2
Primary Secondary Isolation
3000 Vrms 1 minute
Environmental Conditions
Ambient/Storage Temperature
-25...+65 ºC
Electrical Characteristics
External Connections
0.33mm²
Input Current
120A (max 10ohm)
Output Current
60mA
Frequency
50/60Hz
Ratio
1/2000 ±1%
Accuracy
Class 0.2
Primary Secondary Isolation
3000 Vrms 1 minute
Housing
Case
PBT (UL94 - V0)
Weight
Approx. 50g
