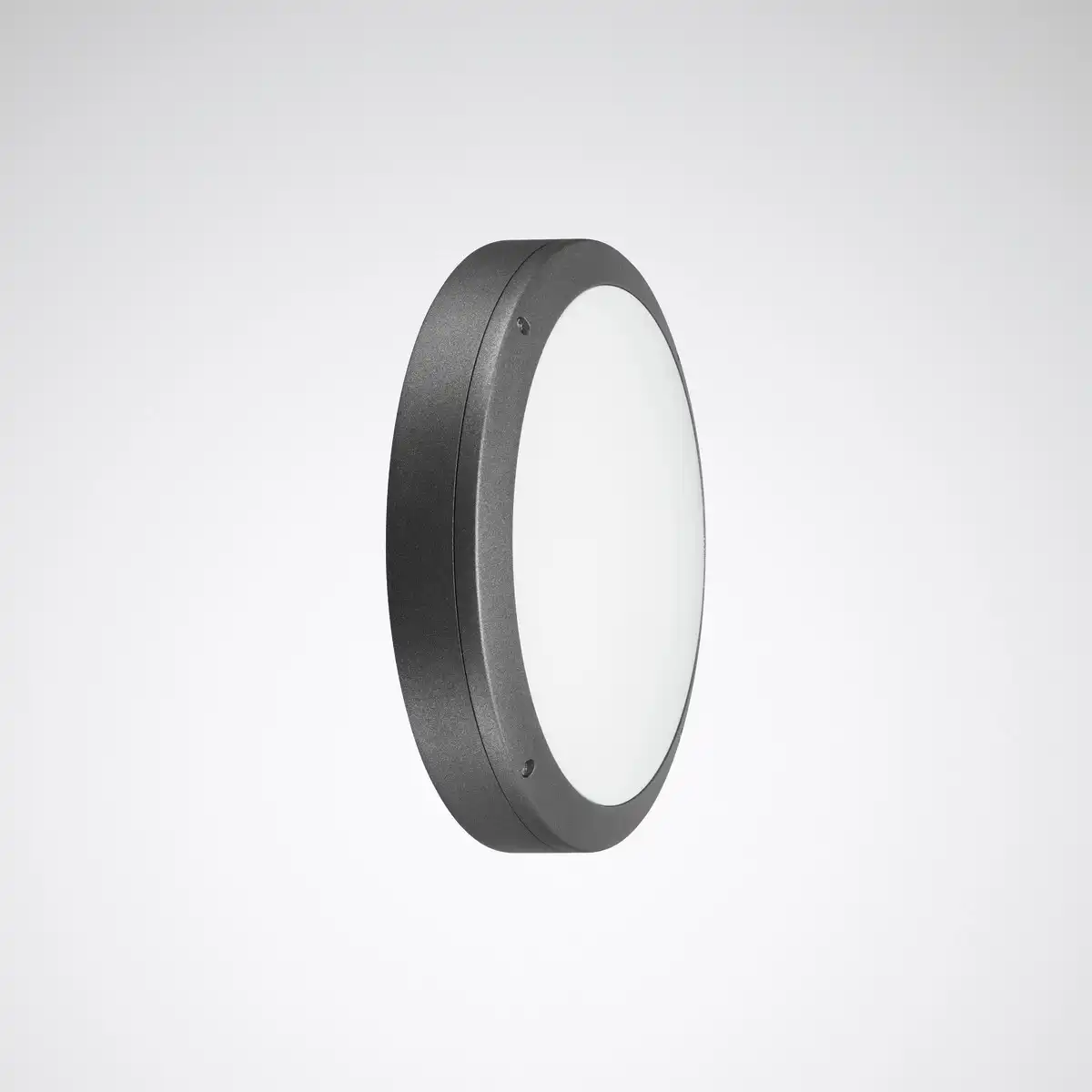

Trilux Skeo Circ
The round Skeo Circ LED provides perfect visual conditions in areas around buildings for attractively displayed facades and entrance areas. Two construction sizes and many covers provide high design flexibility. Luminous flux and light colour can also be flexibly modified retroactively.
| Luminaire Type | |
| Description | Decorative Vicinity Lighting Luminaire |
| Application Areas | Facades, vicinity lighting, building surfaces, canopies, balconies |
| Mounting Methods | Surface mounted, suitable for ceiling and wall mounting |
| Optical System | |
| Optics | Opal PMMA diffuser |
| Light Distribution | Symmetrical wide light distribution |
| LED System - Light Source | |
| Light Source | LED technology |
| Luminous Flux | 900lm - 2.100lm | Luminaire luminous flux adjustable in 3 levels |
| Connected Load | 9W - 20W |
| Luminous Efficiency | Up to 110lm/W |
| Service Life | L80(tq 25 °C) = 50,000h |
| Light Colour | 3000K / 4000K | light color adjustable in 2 levels |
| Colour Rendering Index | Ra > 85 |
| Housing | |
| Housing | Luminaire body of die-cast aluminium, Anthracite, similar to DB 703 or RAL 9010 white color option |
| Housing Options | WD1 Ø265mm / WD2 Ø350mm |
| Accessories | Mounting accessories | Decorative cover accessories |
| Electrical Version | |
| Electrical Version | ET / ETDD (DALI) | HFS Sensor option |
| Certificates - Standards | |
| Protection Rate | IP65 |
| Safety Class | Class I |
| Impact Resistance | IK10 |
| Certificates | CE, ENEC |
