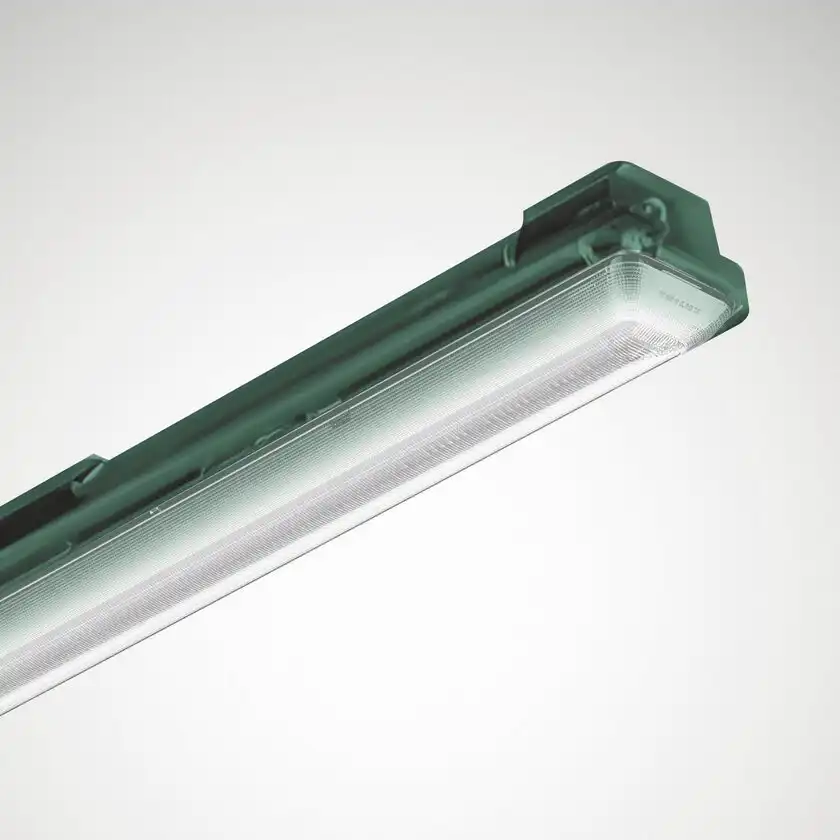

Trilux Oleveon Fit RCY
Oleveon Fit RCY is an innovative lighting solution specially developed for sustainability-focused projects, made from recycled materials. With its durable construction for demanding environments, glare-free prismatic optic, and high energy efficiency, it offers both eco-consciousness and long-lasting performance.
Manuals
Luminaire Type
Description
LED weather-proof luminaire
Application Areas
Stairwells, canopied outdoor areas not exposed to general weather, Cold stores, industrial facilities, utility rooms, escape tunnels, car parks and damp room areas of all types
Mounting Methods
For ceiling, wall and suspended mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
3,900lm - 6,000lm
Connected Load
28W - 44W
Luminous Efficiency
Energy efficiency up to 139lm/W
Service Life
L80(tq 25 °C) 50,000h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) | The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020)
Other Options
With through-wiring options (LV) | Sensor Options HFS / LiveLink versions for radio use and monitoring use among other applications
Optical System
Optics
Diffuser made of recycled material, similar to PC
Light Distribution
Direct, symmetrical wide-angle light distribution
Housing
Housing
Transparent green (similar to RAL 6007) body made of recycled material, similar to PC
Housing Options
WxH: 102x91mm, Lenght options 1257mm, 1552mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBMC (Bracket for suspended mounting) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting), Wire Suspension Accessory, Through-wiring accessories | E-line Gear Tray Accessories
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
Luminaire Type
Description
LED weather-proof luminaire
Application Areas
Stairwells, canopied outdoor areas not exposed to general weather, Cold stores, industrial facilities, utility rooms, escape tunnels, car parks and damp room areas of all types
Mounting Methods
For ceiling, wall and suspended mounting
Optical System
Optics
Diffuser made of recycled material, similar to PC
Light Distribution
Direct, symmetrical wide-angle light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
3,900lm - 6,000lm
Connected Load
28W - 44W
Luminous Efficiency
Energy efficiency up to 139lm/W
Service Life
L80(tq 25 °C) 50,000h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Transparent green (similar to RAL 6007) body made of recycled material, similar to PC
Housing Options
WxH: 102x91mm, Lenght options 1257mm, 1552mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBMC (Bracket for suspended mounting) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting), Wire Suspension Accessory, Through-wiring accessories | E-line Gear Tray Accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) | The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020)
Other Options
With through-wiring options (LV) | Sensor Options HFS / LiveLink versions for radio use and monitoring use among other applications
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
