Trilux Mirona Fit Enda Product
Compare

    Mirona Fit LED complies with maximum lighting specifications in industry and can be precisely modified to specific demands. With a service life of up to 100,000 hours and operating temperatures of up to 70°C, it is both extremely durable and reliable and requires hardly any maintenance during operation. In addition, it can be adapted to individual requirements and thus always ensures occupational safety in all areas with high lighting quality.

Luminaire Type
Description

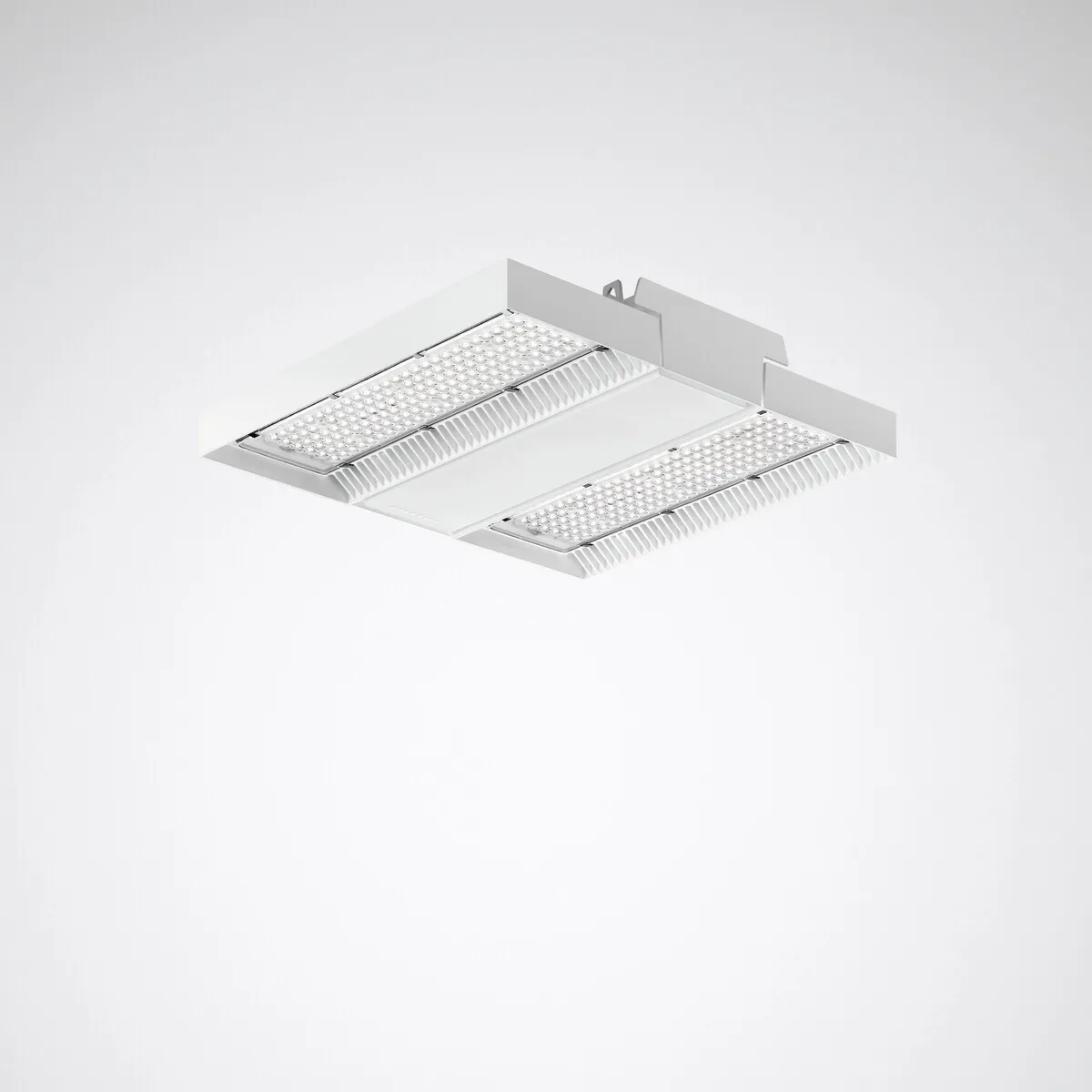

Robust LED highbay luminaire
Application Areas
High rooms, Halls, Warehouses, Manufacturing halls, Trade fair and exhibition halls, sports halls, Heavy industry. For damp rooms and canopied outdoor areas
Mounting Methods
Suitable for ceiling and suspended mounting with optional accessories
Types
Mirona Fit 7650 / Mirona Fit - Sensör / Mirona Fit-TP / Mirona Fit - Wireless / Mirona Fit-SPO / Mirona Fit-ESG
LED System - Light Source
Light Source
LED technology
Luminous Flux
10,000lm - 72,000lm
Connected Load
62W - 425W
Luminous Efficiency
Energy efficiency up to 175lm/W
Service Life
L80(tq 50 °C) = 100,000h / L80(tq 45 °C) = 50,000h / L80(tq 70 °C) = 90,000h | ta: -30 °C - +50 °C / -30 °C - +45 °C / -30 °C - +70 °C
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver) | The control gear unit is replaceable in accordance with the eco-design requirements (VO (EU) 2019/2020)
Other Options
Touch-Dim, CLO-Constant Lumen Output, MOR (monitoring Ready) Options | Wireless Control Options: LLWS IS3 (WiFi & PIR Ø18m) / LLWS IS4 (WiFi & PIR 4mx30m) / EASYAIR (WiFi, PIR Ø16m,ZigBee)
Optical System
Optics
Optical system consists of a PC lens optic, UGR < 22 (EN 12464-1) / heat-treated non-laminated safety glass option (Mirona Fit-ESG)
Light Distribution
Direct symmetric light distribution | Beam options B (wide) / TB (narrow wide) / T (narrow) / HR (narrow-wide, for highbay racking)
Housing
Housing
Robust diecast aluminium body with integrated cooling ribs, Surface coated white (RAL 9016)
Housing Options
Variable modular dimensions depending on lumen package | 2L: 342x342mm / 4L: 342x649mm / 6L:559x649mm / 8L:775x649mm
Accessories
Mounting and suspension accessories | AKY K (Chain suspension set) / DSY K (Wire suspension set) / AMB (Ceiling fixing accessory) / AWB (Wall mounting bracket) / ZDP (Cover of sheet steel for protection from dust deposits)
Certificates Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (IEC 62262) / Mirona Fit-SPO ball-proof type; all-impact-resistance according to DIN 18032-3
Certificates
CE, ENEC, HACCP conformity
Luminaire Type
Description
Robust LED highbay luminaire
Application Areas
High rooms, Halls, Warehouses, Manufacturing halls, Trade fair and exhibition halls, sports halls, Heavy industry. For damp rooms and canopied outdoor areas
Mounting Methods
Suitable for ceiling and suspended mounting with optional accessories
Types
Mirona Fit 7650 / Mirona Fit - Sensör / Mirona Fit-TP / Mirona Fit - Wireless / Mirona Fit-SPO / Mirona Fit-ESG
Optical System
Optics
Optical system consists of a PC lens optic, UGR < 22 (EN 12464-1) / heat-treated non-laminated safety glass option (Mirona Fit-ESG)
Light Distribution
Direct symmetric light distribution | Beam options B (wide) / TB (narrow wide) / T (narrow) / HR (narrow-wide, for highbay racking)
LED System - Light Source
Light Source
LED technology
Luminous Flux
10,000lm - 72,000lm
Connected Load
62W - 425W
Luminous Efficiency
Energy efficiency up to 175lm/W
Service Life
L80(tq 50 °C) = 100,000h / L80(tq 45 °C) = 50,000h / L80(tq 70 °C) = 90,000h | ta: -30 °C - +50 °C / -30 °C - +45 °C / -30 °C - +70 °C
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Robust diecast aluminium body with integrated cooling ribs, Surface coated white (RAL 9016)
Housing Options
Variable modular dimensions depending on lumen package | 2L: 342x342mm / 4L: 342x649mm / 6L:559x649mm / 8L:775x649mm
Accessories
Mounting and suspension accessories | AKY K (Chain suspension set) / DSY K (Wire suspension set) / AMB (Ceiling fixing accessory) / AWB (Wall mounting bracket) / ZDP (Cover of sheet steel for protection from dust deposits)
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver) | The control gear unit is replaceable in accordance with the eco-design requirements (VO (EU) 2019/2020)
Other Options
Touch-Dim, CLO-Constant Lumen Output, MOR (monitoring Ready) Options | Wireless Control Options: LLWS IS3 (WiFi & PIR Ø18m) / LLWS IS4 (WiFi & PIR 4mx30m) / EASYAIR (WiFi, PIR Ø16m,ZigBee)
Certificates Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (IEC 62262) / Mirona Fit-SPO ball-proof type; all-impact-resistance according to DIN 18032-3
Certificates
CE, ENEC, HACCP conformity
