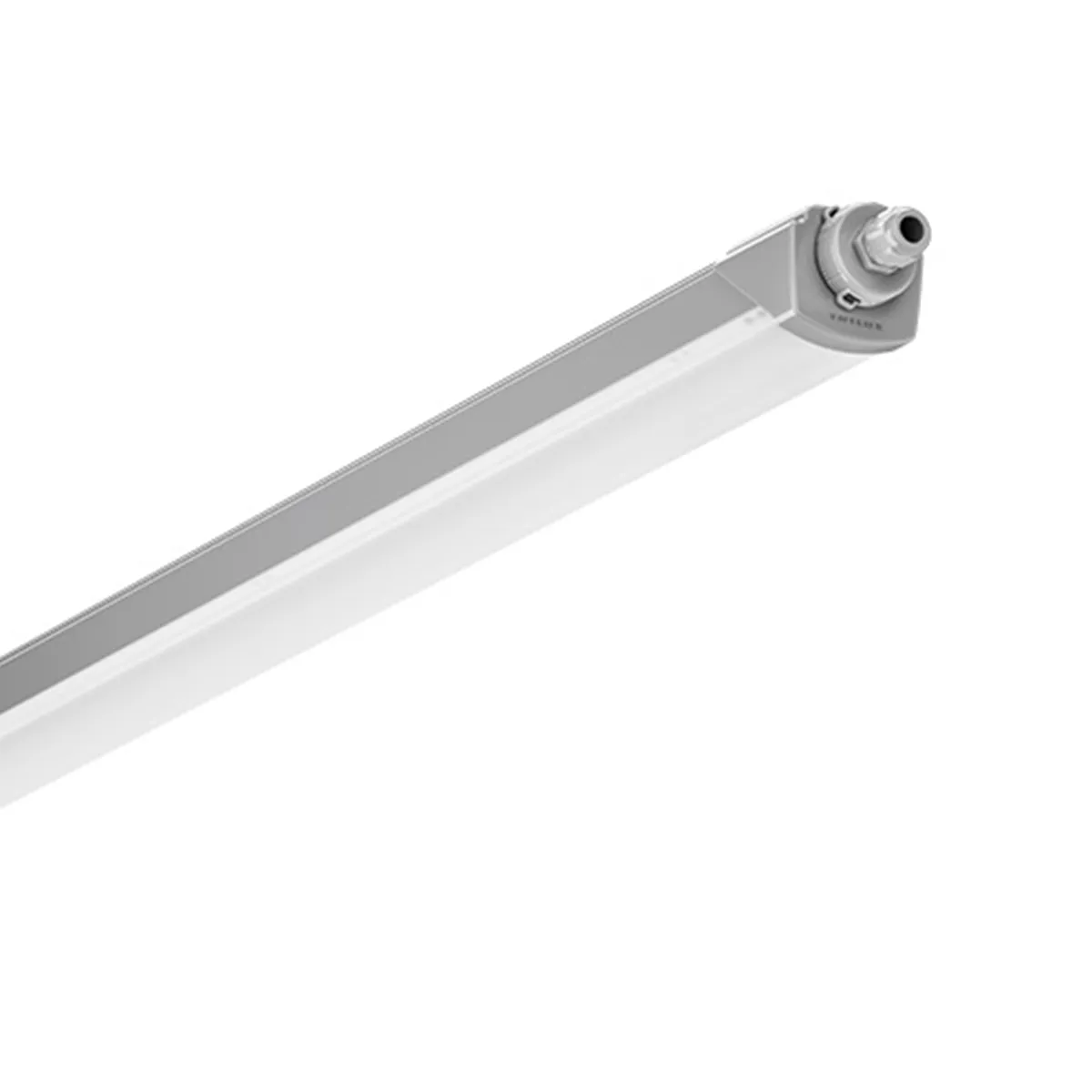

Trilux 2315
2315 G4 LED, Multilumen, Multicolour and adjustable mounting clips make it the ideal 1:1 LED refurbishment solution. It can be surface-mounted to walls and ceilings as well as suspended, is very robust and easy and flexible to install."
Luminaire Type
Description
Damp-proof Indoor Lighting Luminaire
Application Areas
Warehouses, production facilities, parking lots, canopy areas
Mounting Methods
Surface mounted/suspended, for ceiling and wall mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,600lm - 5,600lm, Luminaire luminous flux adjustable in 2 steps, light color adjustable in 2 steps
Connected Load
22W - 48W, Luminaire luminous flux adjustable in 2 steps, light color adjustable in 2 steps
Luminous Efficiency
Energy efficiency up to 117lm/W
Service Life
L70(tq 25 °C) 50,000h
Light Colour
4000K / 6500K, Luminaire luminous flux adjustable in 2 steps, light color adjustable in 2 steps
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / LV (through-wiring)
Optical System
Optics
PC
Light Distribution
Direct Symmetric Light Distribution
Housing
Housing
UV-stabilised polycarbonate (RAL 9016)
Housing Options
LxWxH: 1233x60,5x60 mm/1533x60,5x60 mm
Accessories
Mounting Accessories
Certificates - Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (IEC 62262)
Certificates
CE, ENEC
Luminaire Type
Description
Damp-proof Indoor Lighting Luminaire
Application Areas
Warehouses, production facilities, parking lots, canopy areas
Mounting Methods
Surface mounted/suspended, for ceiling and wall mounting
Optical System
Optics
PC
Light Distribution
Direct Symmetric Light Distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,600lm - 5,600lm, Luminaire luminous flux adjustable in 2 steps, light color adjustable in 2 steps
Connected Load
22W - 48W, Luminaire luminous flux adjustable in 2 steps, light color adjustable in 2 steps
Luminous Efficiency
Energy efficiency up to 117lm/W
Service Life
L70(tq 25 °C) 50,000h
Light Colour
4000K / 6500K, Luminaire luminous flux adjustable in 2 steps, light color adjustable in 2 steps
Colour Rendering Index
Ra > 80
Housing
Housing
UV-stabilised polycarbonate (RAL 9016)
Housing Options
LxWxH: 1233x60,5x60 mm/1533x60,5x60 mm
Accessories
Mounting Accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / LV (through-wiring)
Certificates - Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (IEC 62262)
Certificates
CE, ENEC
