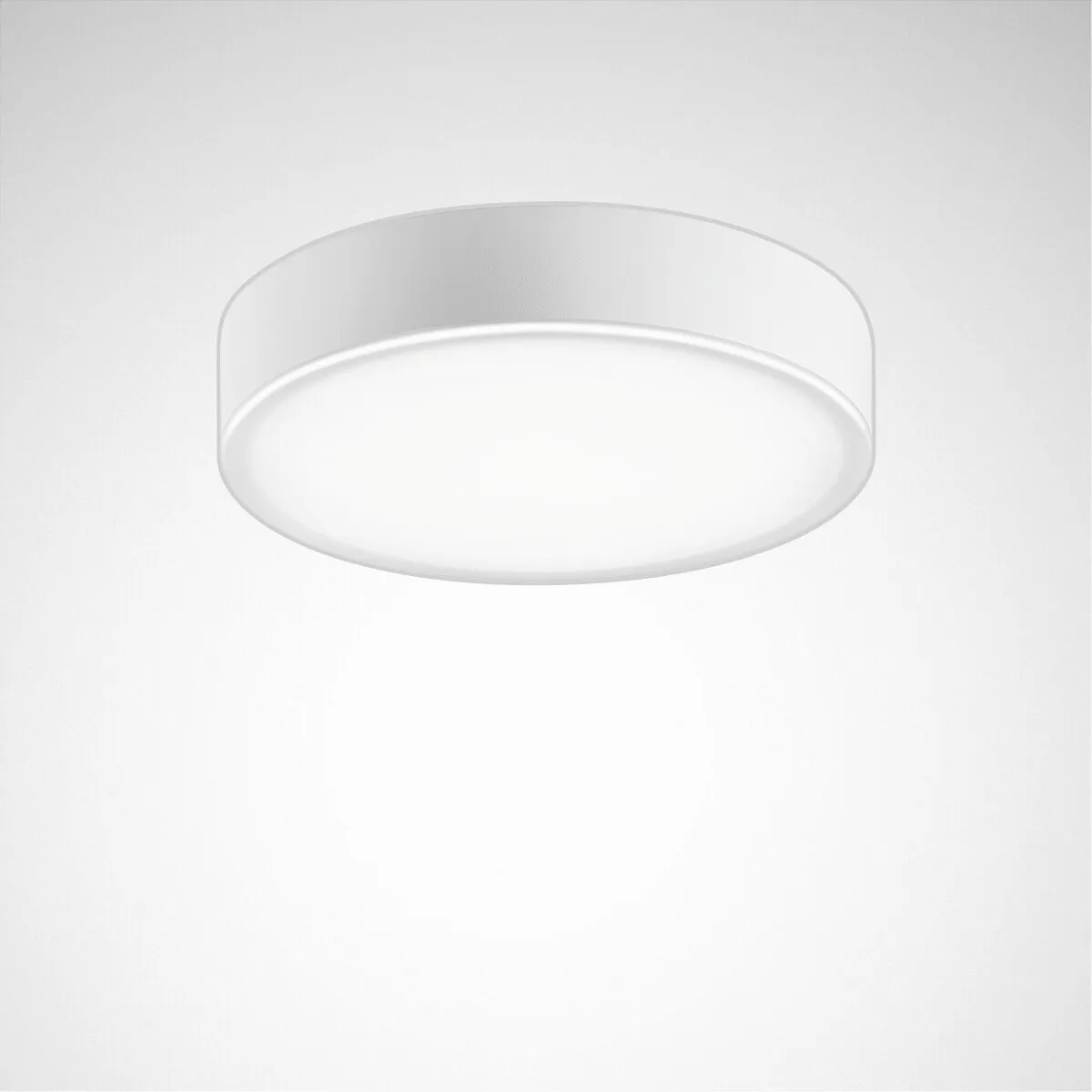

Trilux Onplana
Inplana and Onplana LED downlights are the optimum lighting solution for nearly all office applications. Thanks to their modern, minimalist design these flat downlights blend harmoniously into all styles of architecture and emit planar, glare-free light when mounted on walls and ceilings
Manuals
Luminaire Type
Description
Decorative indoor lighting luminaire
Application Areas
For prestigious general and supplementary lighting with high architectural requirements, such as Exhibition rooms, Banks, Entrance areas, Corridors, Foyers, Restaurants, hotels, Public areas, residential areas
Mounting Methods
Surface Mounted / Recessed / Pendant
Types
Onplana / Inplana | Suitable for ceiling and wall mounting (Surface mounted options)
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,100lm - 5,000lm
Connected Load
9W -39W
Luminous Efficiency
Energy efficiency up to 130lm/W
Service Life
L80(tq 25 °C) = 70,000 h
Light Colour
3000K / 4000K / 2700-6500K Active Tunable
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver) / LiveLink
Optical System
Optics
With primary reflector highly efficient CDP microprismatics, UGR<19 / OTA PMMA
Light Distribution
Direct symmetric light distribution
Housing
Housing
Luminaire body of die-cast aluminium, luminaire body structure-powder coated
Housing Options
Ø234mm / Ø316mm / Ø445mm
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP40 / IP54
Safety Class
Class I
Impact Resistance
IK06
Certificates
CE, ENEC
Luminaire Type
Description
Decorative indoor lighting luminaire
Application Areas
For prestigious general and supplementary lighting with high architectural requirements, such as Exhibition rooms, Banks, Entrance areas, Corridors, Foyers, Restaurants, hotels, Public areas, residential areas
Mounting Methods
Surface Mounted / Recessed / Pendant
Types
Onplana / Inplana | Suitable for ceiling and wall mounting (Surface mounted options)
Optical System
Optics
With primary reflector highly efficient CDP microprismatics, UGR<19 / OTA PMMA
Light Distribution
Direct symmetric light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,100lm - 5,000lm
Connected Load
9W -39W
Luminous Efficiency
Energy efficiency up to 130lm/W
Service Life
L80(tq 25 °C) = 70,000 h
Light Colour
3000K / 4000K / 2700-6500K Active Tunable
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body of die-cast aluminium, luminaire body structure-powder coated
Housing Options
Ø234mm / Ø316mm / Ø445mm
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver) / LiveLink
Certificates - Standards
Protection Rate
IP40 / IP54
Safety Class
Class I
Impact Resistance
IK06
Certificates
CE, ENEC
