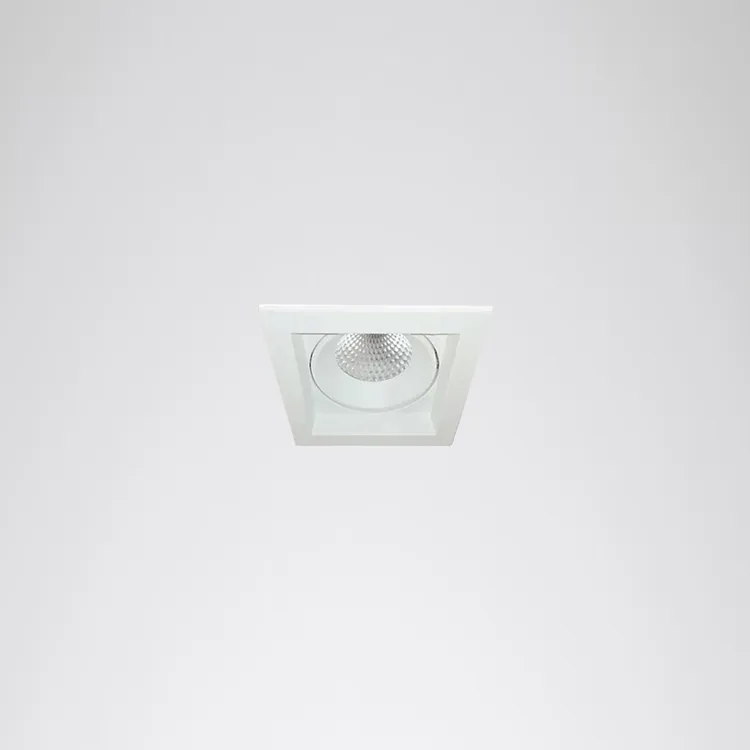

Evo RQ
With its minimalist design and various dimension options, it offers diversity to Indoor Lighting project designs, especially in offices, conference halls, corridors, and lobbies. The options of recessed, surface-mounted, and pendant mounting, along with track-spot models, provide flexibility for your projects.
| Luminaire Type | |
| Description | Indoor Lighting Luminaire |
| Application Areas | Corridors, offices, conference rooms, hotels, restaurants… Indoor Lighting Application Areas |
| Mounting Methods | Recessed |
| Optical System | |
| Optics | PC Lens / Aluminium Reflector / UGR <19 / UGR <22 |
| Light Distribution | Direct Symmetric Light Distribution / Fixed or Adjustable optics options | Narrow/Narrow-Wide/Wide Beam Options, 12°/24°/36° |
| LED System - Light Source | |
| Light Source | LED technology |
| Luminous Flux | 600lm – 2.600lm |
| Connected Load | 5W – 25W |
| Service Life | L80(tq 25 °C) = 50,000h |
| Light Colour | 3000K / 4000K / 6500K |
| Colour Rendering Index | Ra> 80 / Ra> 90 |
| Housing | |
| Housing | Electrostatic Powder Coated Aluminium Housing | RAL9016 white color, frame color options available |
| Housing Options | LxWxH= 100x100x97mm / 150x150x125mm |
| Electrical Version | |
| Electrical Version | Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available |
| Other Options | For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact |
| Certificates - Standards | |
| Protection Rate | IP20 / IP40 / IP44 |
| Safety Class | Class II |
