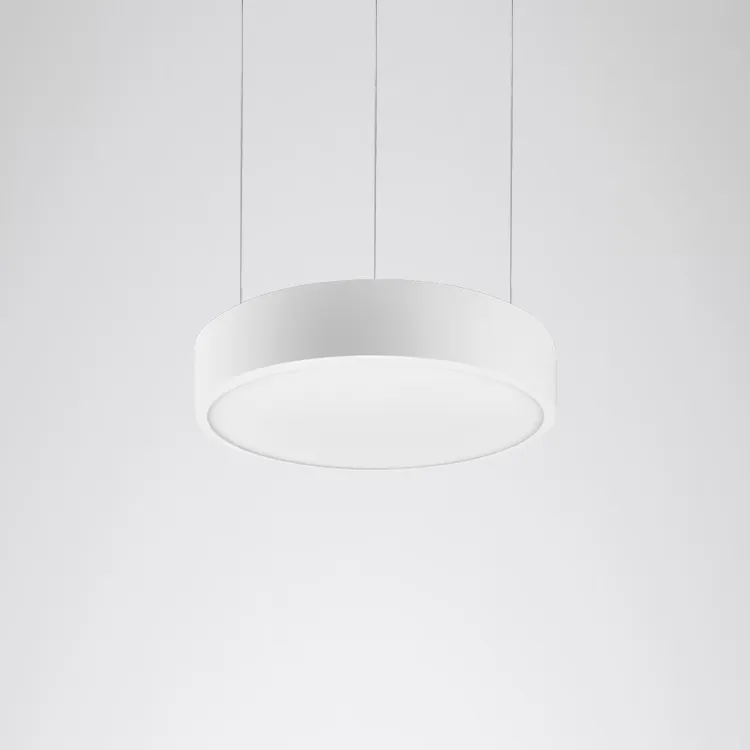

Era P
Ensuring glare-free and uniform lighting with its opal diffuser, it presents a versatile option for Indoor Lighting projects, including offices, conference halls, corridors, and hospitals, thanks to its straightforward design and various dimensional choices.
Luminaire Type
Description
Indoor Lighting Luminaire
Application Areas
Corridors, offices, conference rooms, hotels, restaurants…
Mounting Methods
Pendant (Era P)
Types
R15 | R25 | R40 | R50
LED System - Light Source
Light Source
LED technology
Luminous Flux
900lm – 7,900lm
Connected Load
9W – 75W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
3000K / 4000K / 6500K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Optical System
Optics
UV-resistant and non-yellowing Optics | Opal / Prismatic PMMA (UGR <19
Light Distribution
Direct Symmetric Light Distribution, wide / narrow-wide beam angle
Housing
Housing
Electrostatic Powder Coated Aluminium Housing | RAL9016 white color, frame color options available
Housing Options
ØxH= S15: 150x200 mm (Extruded Aluminum Housing) | S25: 250x100 mm | S40: 450x100 mm | S50: 550x100 mm
Certificates - Standards
Protection Rate
IP40 / IP44 / IP54 / IP65
Safety Class
Class I
Luminaire Type
Description
Indoor Lighting Luminaire
Application Areas
Corridors, offices, conference rooms, hotels, restaurants…
Mounting Methods
Pendant (Era P)
Types
R15 | R25 | R40 | R50
Optical System
Optics
UV-resistant and non-yellowing Optics | Opal / Prismatic PMMA (UGR <19
Light Distribution
Direct Symmetric Light Distribution, wide / narrow-wide beam angle
LED System - Light Source
Light Source
LED technology
Luminous Flux
900lm – 7,900lm
Connected Load
9W – 75W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
3000K / 4000K / 6500K
Colour Rendering Index
Ra > 80
Housing
Housing
Electrostatic Powder Coated Aluminium Housing | RAL9016 white color, frame color options available
Housing Options
ØxH= S15: 150x200 mm (Extruded Aluminum Housing) | S25: 250x100 mm | S40: 450x100 mm | S50: 550x100 mm
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Certificates - Standards
Protection Rate
IP40 / IP44 / IP54 / IP65
Safety Class
Class I
