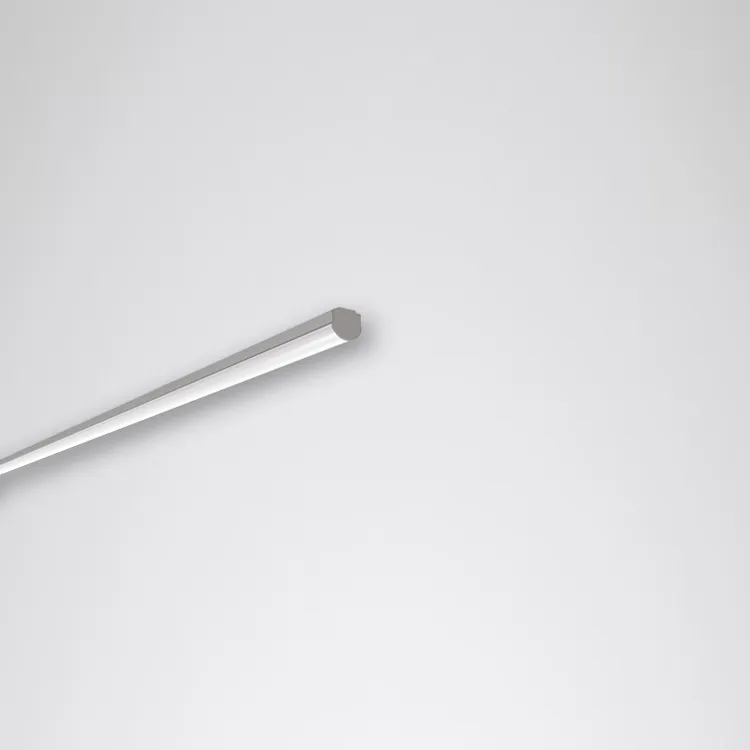

LB01
The LB series stands out with its versatile interior and exterior options, models in various dimensions, and a choice between opal or transparent diffusers. Ideal for decorative designs, it is well-suited for applications such as cove lighting and linear lighting.
Luminaire Type
Description
Indoor - Outdoor Lighting Luminaire – LED Bar
Application Areas
Offices, corridors, facades… Outdoor Lighting Application Areas
Mounting Methods
Surface-mounted
Types
Different Color Options
LED System - Light Source
Light Source
LED technology
Luminous Flux
600lm/mt. – 2,000lm/mt.
Connected Load
6W/mt. – 20W/mt.
Service Life
L80 (tq 25°C) = 50,000hours
Light Colour
2700K / 3000K / 4000K / 6500K / RGB / RGBW / Tunable
Colour Rendering Index
Ra> 80
Electrical Version
Electrical Version
12V / 24V DC External Power Supply | Electronic Control Gear / DALI control gear (digitally dimmable)
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Optical System
Optics
Opal / Transparent diffuser option
Light Distribution
Symmetrical Wide Light Distribution
Housing
Housing
Aluminium Profile Housing
Housing Options
LxWxH: …x17x17mm | Can be produced with different lengths
Certificates - Standards
Protection Rate
IP20 / IP40 / IP44
Safety Class
Class I / Class II
