ETD01

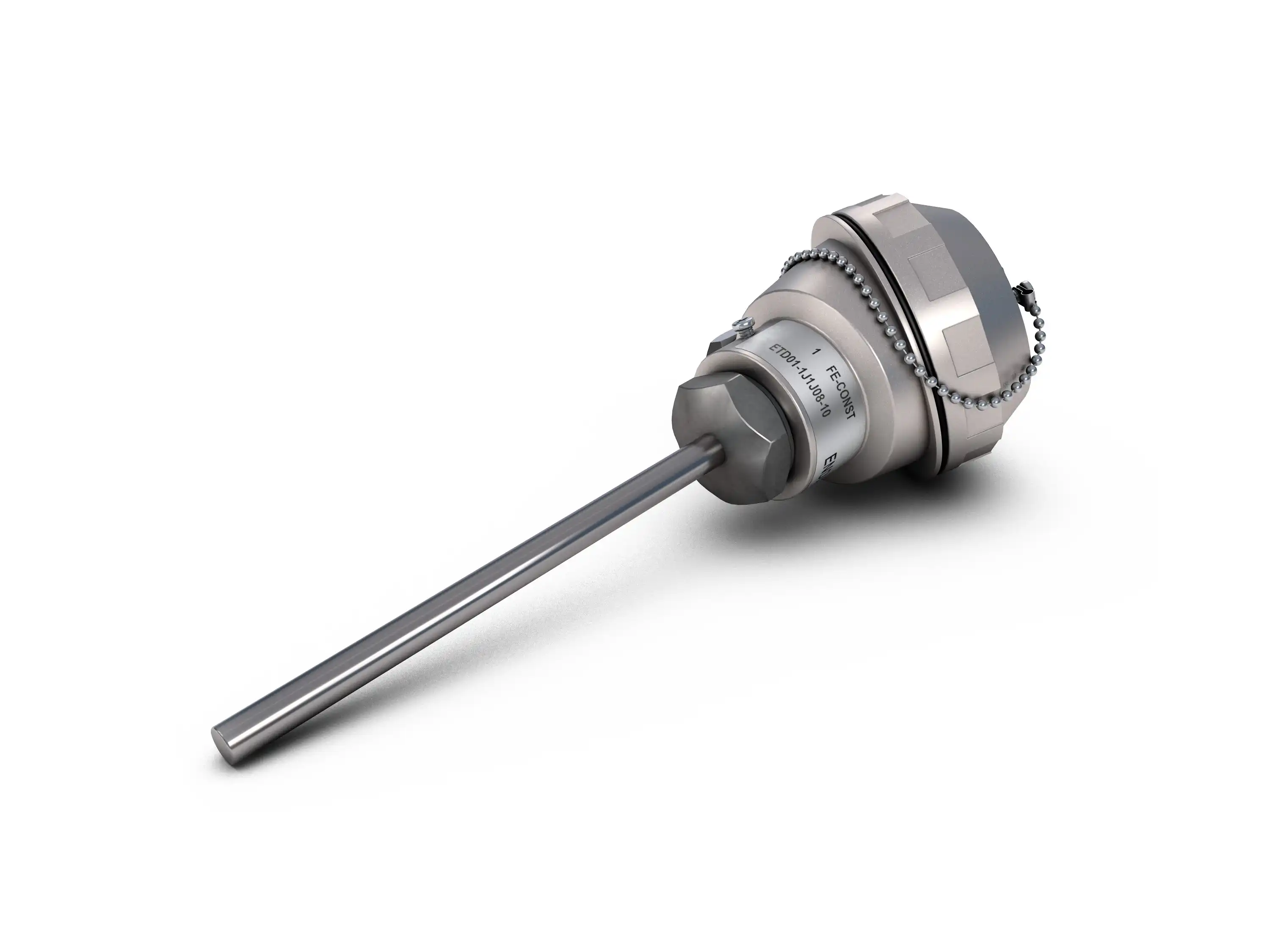

Straight type thermocouple with connection head
Element type, immersion length and diameter is order option
Optional 1/2" thread connection
Electrical Characteristics
Element Type
Fe-Const
Protecting Tube Diameter
8 mm
Number of Element
Single
Process Connection
Screw connection (thread) 1/2" (order option)
Immersion Length (mm)
100, 150, 250, 350, 500
