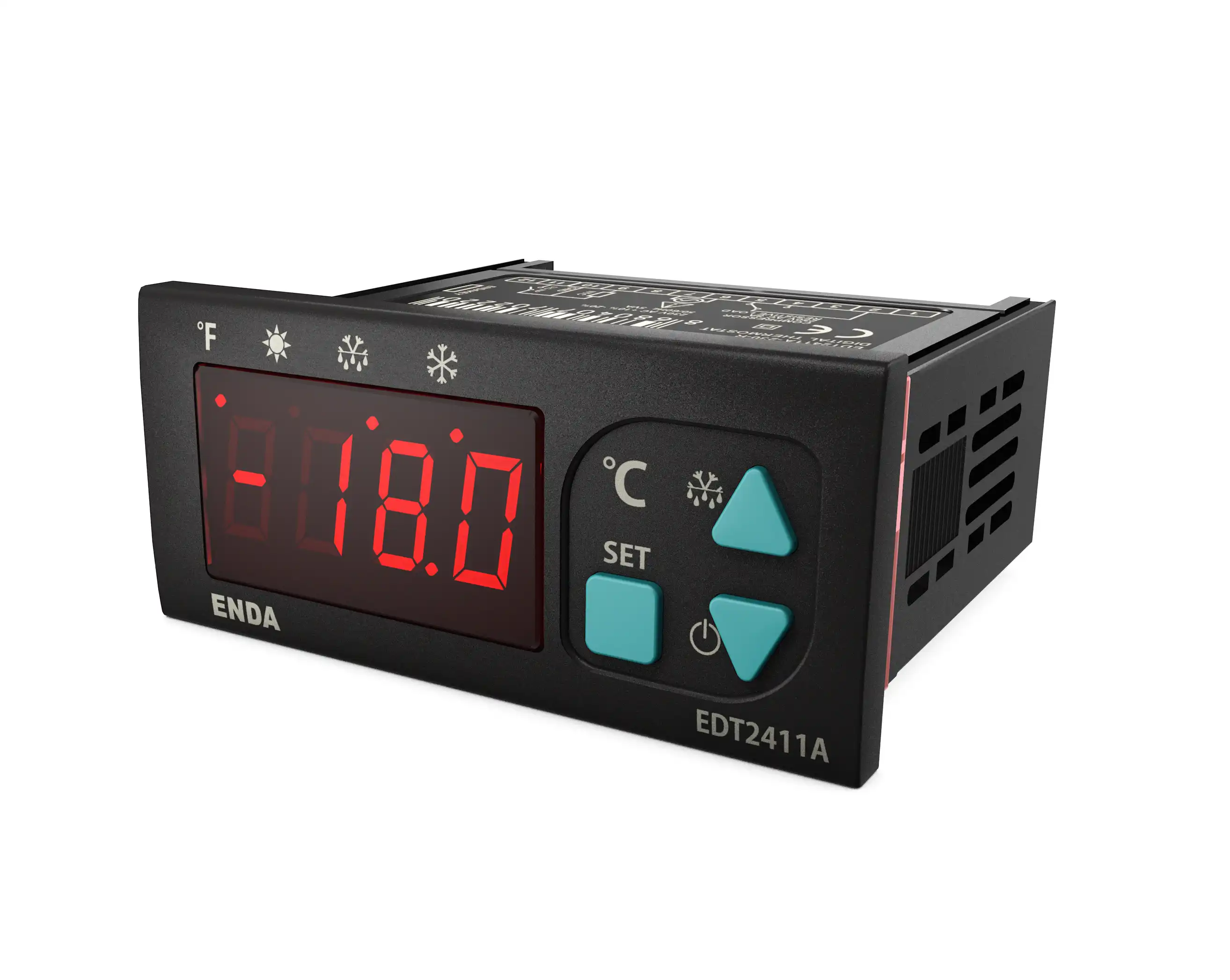

EDT2411A
On-Off control
Relay output for cooling or heating control
Single NTC probe input
Offset value can be adjusted for NTC probe
Compressor protection parameters can be adjusted
In the case of probe failure, output state can be selected as on-off or periodical running
Upper and lower limits of the set point can be adjusted
Selectable “Smart Defrost” feature
Defrosting duration and interval can be adjusted
6 different warning tones
Upper and lower limits of the alarm value can be adjusted depending on the set point value
Temperature unit can be selected as °C or °F
External alarm can be given by using digital input
Defrosting can be started by using digital input
Parameter can be transferred by using “ENDAKEY” without connecting the device to mains supply
Communication feature via RS485 ModBus protocol (order option)
CE marked according to European Norms
Manuals
Downloads
| Environmental Conditions | |
| Ambient/Storage Temperature | 0...50 ºC / -25...70 ºC |
| Relative Humidity | 80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C |
| Protection Degree | According to EN 60529 Front panel:IP65, Rear panel:IP20 |
| Height | Max. 2000m |
| Electrical Characteristics | |
| Supply | 230V AC +%10 -%20 50/60Hz or 10-30V DC / 8-24V AC |
| Power Consumption | 5VA |
| External Connections | Screw-terminals |
| Scale | -60.0...150.0 °C |
| Sensitivity | 0.1 °C (Can be chosen as 0.1 ºC or 1 ºC) |
| Accuracy | ±1 (of full scale) |
| Time accuracy | ±1% |
| Output | |
| Relay | 8A model: NO+NC 250V AC, 8A (for resistive load) 1/2hp 240V AC (for inductive load) 20A model: NO 277V AC, 20A (for resistive load) 2hp 250V AC (for inductive load) |
| Life Expectancy | 8A model: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load) 20A model: Mechanical 10.000.000 operations (under no load), Electrical 100.000 operations (20A at 277V AC, resistive load) |
| Control | |
| Control type | Single set-point |
| Control algorithm | On-Off |
| Hysteresis | Adjustable between 1 and 20.0 °C |
| Housing | |
| Mounting Method | Panel mounting |
| Dimensions | W77xH35xD61 mm |
| Weight | Approx. 190g (After packing) |
| Enclosure Material | Self extinguishing plastics |
