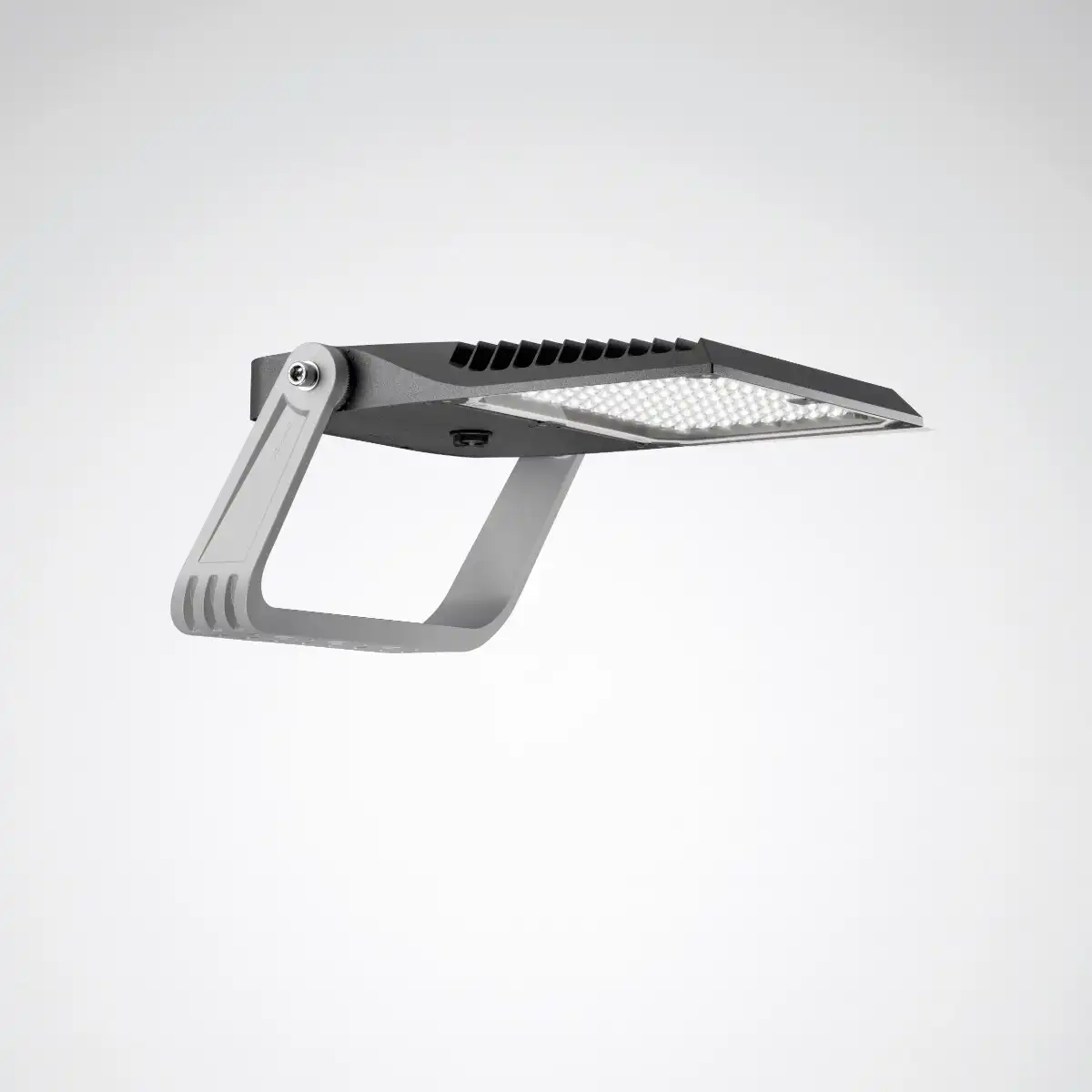

Trilux Lumena Plus 40/60/70
Perfect light for large industrial areas, e.g. parking lots, harbors, shipyards, warehouses, and logistics areas. With its wide range of sizes, beam characteristics, luminous flux packages, and mounting options, the Lumena Plus planar floodlight meets every lighting task with flying colors. Ideally as a smart solution with lighting management, sensor systems and IoT interfaces.
Manuals
Luminaire Type
Description
LED Floodlights
Application Areas
Stadiums, Sports Facilities, Construction Sites, Shipyards, Storage and Container Areas, Power Plants
Mounting Methods
Die-cast aluminium mounting bracket, adjustable and fixable
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,200lm - 75,000lm
Connected Load
24W - 604W
Luminous Efficiency
Up to 163lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70
Electrical Version
Electrical Version
ET / ETDD (DALI) | CLO, 6 kV/10kV | LR / LRA / SLR
Optical System
Optics
Multi-Lens Technology, UV and temperature resistant lens system
Light Distribution
Asymmetrical wide light intensity distribution / Asymmetrical narrow-wide light intensity distribution / Further beam characteristics, MLT version (Multi-Lens Technology) are available
Housing
Housing
Luminaire body and cover support of die-cast aluminium, Anthracite, similar to DB 703
Housing Options
Lumena Plus 40 / Lumena Plus 60 / Lumena Plus 70'
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP66
Safety Class
Class I
Impact Resistance
IK09
Certificates
CE, ENEC | D4i, Zhaga/D4i certified (SLR versions) | DIN 18032-3 ball-impact resistance
Luminaire Type
Description
LED Floodlights
Application Areas
Stadiums, Sports Facilities, Construction Sites, Shipyards, Storage and Container Areas, Power Plants
Mounting Methods
Die-cast aluminium mounting bracket, adjustable and fixable
Optical System
Optics
Multi-Lens Technology, UV and temperature resistant lens system
Light Distribution
Asymmetrical wide light intensity distribution / Asymmetrical narrow-wide light intensity distribution / Further beam characteristics, MLT version (Multi-Lens Technology) are available
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,200lm - 75,000lm
Connected Load
24W - 604W
Luminous Efficiency
Up to 163lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70
Housing
Housing
Luminaire body and cover support of die-cast aluminium, Anthracite, similar to DB 703
Housing Options
Lumena Plus 40 / Lumena Plus 60 / Lumena Plus 70'
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET / ETDD (DALI) | CLO, 6 kV/10kV | LR / LRA / SLR
Certificates - Standards
Protection Rate
IP66
Safety Class
Class I
Impact Resistance
IK09
Certificates
CE, ENEC | D4i, Zhaga/D4i certified (SLR versions) | DIN 18032-3 ball-impact resistance
