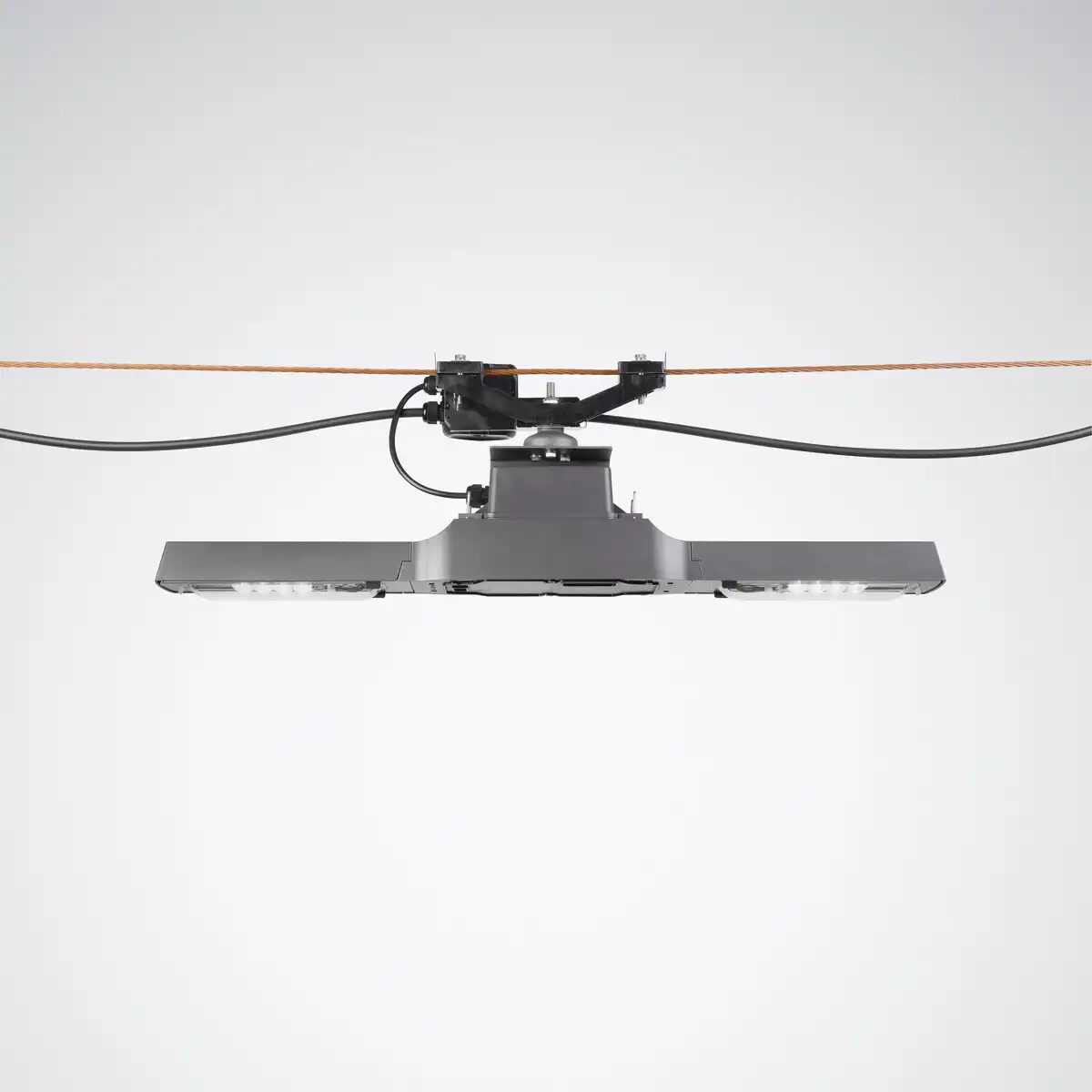

Trilux Viacon H
ViaCon LED from TRILUX emits reliably efficient light on traffic roads and industrial areas to support safety and security outdoors. The smart function also offers a range of smart city functions.
Luminaire Type
Description
LED post-top and bracket-mounted luminaire
Application Areas
Residential roads, Main roads, Traffic roundabouts, Pedestrian crossings
Mounting Methods
LED catenary luminaire
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,600lm - 14,000lm
Connected Load
17W - 86W
Luminous Efficiency
Up to 160lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 70
Electrical Version
Electrical Version
ET / ETDD (DALI) | CLO, 6 kV/10kV | LR / LRA / SLR
Optical System
Optics
Multi-Lens Technology, UV and temperature resistant lens system
Light Distribution
Symmetrical wide light intensity distribution / Further beam characteristics, MLT version (Multi-Lens Technology) are available
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703
Housing Options
ViaCon HQ / ViaCon HL
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP66
Safety Class
Class II
Impact Resistance
IK06
Certificates
CE, ENEC
