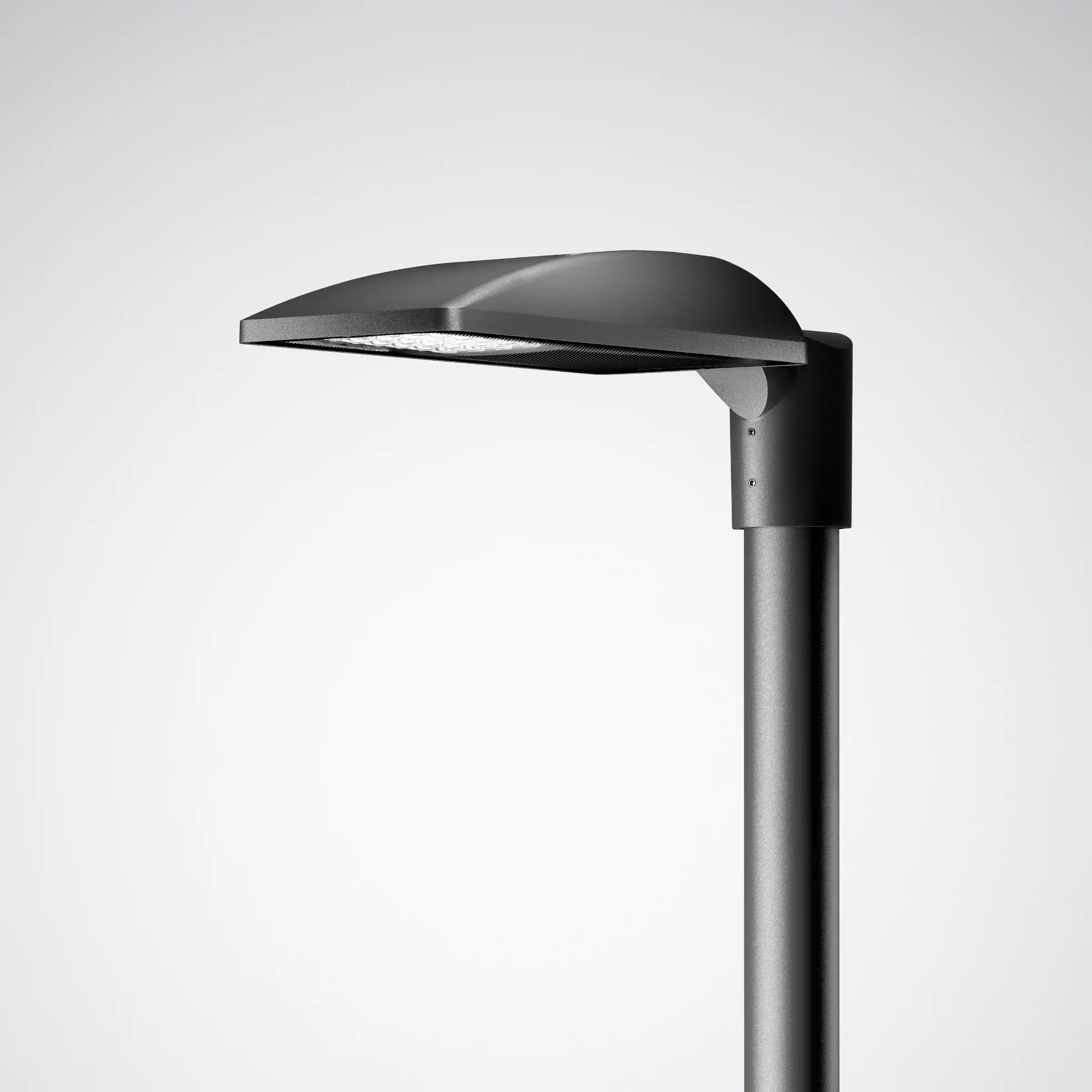

Trilux Jovie

Compare
Trilux Jovie Enda Product
Compare

    Thanks to Multi-Lens Technology (MLTIQ) and various switching variants, Jovie LED can be perfectly adapted to individual project-related requirements, e.g. as a Smart Lighting Ready variant with Zhaga interfaces for a light management system. Also ideal for later retrofitting.

Luminaire Type
Description
LED post-top and bracket-mounted luminaire
Application Areas
Residential roads, Main roads, Traffic roundabouts, Pedestrian crossings, Car parks, Paths in parks and green areas
Mounting Methods
Post-top or bracket-mounted with mounting accessories
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 24,000lm | Multi-Lumen Option (Switch or NFC options)
Connected Load
8W - 182W
Luminous Efficiency
Up to 150lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70
Electrical Version
Electrical Version
ET / ETDD (DALI) | CLO, 6 kV/10kV | The E-block can be removed without tools | LR / LRA / SLR
Optical System
Optics
Multi-Lens Technology, UV and temperature resistant lens system
Light Distribution
Asymmetrical wide light intensity distribution / Asymmetrical medium-wide light intensity distribution / Symmetrical wide light intensity distribution / Optics for Pedestrian Crossing / Further beam characteristics, MLT version (Multi-Lens Technology) are available
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703, further color options and cable lengths options are available
Housing Options
Jovie 50 / Jovie 70
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP66
Safety Class
Class II
Impact Resistance
IK09
Certificates
CE, ENEC
Luminaire Type
Description
LED post-top and bracket-mounted luminaire
Application Areas
Residential roads, Main roads, Traffic roundabouts, Pedestrian crossings, Car parks, Paths in parks and green areas
Mounting Methods
Post-top or bracket-mounted with mounting accessories
Optical System
Optics
Multi-Lens Technology, UV and temperature resistant lens system
Light Distribution
Asymmetrical wide light intensity distribution / Asymmetrical medium-wide light intensity distribution / Symmetrical wide light intensity distribution / Optics for Pedestrian Crossing / Further beam characteristics, MLT version (Multi-Lens Technology) are available
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 24,000lm | Multi-Lumen Option (Switch or NFC options)
Connected Load
8W - 182W
Luminous Efficiency
Up to 150lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703, further color options and cable lengths options are available
Housing Options
Jovie 50 / Jovie 70
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET / ETDD (DALI) | CLO, 6 kV/10kV | The E-block can be removed without tools | LR / LRA / SLR
Certificates - Standards
Protection Rate
IP66
Safety Class
Class II
Impact Resistance
IK09
Certificates
CE, ENEC
