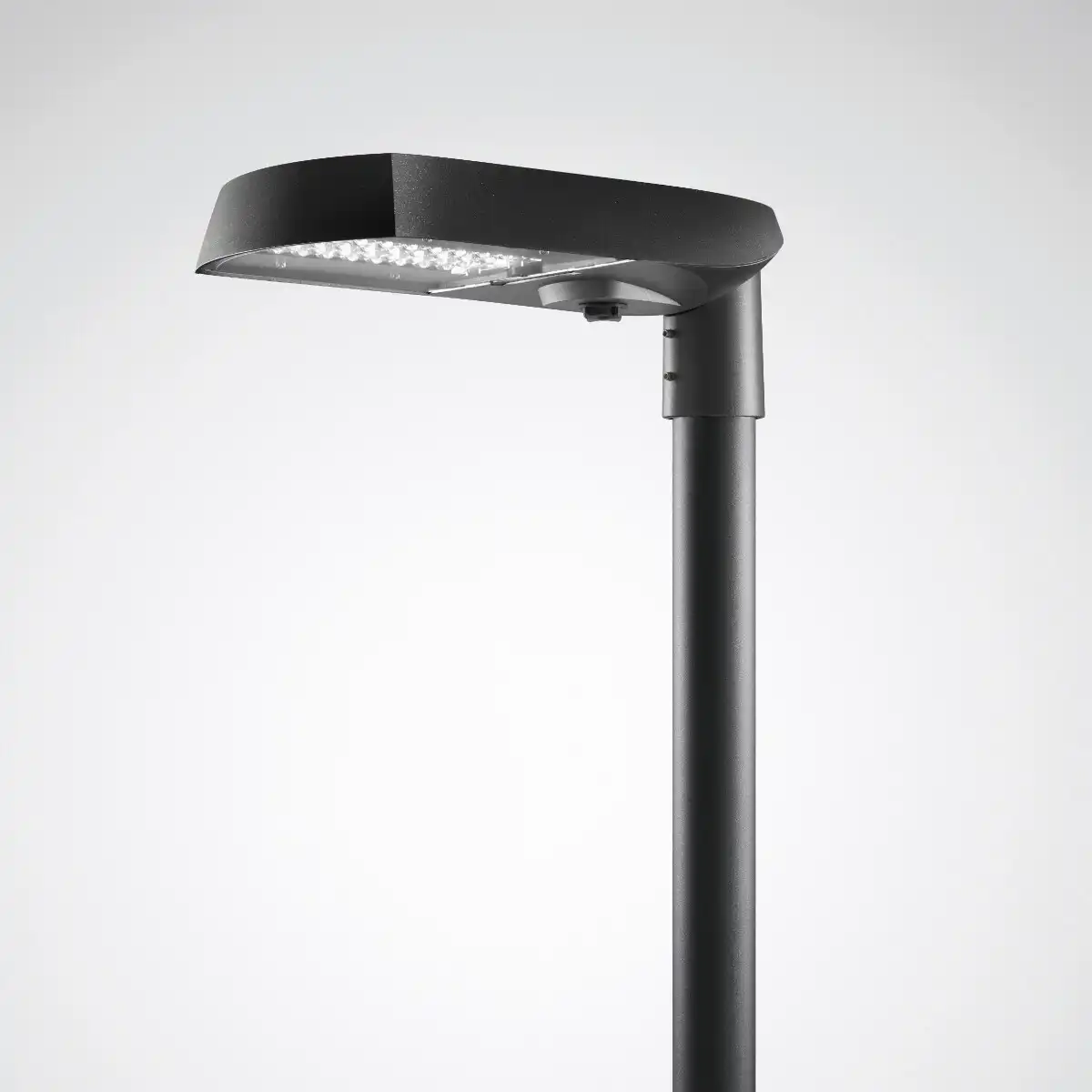

Trilux Cuvia
Cuvia LED is a technical luminaire that meets the current and future requirements and technologies of modern and efficient outdoor luminaires. Its long, maintenance-free service life and low energy consumption ensure efficient and standard-compliant lighting. Rapid mounting rounds off the high economic efficiency of Cuvia LED.
Luminaire Type
Description
LED post-top and bracket-mounted luminaire
Application Areas
Residential roads, Main roads, Traffic roundabouts, Pedestrian crossings, Car parks, Paths in parks and green areas
Mounting Methods
Post-top and bracket-mounted
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 14,000lm | Multi-Lumen Option (Switch or NFC options)
Connected Load
8W - 105W
Luminous Efficiency
Up to 150lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70
Electrical Version
Electrical Version
ET / ETDD (DALI) | CLO, 6 kV/10kV | LR / LRA / SLR
Optical System
Optics
Multi-Lens Technology, UV and temperature resistant lens system
Light Distribution
Asymmetrical wide light intensity distribution / Further beam characteristics, MLT version (Multi-Lens Technology) are available
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703, Inclination angle for post-top mounting 0°, 10°, for bracket mounting -10°, 0° adjustable
Housing Options
Cuvia 40 / Cuvia 60
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP66
Safety Class
Class II
Impact Resistance
IK09
Certificates
CE, ENEC | D4i, Zhaga/D4i certified (SLR versions)
