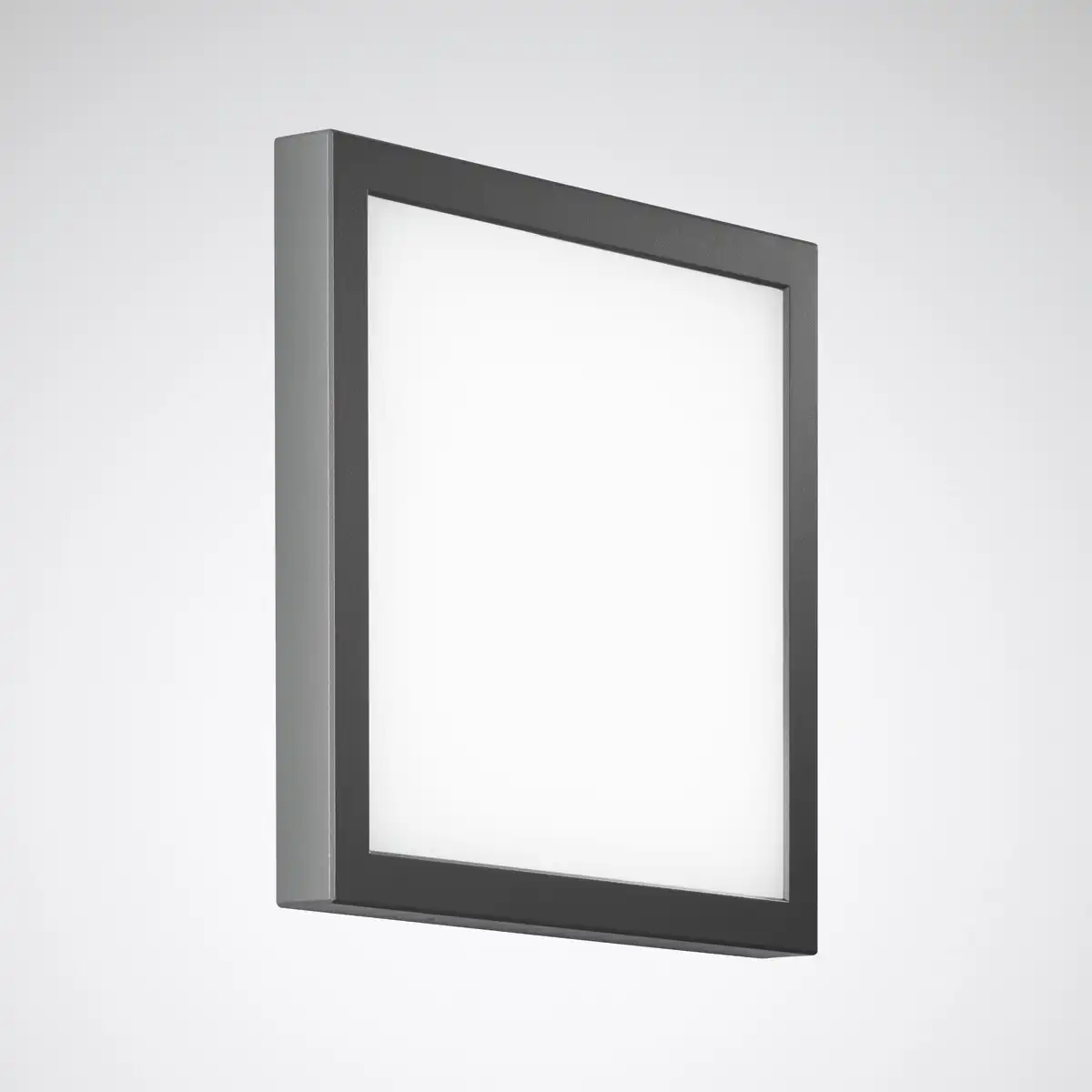

Trilux Skeo Square
A strong solution for areas close to buildings- The Skeo Square surface-mounted wall and ceiling luminaire combines high-quality planar light with a timelessly elegant design and robust construction. Clever features such as Multi-Lumen and Multi-Color simplify planning and installation and offer more flexibility in case of changes for future-proof operation
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, canopies, balconies
Mounting Methods
Surface mounted, suitable for ceiling and wall mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 1,800lm | Luminaire luminous flux adjustable in 3 levels
Connected Load
9W - 18W
Luminous Efficiency
Up to 110lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
3000K / 4000K | light color adjustable in 2 levels
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET / ETDD (DALI) | HFS Sensor option
Optical System
Optics
Opal PMMA diffuser
Light Distribution
Symmetrical wide light distribution
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703
Housing Options
WD1 260x260mm / WD2 402x402mm
Accessories
Mounting accessories | House number labelling accessory
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK10
Certificates
CE, ENEC
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, canopies, balconies
Mounting Methods
Surface mounted, suitable for ceiling and wall mounting
Optical System
Optics
Opal PMMA diffuser
Light Distribution
Symmetrical wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 1,800lm | Luminaire luminous flux adjustable in 3 levels
Connected Load
9W - 18W
Luminous Efficiency
Up to 110lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
3000K / 4000K | light color adjustable in 2 levels
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703
Housing Options
WD1 260x260mm / WD2 402x402mm
Accessories
Mounting accessories | House number labelling accessory
Electrical Version
Electrical Version
ET / ETDD (DALI) | HFS Sensor option
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK10
Certificates
CE, ENEC
