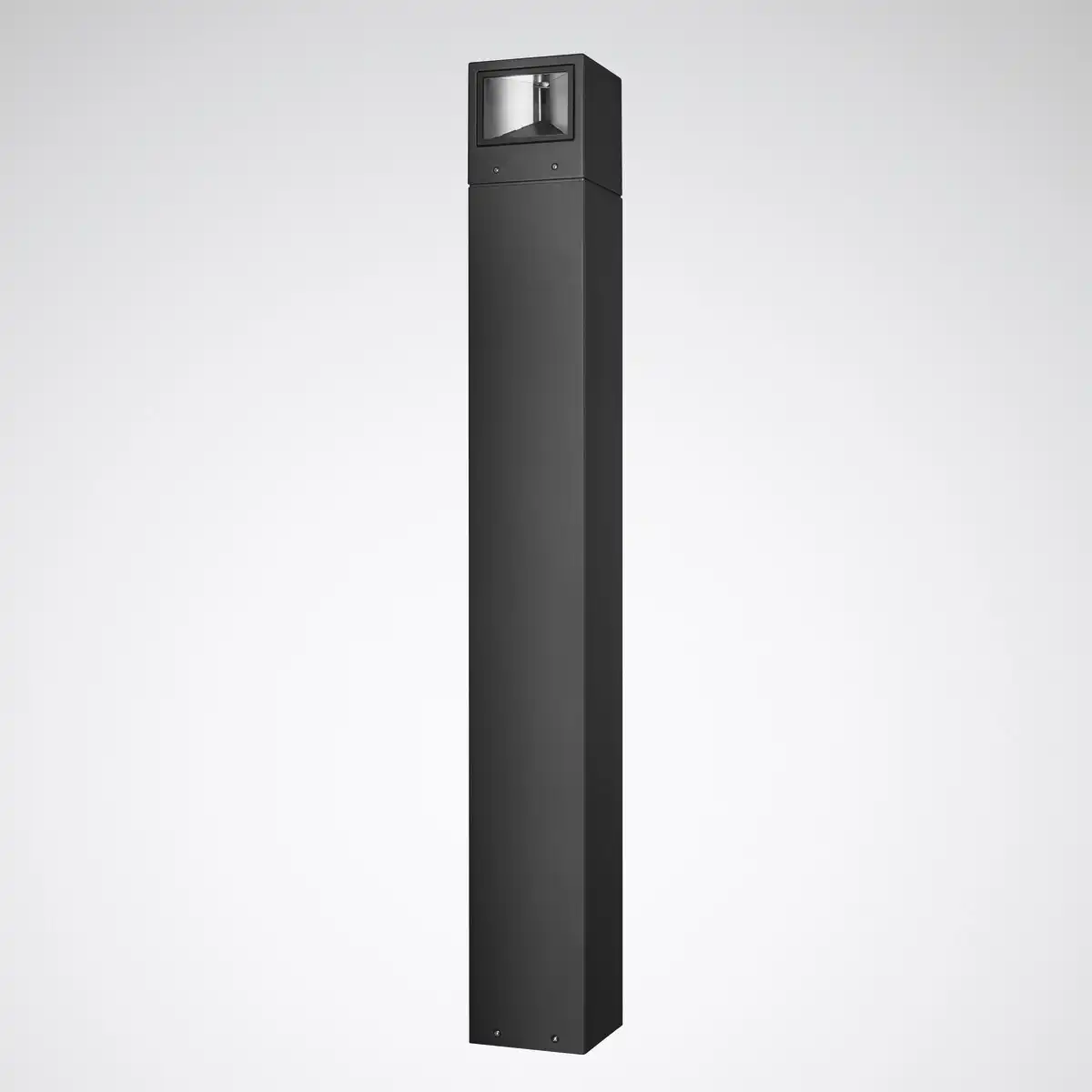

Trilux Skeo Q B
With the diverse Skeo Q LED range of luminaires the complete sector of light around the building can be carried out with a uniform design, ranging from facades to paths and entrances. The luminaires feature not only a linear design but also excellent lighting technology.
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
For decorative, accentuating lighting solutions in outdoor areas, for building access areas, facades. Can also be used holistically inside buildings'
Mounting Methods
Bollard Type
LED System - Light Source
Light Source
LED technology
Luminous Flux
300lm - 700lm
Connected Load
6W - 8W
Luminous Efficiency
Up to 80lm/W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 70
Electrical Version
Electrical Version
ET
Optical System
Optics
Reflector optics / Cover of transparent glass
Light Distribution
One-sided light output / Double-sided light output | Asymmetrical medium-wide light intensity distribution
Housing
Housing
Luminaire housing of aluminium profile, end elements of die-cast aluminium, Anthracite, similar to DB 703
Housing Options
150mm / 500mm / 800mm Height Options'
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK07
Certificates
CE, ENEC
