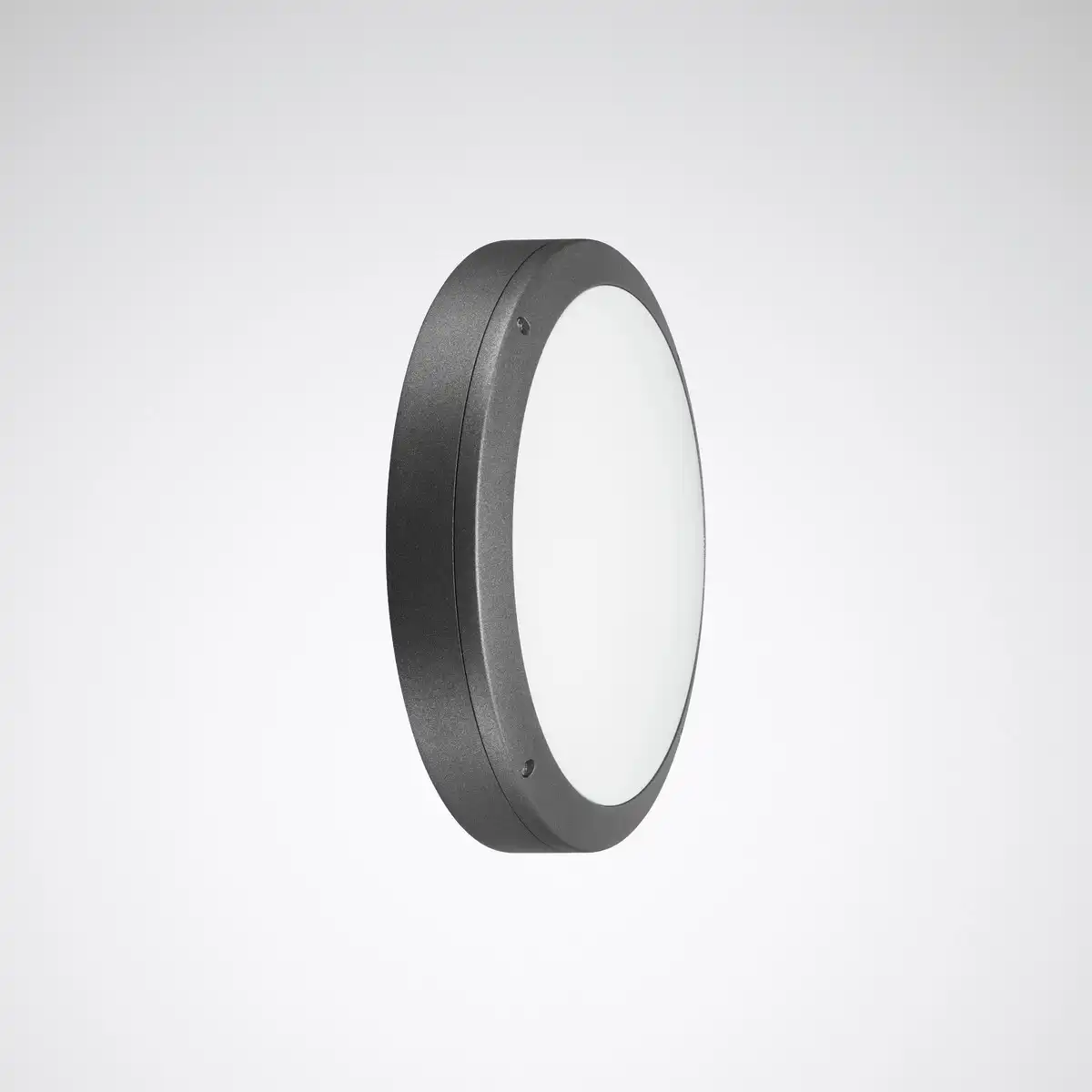

Trilux Skeo Circ
The round Skeo Circ LED provides perfect visual conditions in areas around buildings for attractively displayed facades and entrance areas. Two construction sizes and many covers provide high design flexibility. Luminous flux and light colour can also be flexibly modified retroactively.
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, canopies, balconies
Mounting Methods
Surface mounted, suitable for ceiling and wall mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
900lm - 2,100lm | Luminaire luminous flux adjustable in 3 levels
Connected Load
9W - 20W
Luminous Efficiency
Up to 110lm/W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
3000K / 4000K | light color adjustable in 2 levels
Colour Rendering Index
Ra > 85
Electrical Version
Electrical Version
ET / ETDD (DALI) | HFS Sensor option
Optical System
Optics
Opal PMMA diffuser
Light Distribution
Symmetrical wide light distribution
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703 or RAL 9010 white color option
Housing Options
WD1 Ø265mm / WD2 Ø350mm
Accessories
Mounting accessories | Decorative cover accessories
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK10
Certificates
CE, ENEC
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, canopies, balconies
Mounting Methods
Surface mounted, suitable for ceiling and wall mounting
Optical System
Optics
Opal PMMA diffuser
Light Distribution
Symmetrical wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
900lm - 2,100lm | Luminaire luminous flux adjustable in 3 levels
Connected Load
9W - 20W
Luminous Efficiency
Up to 110lm/W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
3000K / 4000K | light color adjustable in 2 levels
Colour Rendering Index
Ra > 85
Housing
Housing
Luminaire body of die-cast aluminium, Anthracite, similar to DB 703 or RAL 9010 white color option
Housing Options
WD1 Ø265mm / WD2 Ø350mm
Accessories
Mounting accessories | Decorative cover accessories
Electrical Version
Electrical Version
ET / ETDD (DALI) | HFS Sensor option
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK10
Certificates
CE, ENEC
