Trilux Osido
Trilux Osido perfectly illuminates and aesthetically highlights the outdoor areas around the buildings with its different size and light angle options. Wall-mounted OSIDO luminaires stand out in your designs with their high-quality design, superior lighting technology and easy installation.
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, path-ways
Mounting Methods
Surface mounted, suitable for wall mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
500lm - 4,000lm
Connected Load
3.5W - 35W
Luminous Efficiency
Up to 143lm/W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
2700K / 3000K / 4000K / 2200K on request
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer), ETDD (DALI Transformer), Casambi
Emergency light
Optional emergency lighting version with monitoring module for illuminating external escape routes, assembly points
Facial illumination
Optional, a module for the direct component illuminates the faces of passers-by for more safety and well-being on adjacent paths
Optical System
Optics
MLT version (Multi-Lens Technology)
Light Distribution
Direct, direct/indirect, narrow and wide beam options, and adaptable – MLT optics for every task with Customised MLT optics, e.g. for accentuation or asymmetric light for path lighting
Housing
Housing
Luminaire body of aluminium profile, Anthracite similar to DB 703, an intelligent concept: the luminaire housing can be connected to the mounting plate without tools via Plug&Play and with a simple plug connector via Click&Connect

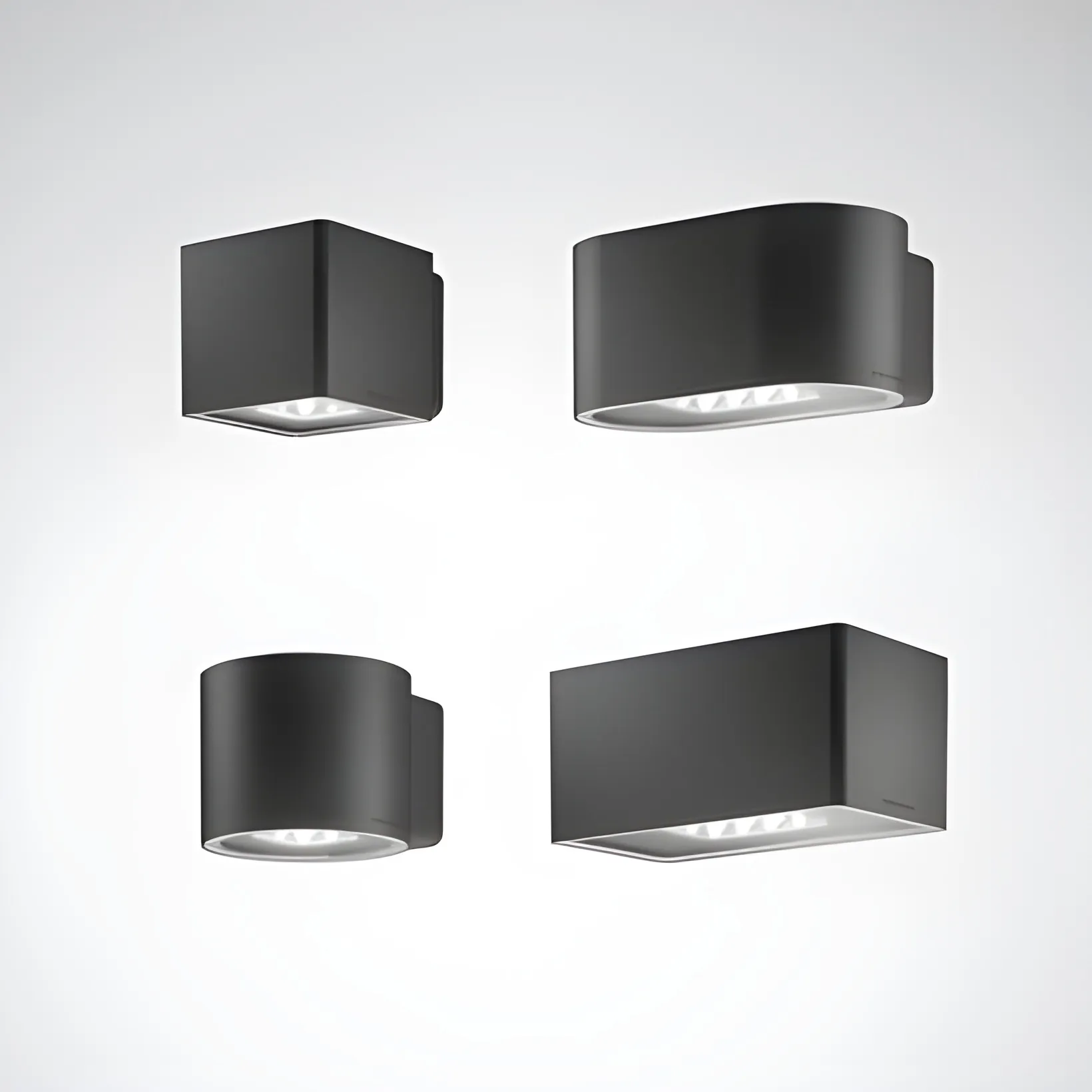

Housing Options
Square Design - Osido QW, LxWxH 154x131x117mm
Rectangular Design – Osido 2QW, LxWxH 154x260x117mm
Round Design – Osido RW, LxWxH 162x147x117mm
Oval Design – Osido 2RW, LxWxH 162x260x117mm
Rectangular Design – Osido 2QW, LxWxH 154x260x117mm
Round Design – Osido RW, LxWxH 162x147x117mm
Oval Design – Osido 2RW, LxWxH 162x260x117mm
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK06
Certificates
CE, ENEC
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, path-ways
Mounting Methods
Surface mounted, suitable for wall mounting
Optical System
Optics
MLT version (Multi-Lens Technology)
Light Distribution
Direct, direct/indirect, narrow and wide beam options, and adaptable – MLT optics for every task with Customised MLT optics, e.g. for accentuation or asymmetric light for path lighting
LED System - Light Source
Light Source
LED technology
Luminous Flux
500lm - 4,000lm
Connected Load
3.5W - 35W
Luminous Efficiency
Up to 143lm/W
Service Life
L80(tq 25 °C) = 50,000h
Light Colour
2700K / 3000K / 4000K / 2200K on request
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body of aluminium profile, Anthracite similar to DB 703, an intelligent concept: the luminaire housing can be connected to the mounting plate without tools via Plug&Play and with a simple plug connector via Click&Connect

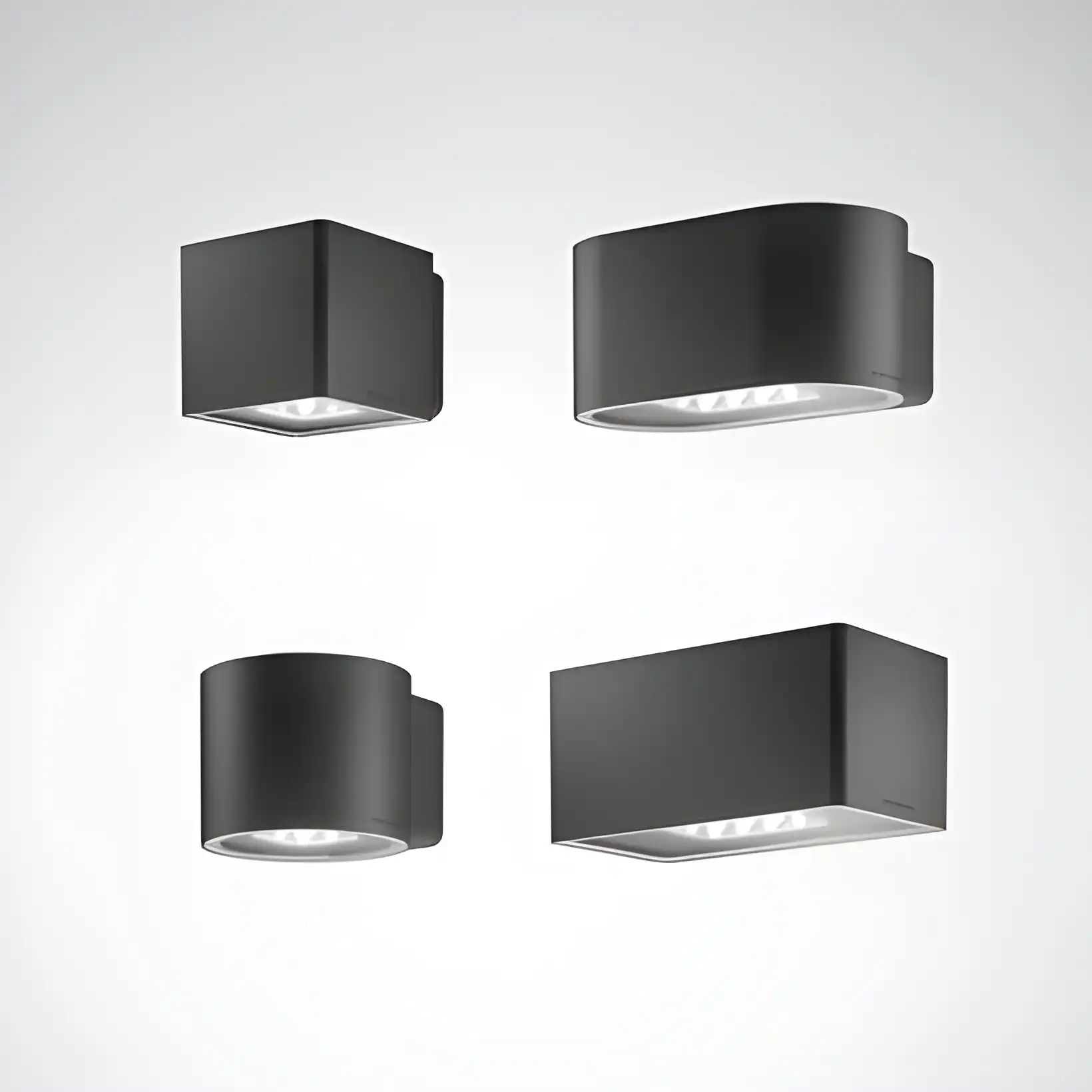

Housing Options
