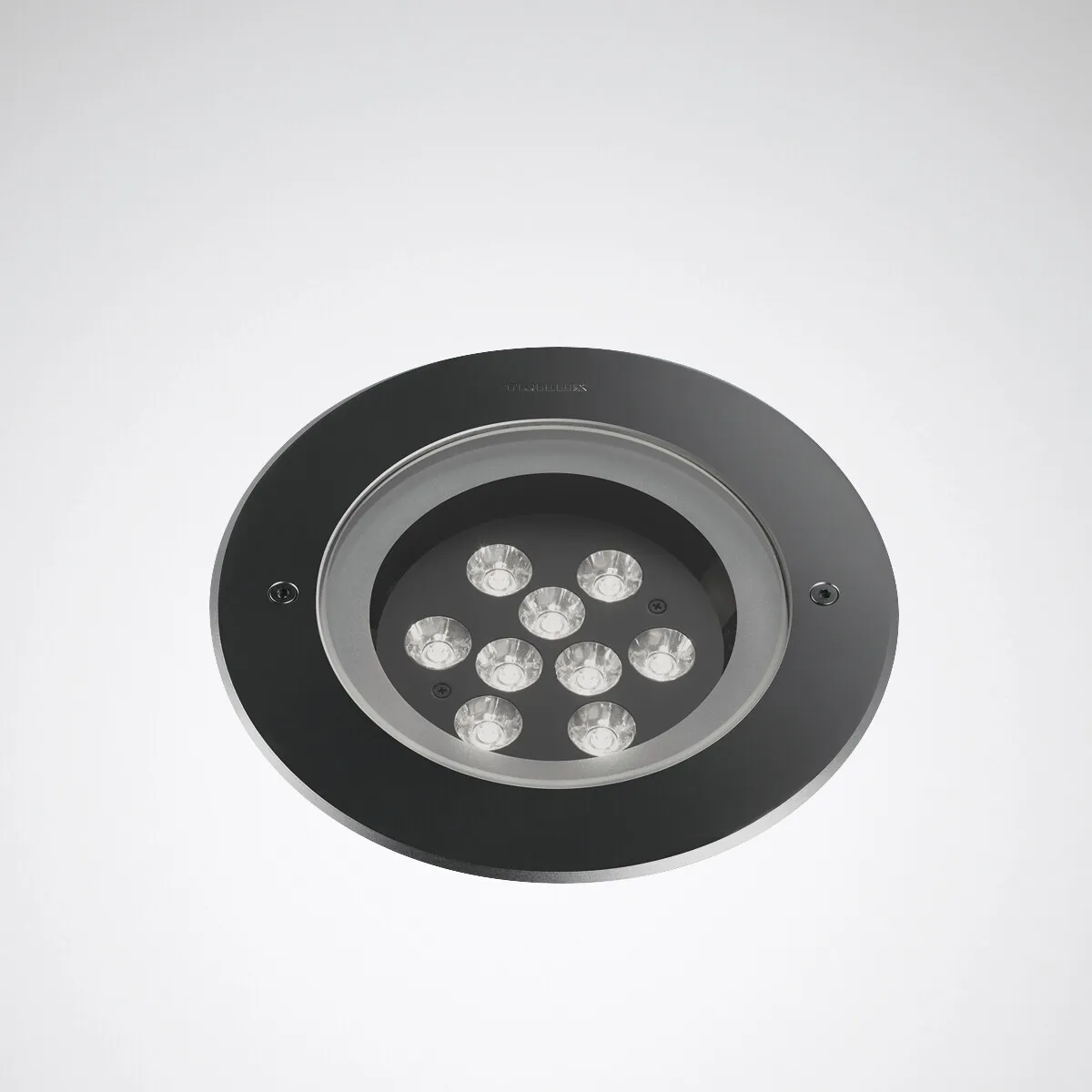

Trilux Lutera
The Lutera LED ground recessed luminaire from TRILUX is a multi-talent for outdoor use. it lends prestigious facades a modern appearance and at the same time provides safety for path zones around buildings. Thanks to high-quality components, the luminaire has a long service life and low maintenance requirements.
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Facades, vicinity lighting, building surfaces, path-ways, accent lighting
Mounting Methods
Ground recessed
LED System - Light Source
Light Source
LED technology
Luminous Flux
120lm - 2,900lm
Connected Load
6W - 26W
Luminous Efficiency
Up to 115lm/W
Service Life
L80(tq 35 °C) = 50,000h
Light Colour
3000K / 4000K / Amber / Blue / Green / Red
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET / ETD (Dimmable with leading edge dimmer)
Optical System
Optics
With anodised aluminium reflector / Lens system / Lutera 100 Pivotable LED system + / - 10 °
Light Distribution
Rotationally symmetrical narrow light distribution / Rotationally symmetrical narrow-wide light distribution / Rotationally symmetrical wide light distribution
Housing
Housing
Luminaire body of die-cast aluminium, stainless steel frame, square or circular frame option, tempered glass cover, can be rolled over at walking pace to 2000 kg
Housing Options
Lutera 90 / Lutera 100 / Lutera 200
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP68
Safety Class
Class I / Class II
Impact Resistance
IK10
Certificates
CE, ENEC
