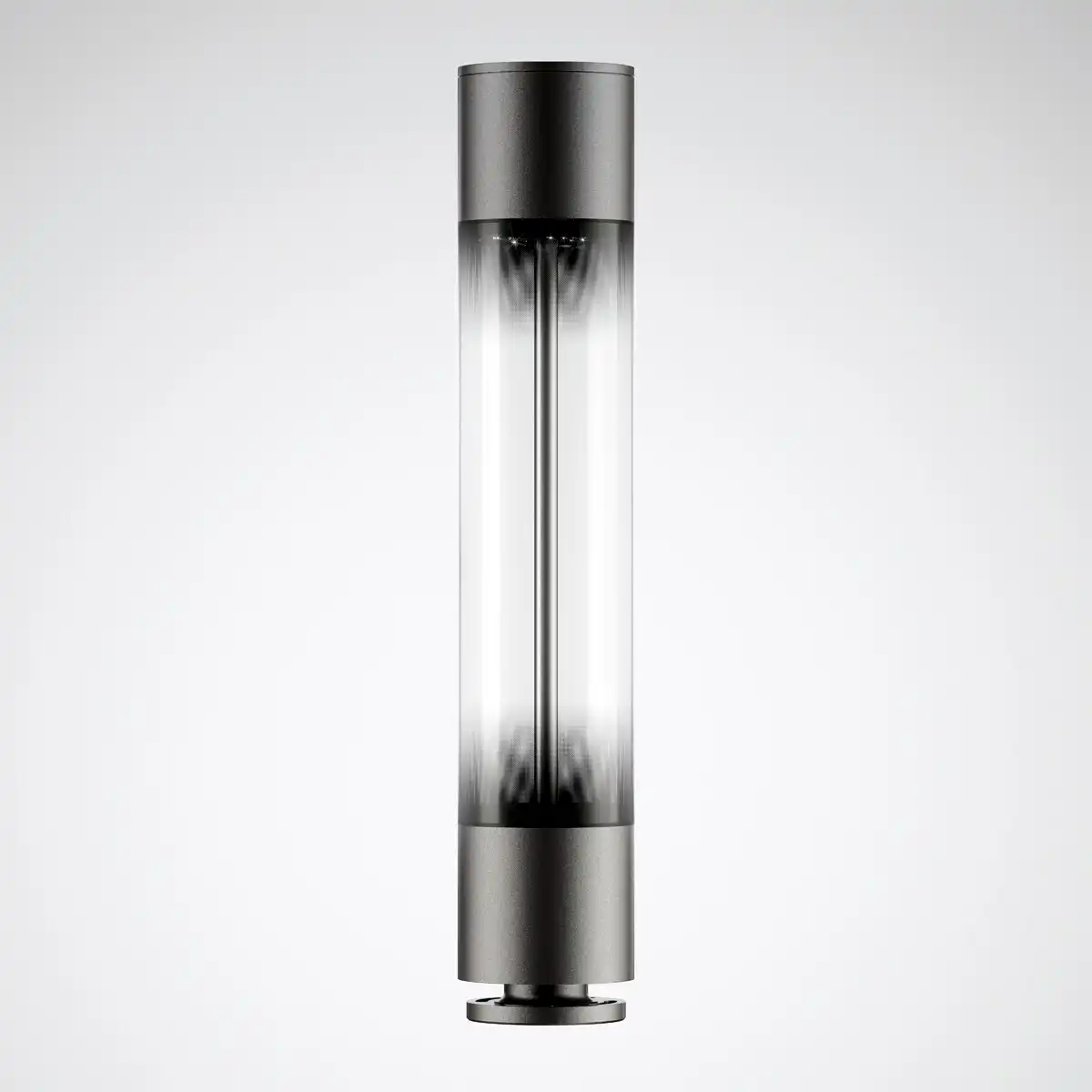

Trilux Constela
With the ConStela floodlight modules TRILUX provides the spot principle for urban lighting, offering lighting designers and city architects more creative freedom for effectively displaying buildings and facades. As a result, highly impressive lighting effects are achieved easily.
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Vicinity lighting, parks and gardens, path-ways
Mounting Methods
Bollard type
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,000lm - 5,100lm
Connected Load
20W - 43W
Luminous Efficiency
Up to 125lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70 / Ra > 95
Electrical Version
Electrical Version
ET / ETDD (DALI) / SLR | 6 kV / 10 kV
Optical System
Optics
MLT version (Multi-Lens Technology), impact resistant PMMA cover / Printed PMMA diffuser / Spot Modules / Smart Modules
Light Distribution
Rotationally symmetrical wide light distribution / Rotationally symmetrical narrow light distribution
Housing
Housing
Luminaire body of aluminium, Anthracite similar to DB 703, RAL color options are available
Housing Options
Ø194mm H 4000-7000mm / Spot Modules and/or Smart Modules, Configurable options
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP65
Safety Class
Class II
Impact Resistance
IK05
Certificates
CE, ENEC
Luminaire Type
Description
Decorative Vicinity Lighting Luminaire
Application Areas
Vicinity lighting, parks and gardens, path-ways
Mounting Methods
Bollard type
Optical System
Optics
MLT version (Multi-Lens Technology), impact resistant PMMA cover / Printed PMMA diffuser / Spot Modules / Smart Modules
Light Distribution
Rotationally symmetrical wide light distribution / Rotationally symmetrical narrow light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,000lm - 5,100lm
Connected Load
20W - 43W
Luminous Efficiency
Up to 125lm/W
Service Life
L80(tq 25 °C) = 100,000h
Light Colour
2200K / 2700K / 3000K / 4000K
Colour Rendering Index
Ra > 70 / Ra > 95
Housing
Housing
Luminaire body of aluminium, Anthracite similar to DB 703, RAL color options are available
Housing Options
Ø194mm H 4000-7000mm / Spot Modules and/or Smart Modules, Configurable options
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET / ETDD (DALI) / SLR | 6 kV / 10 kV
Certificates - Standards
Protection Rate
IP65
Safety Class
Class II
Impact Resistance
IK05
Certificates
CE, ENEC
