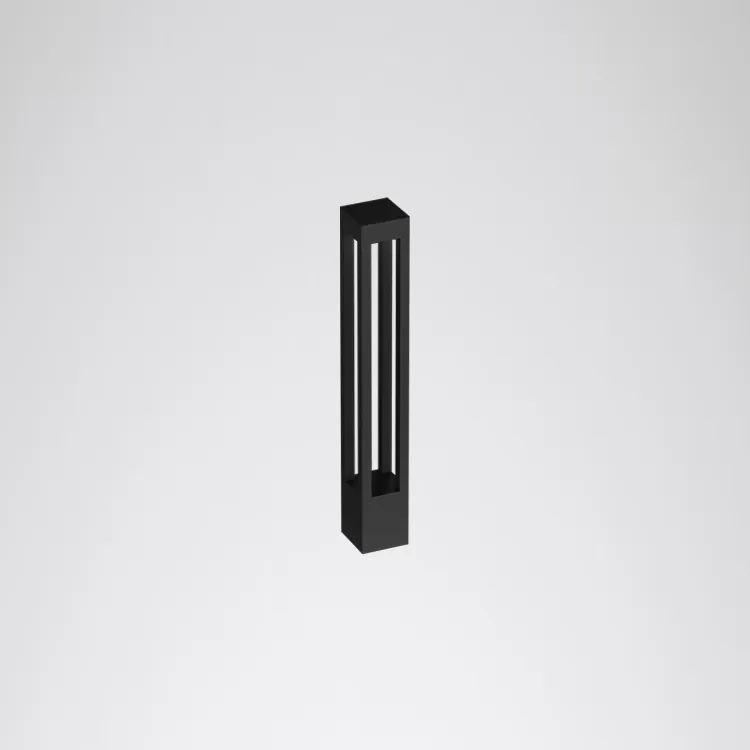

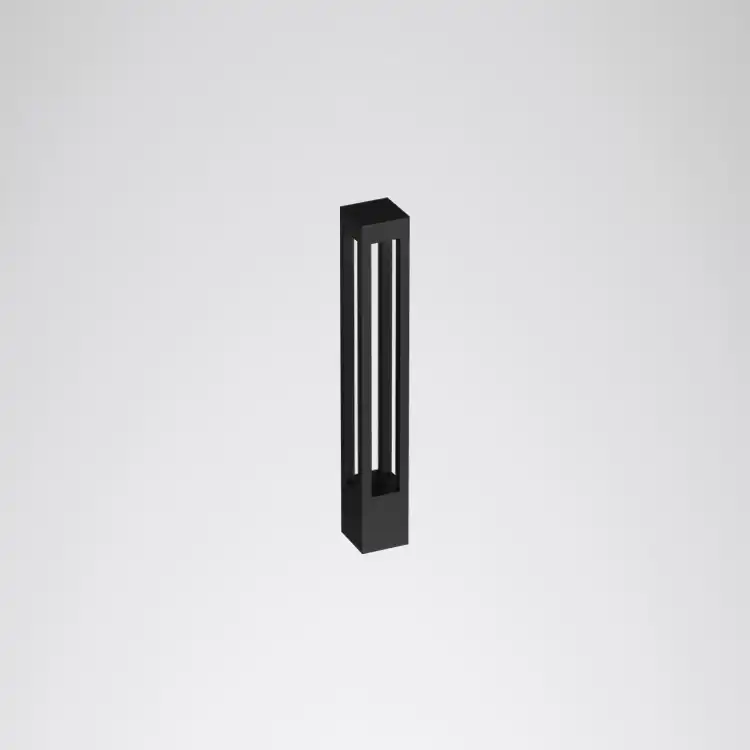

BL100
BL 100/300 is an ideal solution for Vicinity Lighting applications such as parks, gardens, walkways, and building surroundings, with its simple design. Offering different height and power options, housing, and light color choices, along with decorative design options, it provides comfortable lighting.
Luminaire Type
Description
Vicinity Lighting Luminaire
Application Areas
Walking paths, parks and green areas, squares
Mounting Methods
Bollard type
LED System - Light Source
Light Source
LED technology
Luminous Flux
700lm – 2,500lm
Connected Load
8W – 25W
Service Life
L80 (tq 35°C) = 50,000hours
Light Colour
3000K / 4000K / 6500K
Colour Rendering Index
Ra > 70
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable)
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Optical System
Optics
High-transmittance tempered glass diffuser, PMMA lens
Light Distribution
Rotational Symmetrical
Housing
Housing
Electrostatic Powder Coated Aluminium Profile Housing | RAL7016 anthracite gray color, can be produced with different colors
Housing Options
100x100, 150x150mm / H:500-1500mm / Custom lengths are available
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Luminaire Type
Description
Vicinity Lighting Luminaire
Application Areas
Walking paths, parks and green areas, squares
Mounting Methods
Bollard type
Optical System
Optics
High-transmittance tempered glass diffuser, PMMA lens
Light Distribution
Rotational Symmetrical
LED System - Light Source
Light Source
LED technology
Luminous Flux
700lm – 2,500lm
Connected Load
8W – 25W
Service Life
L80 (tq 35°C) = 50,000hours
Light Colour
3000K / 4000K / 6500K
Colour Rendering Index
Ra > 70
Housing
Housing
Electrostatic Powder Coated Aluminium Profile Housing | RAL7016 anthracite gray color, can be produced with different colors
Housing Options
100x100, 150x150mm / H:500-1500mm / Custom lengths are available
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable)
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
