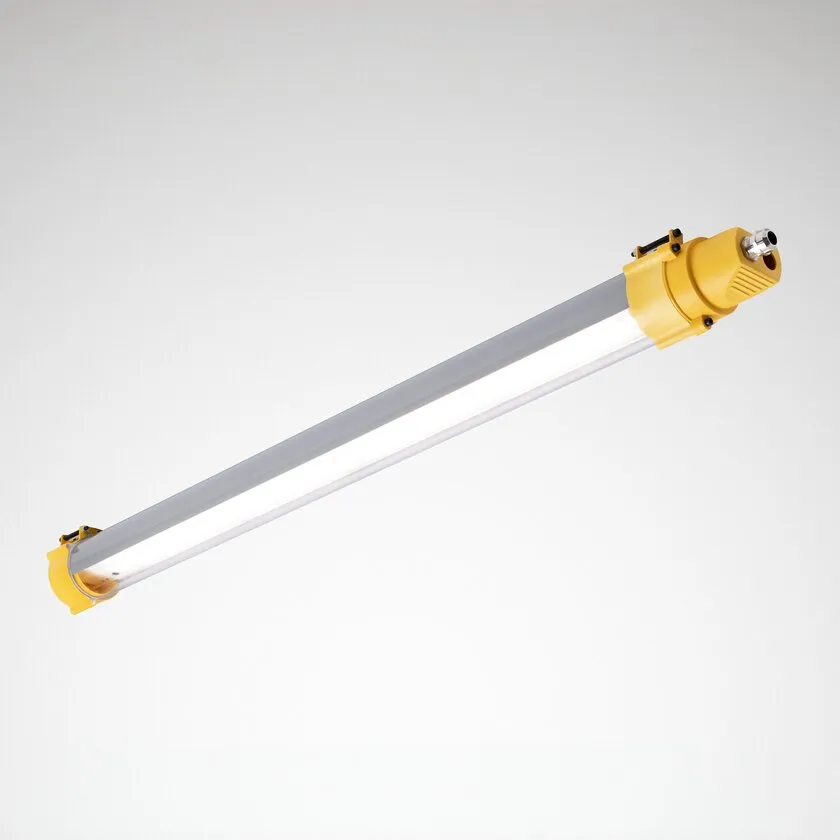

Trilux Strongex G2
Strongex G2 is a robust LED lighting solution designed for hazardous industrial environments, specifically for ATEX Zones 2, 21 and 22. With its durable housing, PMMA diffuser, and wide homogeneous light distribution, it ensures high resistance to impacts and chemical exposure while delivering safe and reliable performance.
Luminaire Type
Description
Explosion-proof weather-proof LED diffuser luminaire
Application Areas
ATEX mark II 2G Ex eb mb IIC T4 Gb / II 2D Ex tb IIIC T85°C Db / -35°C ≤ Ta ≤ +xx°C || ATEX mark II 3G Ex ec IIC T6…T4 Gc / II 3D Ex tc IIIC T85°C Dc / -35°C ≤ Ta ≤ +xx°C.
Mounting Methods
Wall or ceiling mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,500lm - 8,500lm
Connected Load
16W - 53W
Luminous Efficiency
Energy efficiency up to 182lm/W
Service Life
L80(tq 35 °C) 100,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Optical System
Optics
PMMA
Light Distribution
With direct symmetric wide light distribution
Housing
Housing
Made of high-impact PMMA, the endcaps of PA66 and glass fibre (similar to RAL 1003)
Housing Options
LxWxH: 990/1550/1830 x 125 x 138mm
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK10
Certificates
CE, ATEX Ex II 3G Ex ec IIC T5/T6 Gc, ATEX Ex II 3D Ex tc IIIC T85…T100 Dc
Luminaire Type
Description
Explosion-proof weather-proof LED diffuser luminaire
Application Areas
ATEX mark II 2G Ex eb mb IIC T4 Gb / II 2D Ex tb IIIC T85°C Db / -35°C ≤ Ta ≤ +xx°C || ATEX mark II 3G Ex ec IIC T6…T4 Gc / II 3D Ex tc IIIC T85°C Dc / -35°C ≤ Ta ≤ +xx°C.
Mounting Methods
Wall or ceiling mounting
Optical System
Optics
PMMA
Light Distribution
With direct symmetric wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,500lm - 8,500lm
Connected Load
16W - 53W
Luminous Efficiency
Energy efficiency up to 182lm/W
Service Life
L80(tq 35 °C) 100,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Made of high-impact PMMA, the endcaps of PA66 and glass fibre (similar to RAL 1003)
Housing Options
LxWxH: 990/1550/1830 x 125 x 138mm
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK10
Certificates
CE, ATEX Ex II 3G Ex ec IIC T5/T6 Gc, ATEX Ex II 3D Ex tc IIIC T85…T100 Dc
