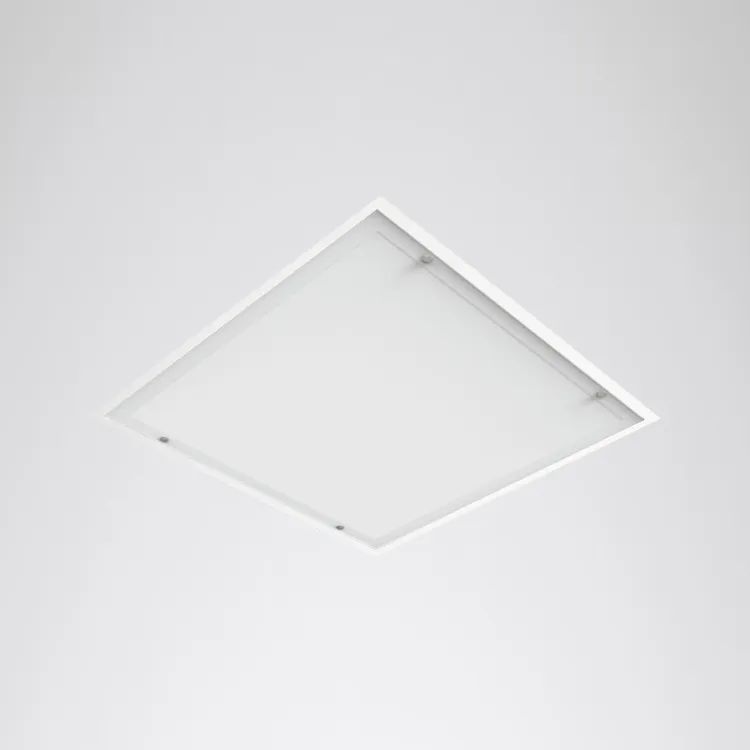

Pena R IP
Providing glare-free and uniform illumination through its prismatic opal diffuser. Featuring a straightforward design and available in various dimensions, it provides versatility for Indoor Lighting projects, particularly in offices, conference halls, corridors, and hospitals.
Luminaire Type
Description
Indoor Lighting Luminaire
Application Areas
Hospitals, industrial facilities, Offices, clean room applications
Mounting Methods
Recessed (Pena R IP), Clip-in / Lay-in / Lay-on options
Types
RIP 02 | RIP 03 | RIP 04
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm – 6,400lm
Connected Load
12W – 53W
Service Life
L80 (tq 25°C) = 50,000hours
Light Colour
2700K / 3000K / 4000K / 6500K / 2700-6500K
Colour Rendering Index
Ra> 80 / Ra> 90
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Optical System
Optics
UV-resistant and non-yellowing Optics | Opal PMMA Diffuser, Transparent glass cover
Light Distribution
Direct Symmetric Light Distribution
Housing
Housing
Electrostatic Powder Coated Sheet Steel Housing | RAL9016 white color, Housing color options available
Housing Options
LxWxH= RIP 02: 295x595x95 mm | RIP 03: 295x1195x95 mm | RIP 04: 595x595x80 mm
Certificates - Standards
Protection Rate
IP54 / IP65
Safety Class
Class I
Luminaire Type
Description
Indoor Lighting Luminaire
Application Areas
Hospitals, industrial facilities, Offices, clean room applications
Mounting Methods
Recessed (Pena R IP), Clip-in / Lay-in / Lay-on options
Types
RIP 02 | RIP 03 | RIP 04
Optical System
Optics
UV-resistant and non-yellowing Optics | Opal PMMA Diffuser, Transparent glass cover
Light Distribution
Direct Symmetric Light Distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm – 6,400lm
Connected Load
12W – 53W
Service Life
L80 (tq 25°C) = 50,000hours
Light Colour
2700K / 3000K / 4000K / 6500K / 2700-6500K
Colour Rendering Index
Ra> 80 / Ra> 90
Housing
Housing
Electrostatic Powder Coated Sheet Steel Housing | RAL9016 white color, Housing color options available
Housing Options
LxWxH= RIP 02: 295x595x95 mm | RIP 03: 295x1195x95 mm | RIP 04: 595x595x80 mm
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Certificates - Standards
Protection Rate
IP54 / IP65
Safety Class
Class I
