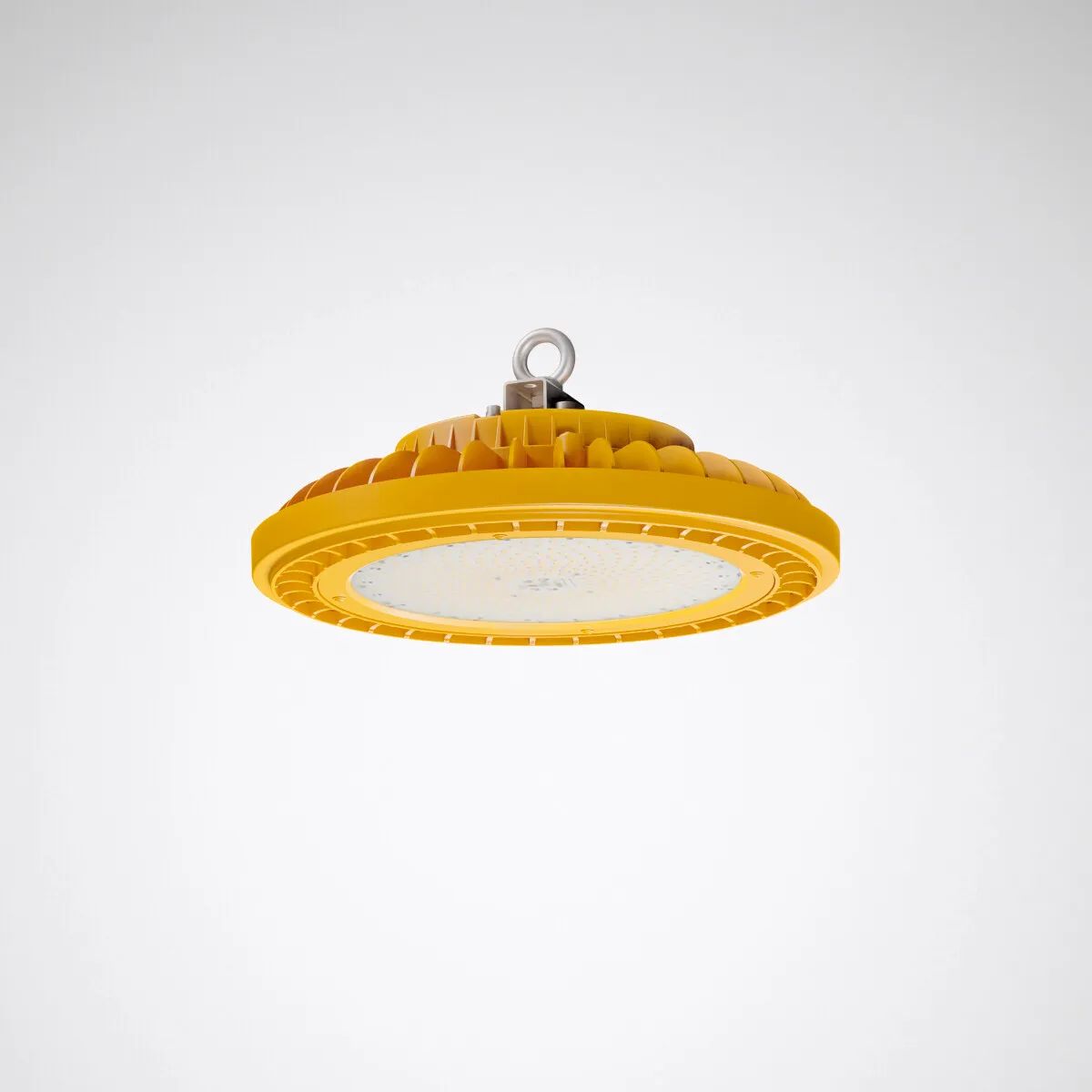

Trilux Orex
Orex LED combines the demands of a powerful high bay luminaire with the requirements of ATEX zones 1 and 2, guaranteeing high resistance under industrial conditions. It features a flexible selection of lumen packages (8,000 lm to 39,500 lm), light colours (3000 K - 6500 K), installation types (wall, post, tube installation, junction box) and much more. Orex LED is DALI-dimmable and suitable for outdoor use.
Luminaire Type
Description
Explosion-proof luminaire
Application Areas
Orex 1 Zone 1/21, Orex 2 Zone 2/21
Mounting Methods
Pendant or bracket mounting, suitable for Wall, ceiling, post and tube installation with mounting accessories
LED System - Light Source
Light Source
LED technology
Luminous Flux
9,000lm - 39,500lm
Connected Load
60W - 270W
Luminous Efficiency
Energy efficiency up to 160lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Optical System
Optics
Tempered glass cover
Light Distribution
With direct symmetric narrow-wide light distribution
Housing
Housing
Luminaire body made of cast aluminium, signal yellow (RAL 1003)
Housing Options
Ø 390mm
Accessories
Mounting accessories / Connection accessories / Wall, ceiling, post and tube installation mounting accessories
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Certificates
CE, Zone 1/21 (ATEX II 2G Ex eb ib mb op is T5 IIC Gb / II 2D Ex tb op is T95°C IIIC Db), Zone 2/21 ( ATEX II 3G Ex ec op is T5…T4 IIC Gc)
Luminaire Type
Description
Explosion-proof luminaire
Application Areas
Orex 1 Zone 1/21, Orex 2 Zone 2/21
Mounting Methods
Pendant or bracket mounting, suitable for Wall, ceiling, post and tube installation with mounting accessories
Optical System
Optics
Tempered glass cover
Light Distribution
With direct symmetric narrow-wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
9,000lm - 39,500lm
Connected Load
60W - 270W
Luminous Efficiency
Energy efficiency up to 160lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body made of cast aluminium, signal yellow (RAL 1003)
Housing Options
Ø 390mm
Accessories
Mounting accessories / Connection accessories / Wall, ceiling, post and tube installation mounting accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Certificates
CE, Zone 1/21 (ATEX II 2G Ex eb ib mb op is T5 IIC Gb / II 2D Ex tb op is T95°C IIIC Db), Zone 2/21 ( ATEX II 3G Ex ec op is T5…T4 IIC Gc)
