Trilux Ondo
The simplest solution to refurbish obsolete, less efficient lighting solutions in industrial halls, distribution halls, warehouses and exhibition halls, Ondo G2 LED is designed for quick 1:1 replacements of metal halide, sodium vapour and mercury vapour solutions. Thanks to the clever single-point suspension, refurbishments are carried out in no time at all. Also dimmable with light management on request.
Luminaire Type
Description

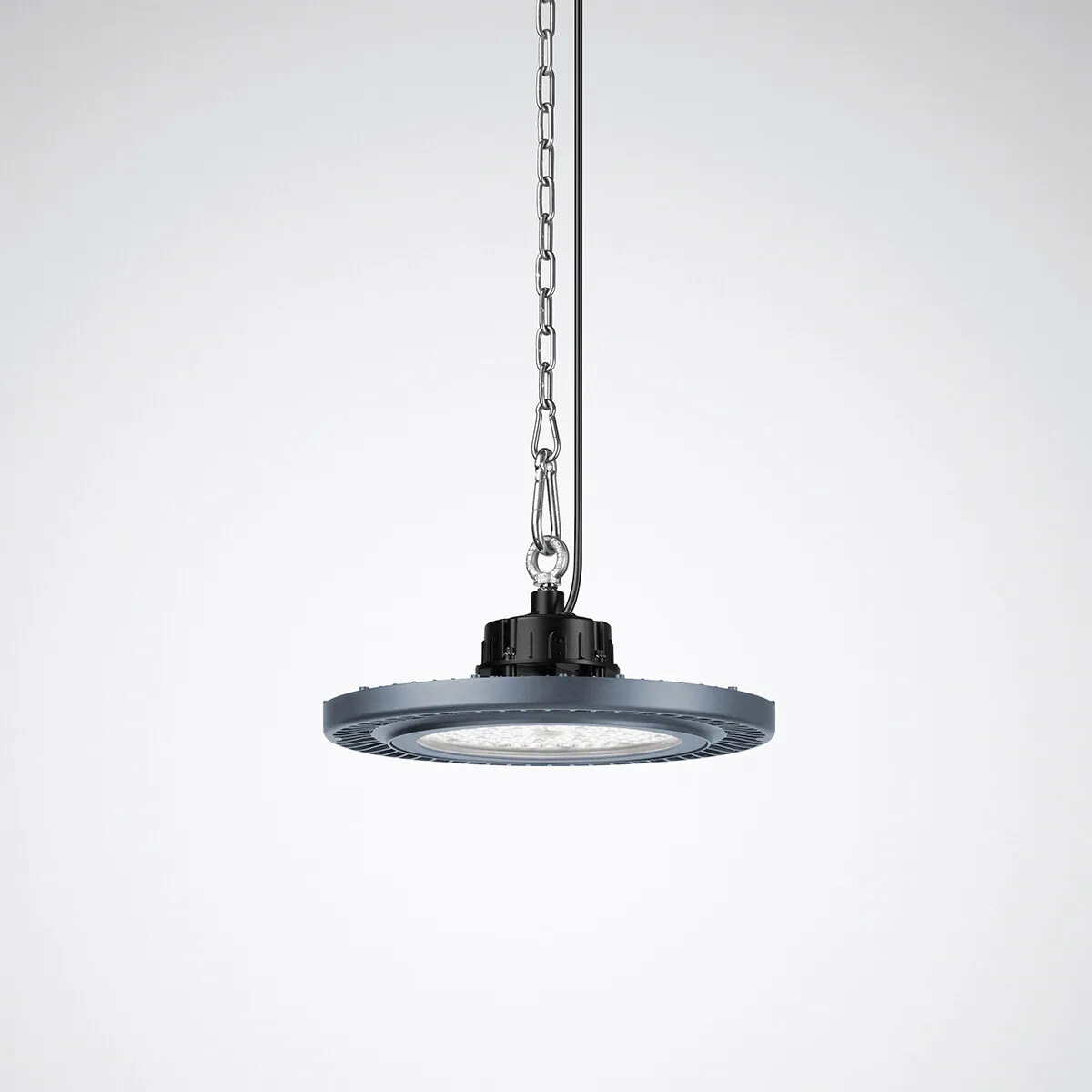

Round wide-area LED high bay luminaire for suspended mounting
Application Areas
High rooms, Halls, Warehouses, Manufacturing halls, damp rooms, Trade fair and exhibition halls
Mounting Methods
Suspended mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
12,800lm - 30,100lm
Connected Load
80W-210W
Luminous Efficiency
Energy efficiency up to 158lm/W
Service Life
L80(tq 25°C) = 50,000h, L70(tq 25°C) = 60,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver)
Optical System
Optics
Optical system with PC lens optic
Light Distribution
Direct symmetric narrow-wide light distribution
Housing
Housing
Robust die-cast body with integrated cooling ribs and thermally separated control gear boxes, Colour of luminaire body: gray (RAL 7015)
Housing Options
Ø360mm / Ø405mm
Accessories
Suspension accessories
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK08 (IEC 62262) / Mirona Fit-SPO ball-proof type; all-impact-resistance according to DIN 18032-3
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
Luminaire Type
Description
Round wide-area LED high bay luminaire for suspended mounting
Application Areas
High rooms, Halls, Warehouses, Manufacturing halls, damp rooms, Trade fair and exhibition halls
Mounting Methods
Suspended mounting
Optical System
Optics
Optical system with PC lens optic
Light Distribution
Direct symmetric narrow-wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
12,800lm - 30,100lm
Connected Load
80W-210W
Luminous Efficiency
Energy efficiency up to 158lm/W
Service Life
L80(tq 25°C) = 50,000h, L70(tq 25°C) = 60,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Robust die-cast body with integrated cooling ribs and thermally separated control gear boxes, Colour of luminaire body: gray (RAL 7015)
Housing Options
Ø360mm / Ø405mm
Accessories
Suspension accessories
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver)
Certificates - Standards
Protection Rate
IP65
Safety Class
Class I
Impact Resistance
IK08 (IEC 62262) / Mirona Fit-SPO ball-proof type; all-impact-resistance according to DIN 18032-3
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
