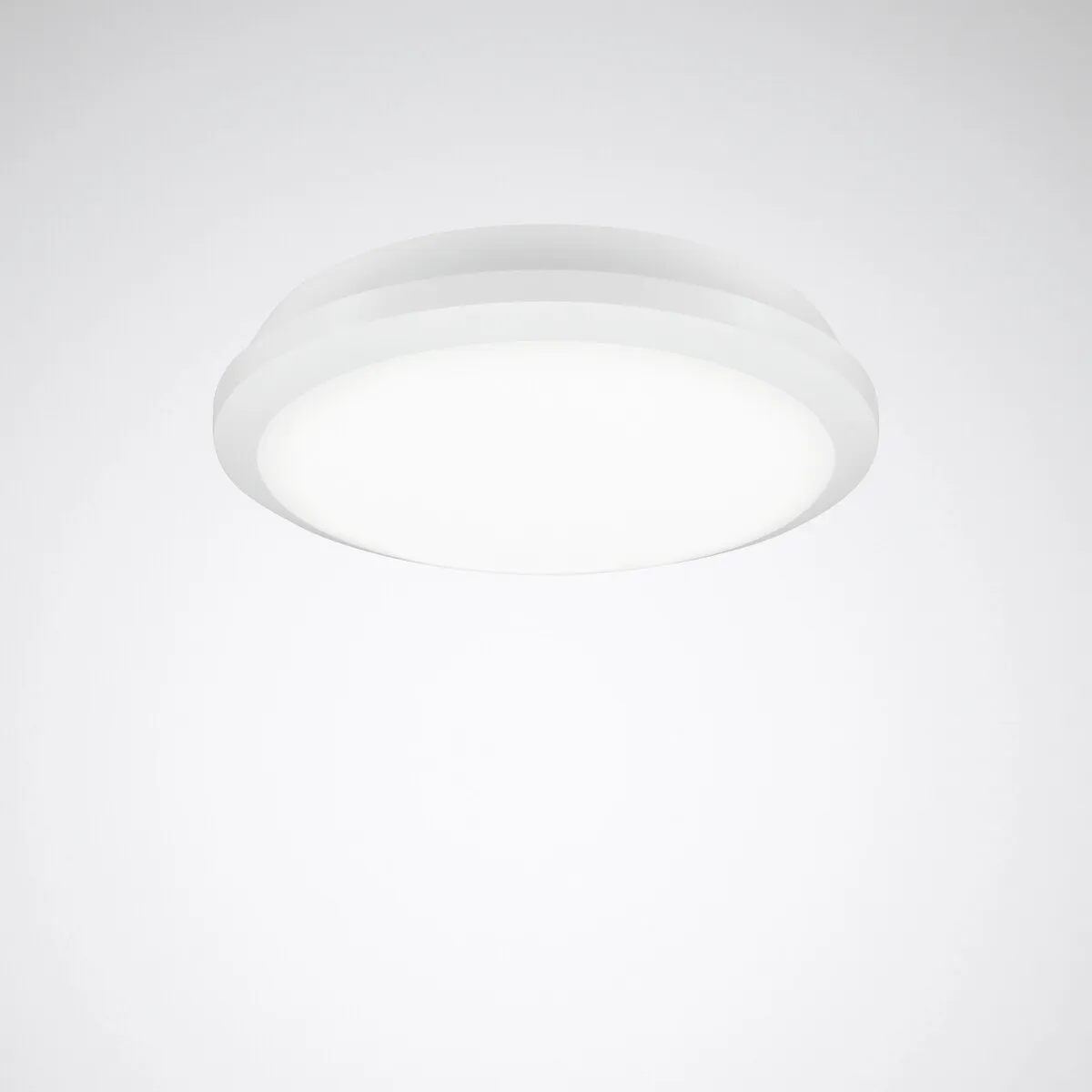

Trilux Limaro
From now on, illuminating canopied outdoor areas is simple – the Limaro LED is weather-resistant and impact-resistant to ensure safe and reliable operation in tough outside conditions. Thanks to low investment and operating costs, the payback is exceedingly quick. And the design is another highlight – with its classically purist looks the Limaro LED blends equally well into indoor and outdoor areas, enabling uniform lighting concepts in and near to buildings.
Luminaire Type
Description
LED surface-mounted luminaire with Higher Protection Rating
Application Areas
Canopies, food production facilities, corridors…
Mounting Methods
Recessed-mounted, for single luminaire or continuous line applications, for Module 100 strip ceilings
LED System - Light Source
Light Source
LED technology
Luminous Flux
760lm - 2,100lm | Multi-lumen option
Connected Load
11W - 21W
Luminous Efficiency
Energy efficiency up to 116lm/W
Service Life
L80(tq 25 °C) 50,000h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) | with Sensor Option (HFS)
Optical System
Optics
Opal polycarbonate diffuser, impact resistant
Light Distribution
With direct wide light distribution
Housing
Housing
Luminaire body of plastic, white (RAL 9016)
Housing Options
Ø 300mm x H 85mm
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class II (EN 61140)
Impact Resistance
IK10
Certificates
CE, ENEC
Luminaire Type
Description
LED surface-mounted luminaire with Higher Protection Rating
Application Areas
Canopies, food production facilities, corridors…
Mounting Methods
Recessed-mounted, for single luminaire or continuous line applications, for Module 100 strip ceilings
Optical System
Optics
Opal polycarbonate diffuser, impact resistant
Light Distribution
With direct wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
760lm - 2,100lm | Multi-lumen option
Connected Load
11W - 21W
Luminous Efficiency
Energy efficiency up to 116lm/W
Service Life
L80(tq 25 °C) 50,000h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body of plastic, white (RAL 9016)
Housing Options
Ø 300mm x H 85mm
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) | with Sensor Option (HFS)
Certificates - Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class II (EN 61140)
Impact Resistance
IK10
Certificates
CE, ENEC
