Trilux DeveoFit
Deveo, Ceiling- and wall-mounted luminaires for standard use in damp or corrosive environments and covered exterior areas
Luminaire Type
Description

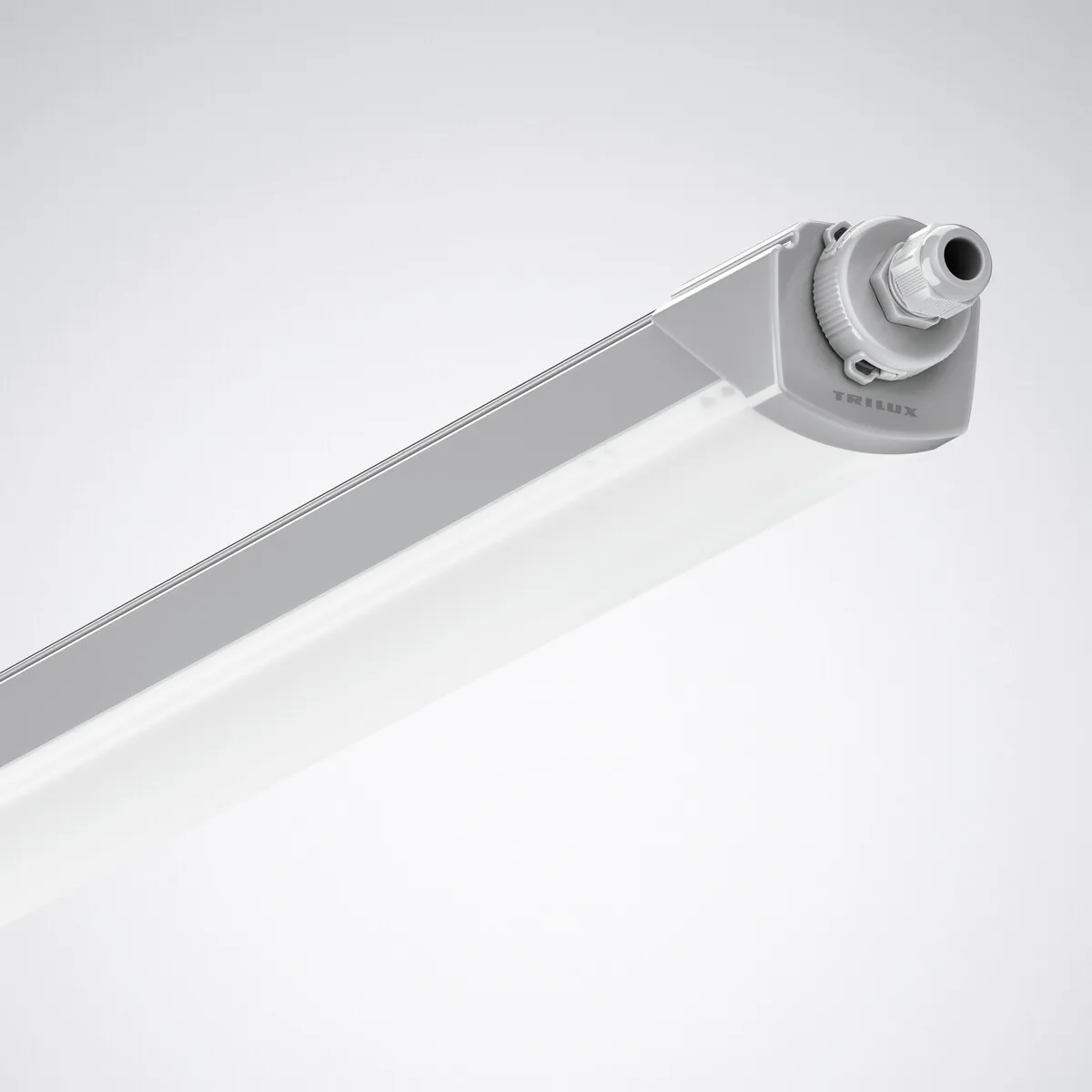

Weather-proof LED surface-mounted luminaire
Application Areas
Ceiling and wall luminaires for damp environments and covered exterior areas
Mounting Methods
For ceiling, wall and suspended mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,100lm - 6,000lm
Connected Load
17W - 51W
Luminous Efficiency
Energy efficiency up to 125lm/W
Service Life
L80(tq 25 °C) = 50,000 h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Other Options
With through-wiring options (LV)
Optical System
Optics
Opal PC cover
Light Distribution
Direct light distribution
Housing
Housing
Luminaire body made of a single-part PC extrusion profile, PC end caps with UV protection, Colour light grey (RAL 7035) / for IP69K CR version the luminaire body made of a single-part PMMA extrusion profile is resistant to chemical environmental influences
Housing Options
WxH : 76x67mm, Length options 650mm, 1213mm, 1207mm, 1487mm, 1493mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting)
Certificates Standards
Protection Rate
IP66 / IP69K (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK10 (IEC 62262)
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
Luminaire Type
Description
Weather-proof LED surface-mounted luminaire
Application Areas
Ceiling and wall luminaires for damp environments and covered exterior areas
Mounting Methods
For ceiling, wall and suspended mounting
Optical System
Optics
Opal PC cover
Light Distribution
Direct light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,100lm - 6,000lm
Connected Load
17W - 51W
Luminous Efficiency
Energy efficiency up to 125lm/W
Service Life
L80(tq 25 °C) = 50,000 h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Luminaire body made of a single-part PC extrusion profile, PC end caps with UV protection, Colour light grey (RAL 7035) / for IP69K CR version the luminaire body made of a single-part PMMA extrusion profile is resistant to chemical environmental influences
Housing Options
WxH : 76x67mm, Length options 650mm, 1213mm, 1207mm, 1487mm, 1493mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting)
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Other Options
With through-wiring options (LV)
Certificates Standards
Protection Rate
IP66 / IP69K (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK10 (IEC 62262)
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
