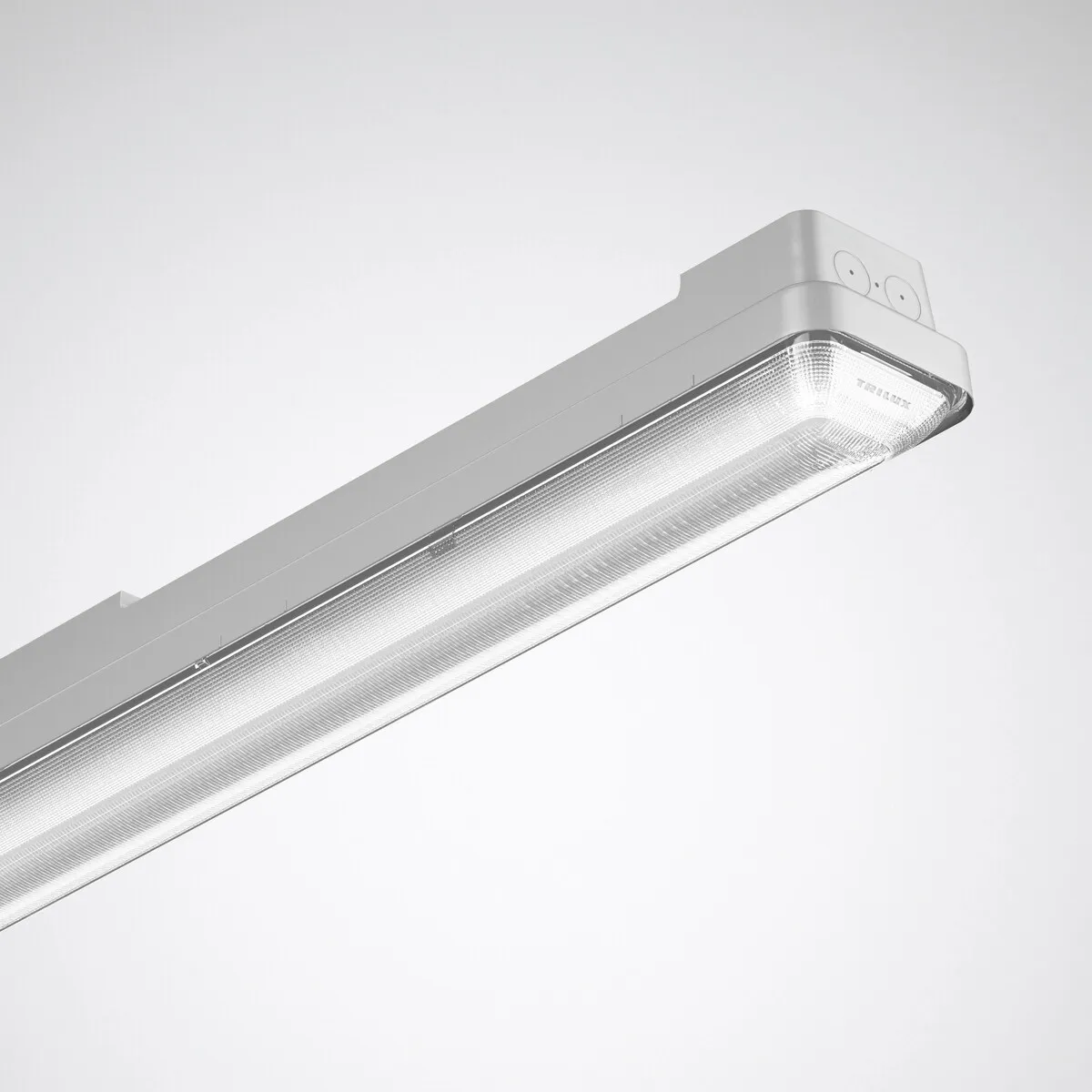

Trilux Aragon Fit
Aragon Fit, the new level for weather-proof luminaires, Aragon Pro LED combines the highest quality of light and efficiency, and can be perfectly adapted to on-site requirements thanks to its modular design. To achieve minimum energy consumption and maximum convenience the luminaires can be quickly and easily networked, either via DALI or radio.
Manuals
Luminaire Type
Description
LED weather-proof luminaire
Application Areas
Stairwells, canopied outdoor areas not exposed to general weather, Cold stores, industrial facilities, utility rooms, escape tunnels, car parks and damp room areas of all types
Mounting Methods
For ceiling, wall and suspended mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,300lm - 13,000lm
Connected Load
11W - 86W
Luminous Efficiency
Energy efficiency up to 180lm/W
Service Life
L80(tq 25 °C) 70,000h / HE Version L80 (tq 25 °C) 100,000h / LT (Low Temperatures) Seçeneği / HT (High Temperatures) Seçeneği | ta-30°C - +35°C / ta-40°C - +50°C
Light Colour
4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) / CLO optional | The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020)
Other Options
With through-wiring options (LV) | Swarm intelligence, LiveLink Control, Monitoring + Special LiveLink Wi-Fi radio refurbishment solution | Sensor Options HFS, HFSB, HFSX
Optical System
Optics
PC cover / PMMA cover / CR translucent polyamide diffuser
Light Distribution
Direct light distribution | Beam options P-W (wide distribution), P-N (narrow distribution), P-VW (very wide distribution), P-XW (extremely wide distribution), P-AW (asymmetric distribution)
Housing
Housing
Luminaire body of PC, light grey RAL 7035 / CR Luminaire body of polyamide with solid chemical resistance to organic solvents. Colourless luminaire body (RAL 7035)
Housing Options
WxH: 102x91mm, Lenght options 695mm, 1257mm, 1552mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBMC (Bracket for suspended mounting) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting), Wire Suspension Accessory, Through-wiring accessories
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (PC Versiyon), IK07 (CR Version), IK03 (PMMA)
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
Luminaire Type
Description
LED weather-proof luminaire
Application Areas
Stairwells, canopied outdoor areas not exposed to general weather, Cold stores, industrial facilities, utility rooms, escape tunnels, car parks and damp room areas of all types
Mounting Methods
For ceiling, wall and suspended mounting
Optical System
Optics
PC cover / PMMA cover / CR translucent polyamide diffuser
Light Distribution
Direct light distribution | Beam options P-W (wide distribution), P-N (narrow distribution), P-VW (very wide distribution), P-XW (extremely wide distribution), P-AW (asymmetric distribution)
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,300lm - 13,000lm
Connected Load
11W - 86W
Luminous Efficiency
Energy efficiency up to 180lm/W
Service Life
L80(tq 25 °C) 70,000h / HE Version L80 (tq 25 °C) 100,000h / LT (Low Temperatures) Seçeneği / HT (High Temperatures) Seçeneği | ta-30°C - +35°C / ta-40°C - +50°C
Light Colour
4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Luminaire body of PC, light grey RAL 7035 / CR Luminaire body of polyamide with solid chemical resistance to organic solvents. Colourless luminaire body (RAL 7035)
Housing Options
WxH: 102x91mm, Lenght options 695mm, 1257mm, 1552mm
Accessories
Mounting Accessories ZBATL2 (Theft Protection Accessory) / ZBMC (Bracket for suspended mounting) / ZBWM (Pivotable mounting brackets, for ceiling and wall mounting), Wire Suspension Accessory, Through-wiring accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) / CLO optional | The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020)
Other Options
With through-wiring options (LV) | Swarm intelligence, LiveLink Control, Monitoring + Special LiveLink Wi-Fi radio refurbishment solution | Sensor Options HFS, HFSB, HFSX
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (PC Versiyon), IK07 (CR Version), IK03 (PMMA)
Certificates
CE, ENEC, Suitable for HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500)
