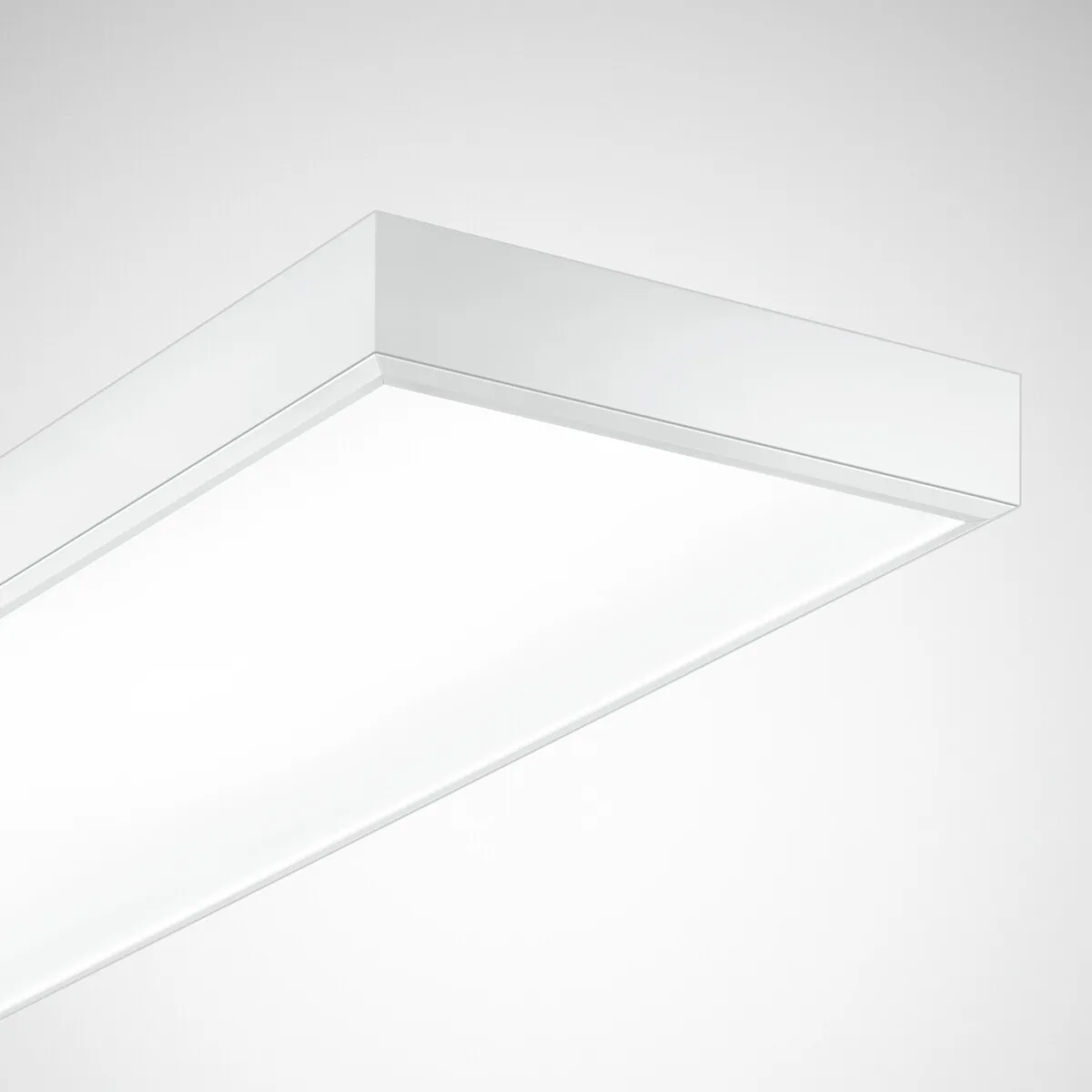

Trilux Actison
Its outstanding quality of light and economy (up to 140 lm/W) make Actison Fit LED a top favourite for sports hall lighting. The product is suitable for various ceiling heights and mounting methods, is ideal in refurbishment projects and is available on request with sensors and light management.
Luminaire Type
Description
High-bay and sports hall luminaire
Application Areas
Multi-purpose halls, sports halls, tennis halls
Mounting Methods
Suitable for ceiling and suspended mounting with optional accessories
LED System - Light Source
Light Source
LED technology
Luminous Flux
9,300lm - 20,000lm
Connected Load
69W - 165W
Luminous Efficiency
Up to 140 lm/W
Service Life
L80(tq 30 °C) = 100,000 h / L80(tq 35 °C) = 70,000 h
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) | Flicker (PST<1, SVM <1)
Optical System
Optics
CDP fine prismatics - Ballproof tested according to DIN VDE 0710-13 with CDP cover
Light Distribution
Direct symmetric light distribution
Housing
Housing
Luminaire body of sheet steel, powder-coated white. Surface coated white (RAL 9016)
Housing Options
1500 x 310 mm / 1500 x 412 mm
Accessories
Pendant / Recessed Mounting Accessory
Certificates Standards
Protection Rate
IP20 / IP50
Safety Class
Class I
Impact Resistance
IK08 / Ball-proof according to DIN 18032-3
Certificates
CE, ENEC, Ball-proof (DIN 18032-3)
Luminaire Type
Description
High-bay and sports hall luminaire
Application Areas
Multi-purpose halls, sports halls, tennis halls
Mounting Methods
Suitable for ceiling and suspended mounting with optional accessories
Optical System
Optics
CDP fine prismatics - Ballproof tested according to DIN VDE 0710-13 with CDP cover
Light Distribution
Direct symmetric light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
9,300lm - 20,000lm
Connected Load
69W - 165W
Luminous Efficiency
Up to 140 lm/W
Service Life
L80(tq 30 °C) = 100,000 h / L80(tq 35 °C) = 70,000 h
Light Colour
4000K / 6500K
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Luminaire body of sheet steel, powder-coated white. Surface coated white (RAL 9016)
Housing Options
1500 x 310 mm / 1500 x 412 mm
Accessories
Pendant / Recessed Mounting Accessory
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI) | Flicker (PST<1, SVM <1)
Certificates Standards
Protection Rate
IP20 / IP50
Safety Class
Class I
Impact Resistance
IK08 / Ball-proof according to DIN 18032-3
Certificates
CE, ENEC, Ball-proof (DIN 18032-3)
