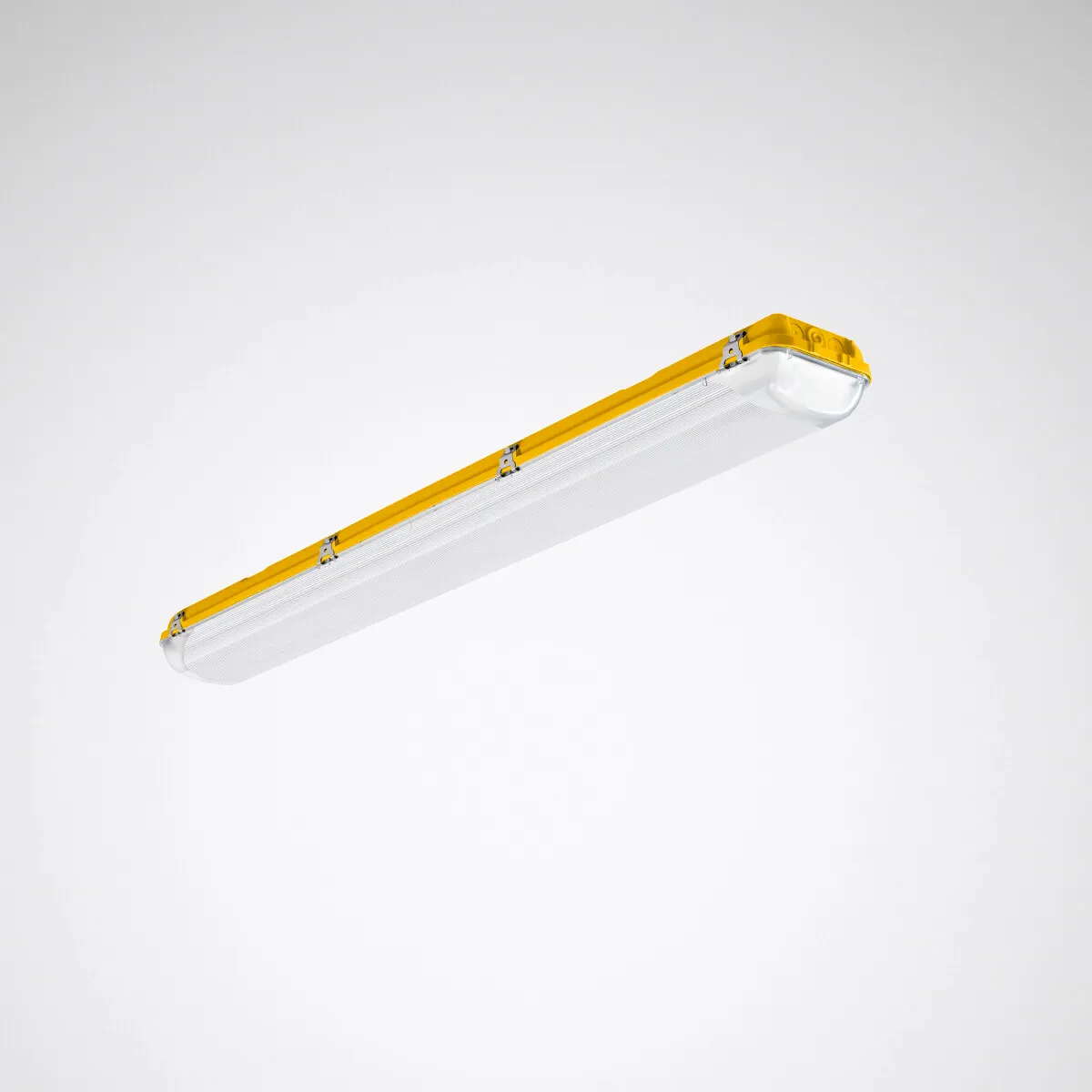

Trilux Acquex
A simple and safe solution for ATEX zones 21 and 22, a reinforced polycarbonate diffuser provides high impact resistance (IK10) while prisms ensure ideal light distribution.
Luminaire Type
Description
Explosion-proof weather-proof LED diffuser luminaire
Application Areas
Zone 2-22, ATEX mark II 3G Ex ec T6 IIC Gc / II 3D Ex tc T85°C IIIC Dc
Mounting Methods
For wall or ceiling mounting, pendant suspension accessory, for use of horizontal or vertical mounting
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,000lm - 8,000lm
Connected Load
16W - 55W
Luminous Efficiency
Energy efficiency up to 145lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Optical System
Optics
PC
Light Distribution
With direct symmetric narrow-wide light distribution
Housing
Housing
Polyester body, signal yellow (RAL 1003)
Housing Options
LxWxH: 600/1200/1500 x 145 x 101mm
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK10
Certificates
CE, ATEX (ATEX II 3G Ex ec T6 IIC Gc / II 3D Ex tc T85°C IIIC Dc)
Luminaire Type
Description
Explosion-proof weather-proof LED diffuser luminaire
Application Areas
Zone 2-22, ATEX mark II 3G Ex ec T6 IIC Gc / II 3D Ex tc T85°C IIIC Dc
Mounting Methods
For wall or ceiling mounting, pendant suspension accessory, for use of horizontal or vertical mounting
Optical System
Optics
PC
Light Distribution
With direct symmetric narrow-wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
2,000lm - 8,000lm
Connected Load
16W - 55W
Luminous Efficiency
Energy efficiency up to 145lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Polyester body, signal yellow (RAL 1003)
Housing Options
LxWxH: 600/1200/1500 x 145 x 101mm
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Certificates - Standards
Protection Rate
IP66 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK10
Certificates
CE, ATEX (ATEX II 3G Ex ec T6 IIC Gc / II 3D Ex tc T85°C IIIC Dc)
