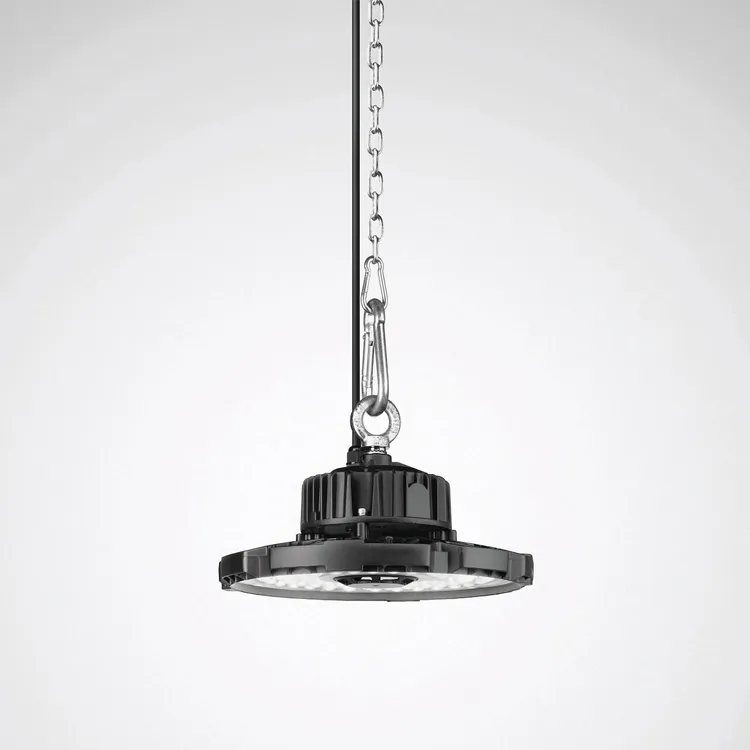

Trilux 2380
The 2380 LED is a highbay luminaire for trade fair and exhibition halls, production facilities and warehouses. With IP65 it is also suitable for damp rooms and is available in three lumen packages. Single-point suspension means the luminaire is a simple 1:1 refurbishment solution. Optionally with sensor for particularly efficient lighting.
Luminaire Type
Description
Highbay Indoor Lighting Luminaire
Application Areas
High rooms, Halls, Warehouses, Manufacturing halls, Trade fair and exhibition halls, sports halls
Mounting Methods
Suspended
LED System - Light Source
Light Source
LED technology
Luminous Flux
10,000lm - 30,000lm
Connected Load
77W - 200W
Luminous Efficiency
Energy efficiency up to 150lm/W
Service Life
L70(tq 25 °C) 50,000h
Light Colour
4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ET (Electronic Transformer) / Motion Sensor (HF Sensor), ZHAGA interface / Remote control for commissioning (HF SENSOR RMC)
Optical System
Optics
Lens Optic
Light Distribution
Narrow-Wide Light Distribution
Housing
Housing
Luminaire body of die-cast aluminium. Surface coated black (RAL 9005)
Housing Options
ØxH 268x145 mm | 310x145 mm
Accessories
Mounting Accessories / Sensor Options
Certificates - Standards
Protection Rate
IP65 (DIN EN 60529)
Safety Class
Class I (EN 61140)
Impact Resistance
IK08 (IEC 62262)
Certificates
CE, ENEC
