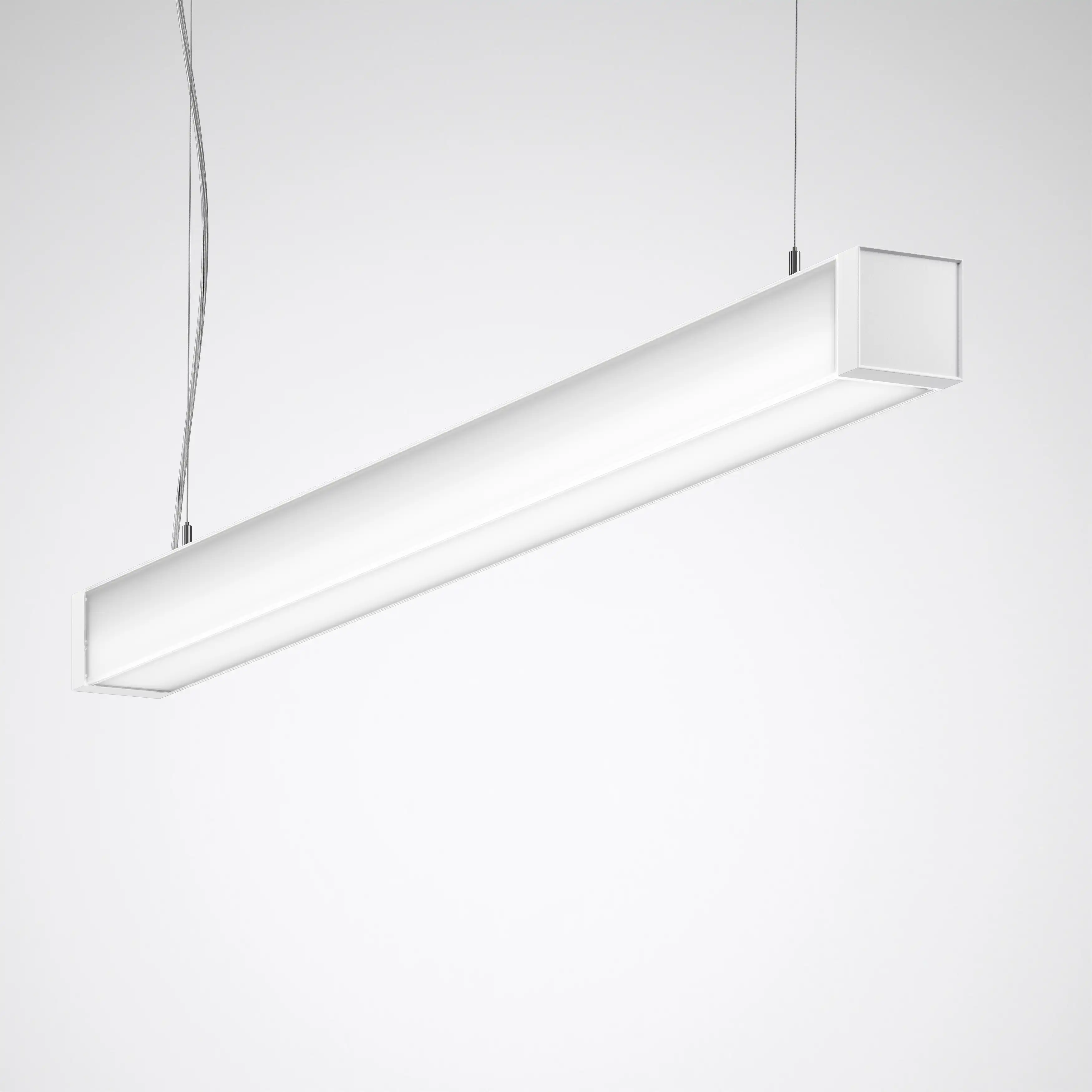

    Trilux Varitura delivers high-performance lighting across a wide range of spaces, from offices to educational environments, with its elegant design and high functionality. Its striking appearance accentuates architectural lines while providing standard-compliant, uniform, and low-glare lighting (UGR ≤ 19) for workspaces. With direct wide-beam, and direct/indirect lighting options, it creates a comfortable and efficient visual environment. With flexible installation options such as pendant, ceiling or wall mounting, Varitura ensures energy efficiency through innovative LED technology, making it an ideal choice for sustainable projects.

Luminaire Type
Description
Decorative indoor lighting luminaire
Application Areas
Offices, conference rooms, foyers, lobbies, corridors, technical rooms
Mounting Methods
Surface mounted / Pendant / Wall mounted (vertical)
Types
Varitura 12 / Varitura 15 / Varitura... DW19 (direct, UGR ≤ 19 ) / Varitura... DW19-IL (direct/indirect, UGR ≤ 19)
LED System - Light Source
Light Source
LED technology
Luminous Flux
3,700lm - 6,100lm
Connected Load
23W - 49.5W
Luminous Efficiency
Energy efficiency up to 160lm/W
Service Life
L80(tq 25 °C) = 50,000 h
Light Colour
3000K / 4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
ETDD (DALI Driver) / LiveLink control options
Optical System
Optics
Translucent PMMA diffuser, glare-free lighting in accordance with EN 12464-1 standards (UGR ≤ 19, suitable for to use for work areas with screens < 3000 cd/m²)
Light Distribution
Direct wide-angle light distribution (DW19) / Direct-Indirect wide-angle light distribution (DW19-L)
Housing
Housing
PMMA profile, cast aluminum end cap, white color (RAL 9016), can be produced in different colors upon request
Housing Options
LxWxH: 1568x75x75mm / 1287x75x75mm
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP54
Safety Class
Class I
Impact Resistance
IK03
Certificates
CE
