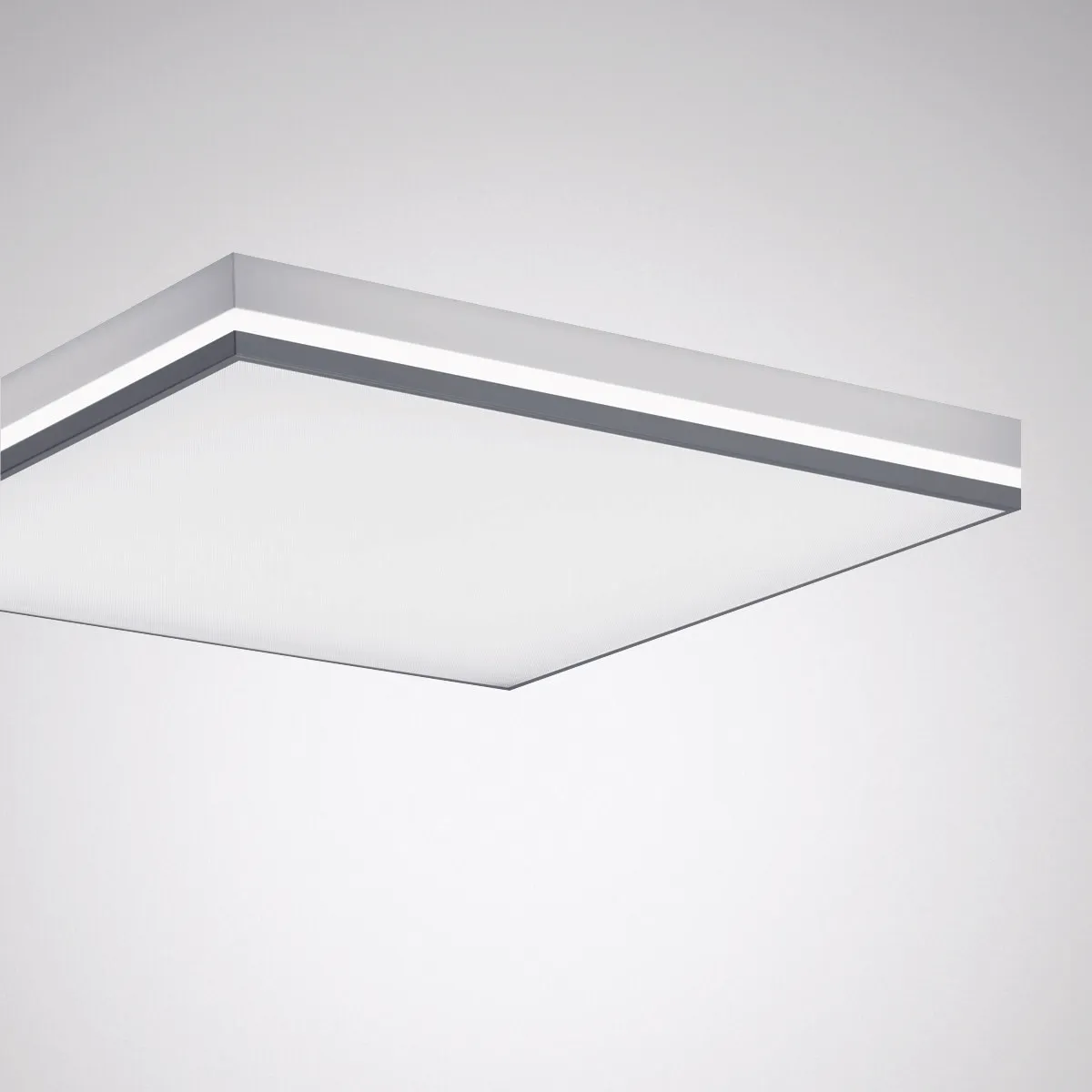

Trilux Belviso D
The Belviso luminaire family represents high quality lighting solutions together with glare-free light and unusual lighting effects. The exclusive light frame makes the Belviso Cluster ceiling luminaires unmistakable, creates a unique light appearance and underlines the completely harmonious illumination of the light surface. The colour-illuminated light frame is available optionally and achieves an emotional upgrading of the lighting design. Five expressive alternatives mean that diverse, room-specific or individual colour codings can be selected.
Luminaire Type
Description
Decorative indoor lighting luminaire
Application Areas
For innovative, prestigious lighting or auxiliary lighting in retail areas, foyers, corridors, office areas, conference rooms, hotels, restaurants and living spaces
Mounting Methods
Recessed (C1) / Semi-recessed (C2) / Surface (D)
Types
Belviso C1 / Belviso C2 / Belviso D
LED System - Light Source
Light Source
LED technology
Luminous Flux
3,700lm - 4,100lm
Connected Load
27W - 31W
Luminous Efficiency
Energy efficiency up to 150lm/W
Service Life
L80(tq 25 °C) = 70,000 h
Light Colour
3000K / 4000K / 2700-6500K Active Tunable
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver)
Optical System
Optics
With highly efficient CDP microprisms, UGR rating (EN 12464-1) < 19, VDU workstation-compliant in accordance with 12464-1
Light Distribution
Direct light distribution
Housing
Housing
Luminaire body sheet steel, Surface coated white (RAL 9016), semi-recessed models with all-round, exclusive light frame, colors Blue, Green, Orange, Red, Yellow, Gray
Housing Options
600x600mm (M73) / 300x1200mm (M46)
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP20
Safety Class
Class I
Impact Resistance
IK06
Certificates
CE, ENEC
Luminaire Type
Description
Decorative indoor lighting luminaire
Application Areas
For innovative, prestigious lighting or auxiliary lighting in retail areas, foyers, corridors, office areas, conference rooms, hotels, restaurants and living spaces
Mounting Methods
Recessed (C1) / Semi-recessed (C2) / Surface (D)
Types
Belviso C1 / Belviso C2 / Belviso D
Optical System
Optics
With highly efficient CDP microprisms, UGR rating (EN 12464-1) < 19, VDU workstation-compliant in accordance with 12464-1
Light Distribution
Direct light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
3,700lm - 4,100lm
Connected Load
27W - 31W
Luminous Efficiency
Energy efficiency up to 150lm/W
Service Life
L80(tq 25 °C) = 70,000 h
Light Colour
3000K / 4000K / 2700-6500K Active Tunable
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Luminaire body sheet steel, Surface coated white (RAL 9016), semi-recessed models with all-round, exclusive light frame, colors Blue, Green, Orange, Red, Yellow, Gray
Housing Options
600x600mm (M73) / 300x1200mm (M46)
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver)
Certificates - Standards
Protection Rate
IP20
Safety Class
Class I
Impact Resistance
IK06
Certificates
CE, ENEC
