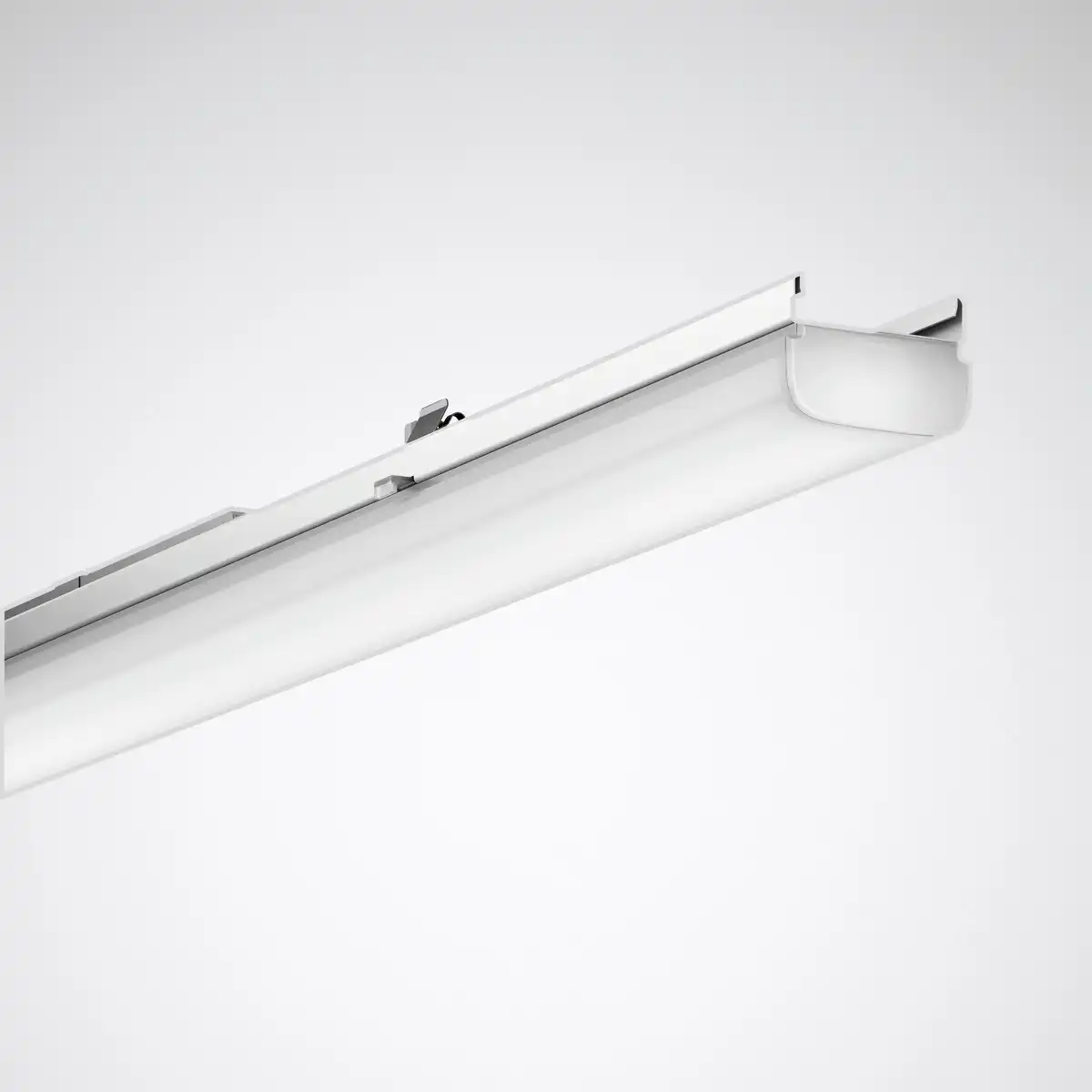

Trilux 7651 Emergency Lighting with Diffuser

Compare
Trilux 7651 Emergency Lighting with Diffuser Enda Product
Compare

    It remains true to itself – and yet consistently takes the next step forward. Typical for E-Line Next LED are not only pioneering achievements in terms of efficiency, service life, quality of light and convenience. The modular system with its unique range of variants ensures made-to-measure, perfect lighting conditions in every application. And when it comes to sustainability, no wishes remain unfulfilled. E-Line Next LED as a Monitoring-Ready version opens up the potential of intelligent and networked lighting. This makes it the ideal choice for all continuous line projects, across all applications.

Luminaire Type
Description
Emergency Modules for Single or continuous line E-Line (7651) Trunking System
Application Areas
Offices, Education, Warehouses, Manufacturing halls, Corridors, Assembly halls, Workshops
Mounting Methods
Module suitable for E-Line (7651) Trunking System
Types
7651 DL 8-840 EB1-TRI PRO L75 01
LED System - Light Source
Light Source
LED technology
Luminous Flux
800lm
Connected Load
5W
Luminous Efficiency
Energy efficiency up to 160lm/W
Light Colour
4000K
Colour Rendering Index
Ra > 80
Electrical Version
Electrical Version
Emergency Lighting
Optical System
Optics
With PMMA diffuser
Light Distribution
Direct symmetric narrow-wide light distribution
Housing
Housing
Gear tray of sheet steel, LxWxH 737x78x62mm (with trunking)
Certificates - Standards
Protection Rate
IP50
Safety Class
Class I
Certificates
CE, ENEC
Luminaire Type
Description
Emergency Modules for Single or continuous line E-Line (7651) Trunking System
Application Areas
Offices, Education, Warehouses, Manufacturing halls, Corridors, Assembly halls, Workshops
Mounting Methods
Module suitable for E-Line (7651) Trunking System
Types
7651 DL 8-840 EB1-TRI PRO L75 01
Optical System
Optics
With PMMA diffuser
Light Distribution
Direct symmetric narrow-wide light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
800lm
Connected Load
5W
Luminous Efficiency
Energy efficiency up to 160lm/W
Light Colour
4000K
Colour Rendering Index
Ra > 80
Housing
Housing
Gear tray of sheet steel, LxWxH 737x78x62mm (with trunking)
Electrical Version
Electrical Version
Emergency Lighting
Certificates - Standards
Protection Rate
IP50
Safety Class
Class I
Certificates
CE, ENEC
