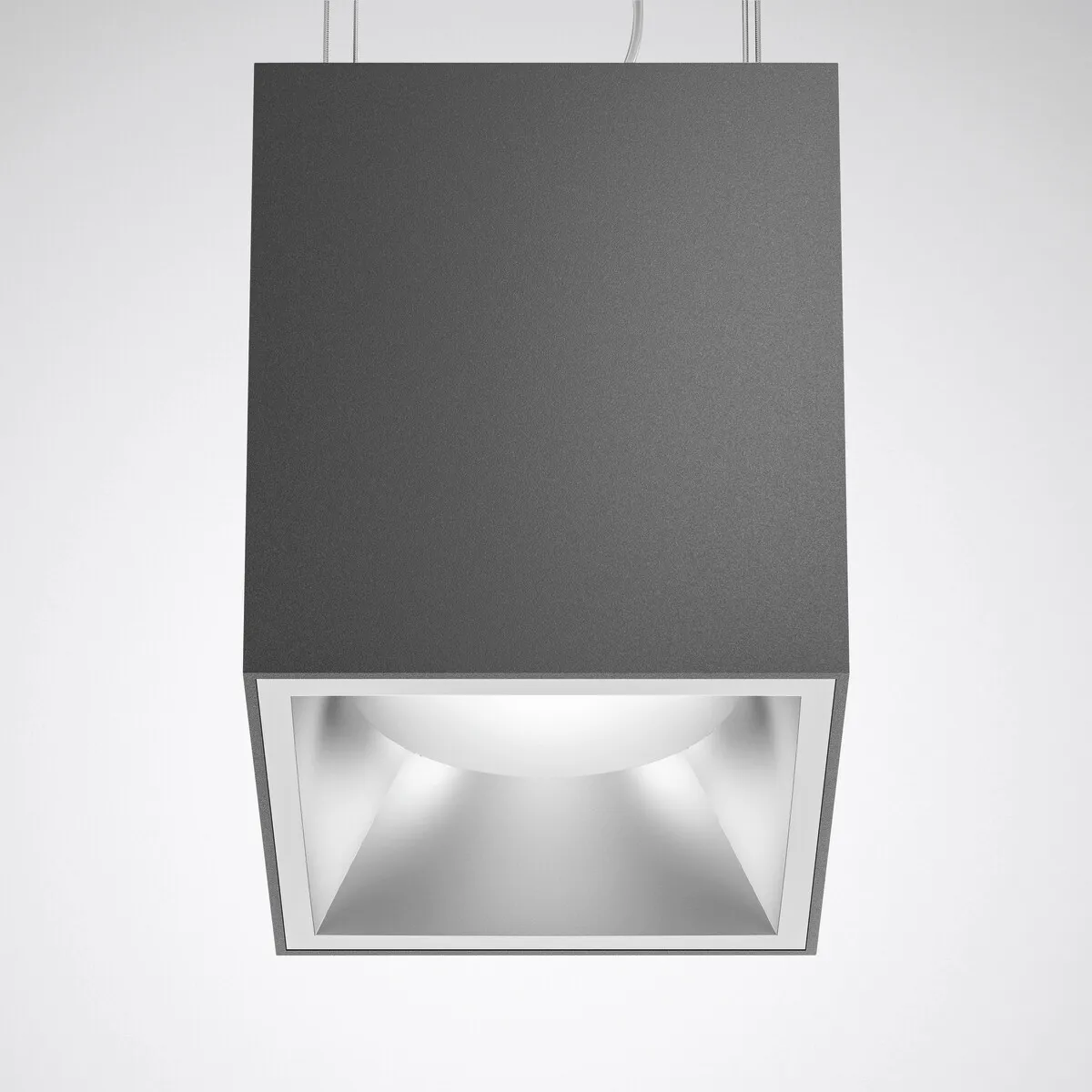

Trilux Sonnos QH
Any functions and one world of design- the modularly designed Sonnos LED range of downlights can implement all lighting tasks in a uniform design and quality of light thanks to the wide selection of lighting technologies, optics and surface-mounting options.
Links
Luminaire Type
Description
Decorative Indoor Lighting Luminaire
Application Areas
For workstations with computer screens. Offices, Corridors, Foyers, Conference rooms, Retail areas, waiting zones. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies
Mounting Methods
Recessed / Trimless Recessed / Surface Mounted / Pendant
Types
Sonnos RC - Round Recessed Downlight / Sonnos RT - Round Recessed Trimless Downlight / Sonnos RD - Round Surfaced Downlight / Sonnos RH - Round Pendant Downlight / Sonnos QC - Square Recessed Downlight / Sonnos QT - Square Recessed Trimless Downlight / Sonnos QD - Square Surfaced Downlight / Sonnos QH - Square Pendant Downlight
LED System - Light Source
Light Source
LED technology
Luminous Flux
500lm - 5,000lm
Connected Load
8W - 46W
Luminous Efficiency
Energy efficiency up to 130lm/W
Service Life
L80(tq 25 °C) 100,000h
Light Colour
2700K / 3000K / 4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Optical System
Optics
Optionally highly specular, semi-specular, white or black, more on request
Light Distribution
Fixed or pivotable optics option | Medium flood (24°), flood (36°), very wide flood (60°), extreme wide flood (80°), Wallwasher
Housing
Housing
Housing, mounting ring and heat sink made of die-cast aluminium
Housing Options
RC Ø68/100/150/210mm | RT Ø72/104/154/214mm | RD Ø148/208mm | RH Ø148/208mm | QD 151x151mm/212x212mm
Accessories
Mounting accessories / Decorative Frame Accessories
Certificates - Standards
Protection Rate
IP20 / IP44 / IP54
Safety Class
Class II
Impact Resistance
IK06
Certificates
CE, ENEC
