Trilux Inperla Ligra Plus

Compare

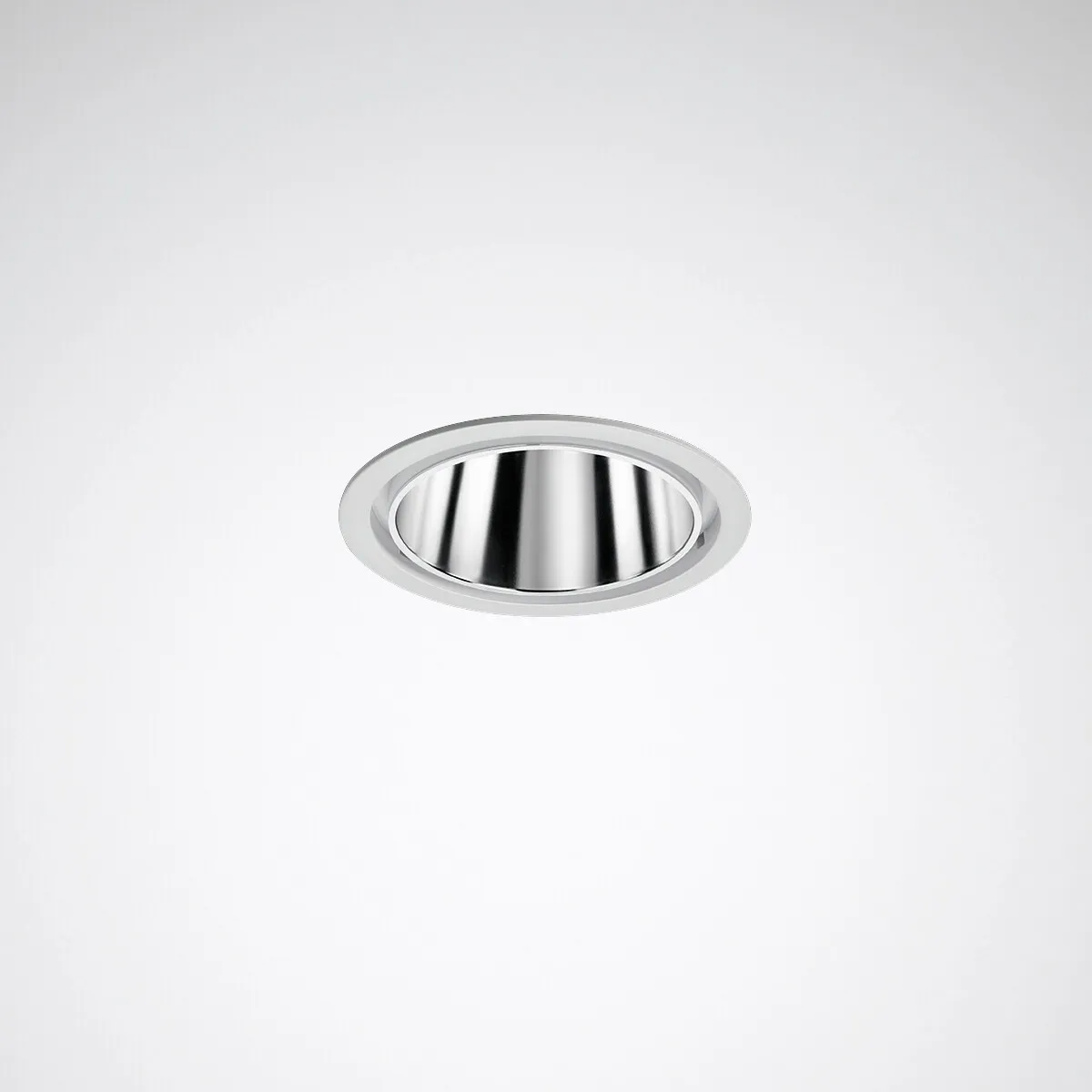

Trilux Inperla Ligra Plus Enda Product
Compare

    Refurbishing was never so simple as with the easy-mounting and flexible Ligra Plus LED. With the cladding covers, the luminaire fits into nearly all existing ceiling cutouts and if required can be connected via mains through-wiring from luminaire to luminaire to save time. The Ligra Plus LED is available with different luminous flux packages and beam characteristics for the optimal illumination of a wide variety of rooms. All versions fulfil maximum demands for visual comfort and energy efficiency. And thanks to the diverse design versions, the Ligra Plus LED always blends harmoniously into the interior design.

Luminaire Type
Description
Decorative Indoor Lighting Luminaire
Application Areas
Innovative lighting of sales areas, foyers, corridors, conference rooms, hotels, restaurants and living spaces.
Mounting Methods
Recessed
Types
InperlaLP HR / InperlaLP BR
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 2,700lm
Connected Load
9W - 25W
Luminous Efficiency
Energy efficiency up to 120lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
3000K / 4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Optical System
Optics
HR - Highly Specular Reflector / BR - Facet Reflector | UGR<19, UGR<22, UGR<25
Light Distribution
Direct symmetric light distribution
Housing
Housing
Housing, mounting ring and heat sink made of die-cast aluminium
Housing Options
Ø150mm
Accessories
Mounting accessories / Decorative Frame Accessories
Certificates - Standards
Protection Rate
IP20 / IP54
Safety Class
Class II
Impact Resistance
IK06
Certificates
CE, ENEC
Luminaire Type
Description
Decorative Indoor Lighting Luminaire
Application Areas
Innovative lighting of sales areas, foyers, corridors, conference rooms, hotels, restaurants and living spaces.
Mounting Methods
Recessed
Types
InperlaLP HR / InperlaLP BR
Optical System
Optics
HR - Highly Specular Reflector / BR - Facet Reflector | UGR<19, UGR<22, UGR<25
Light Distribution
Direct symmetric light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,000lm - 2,700lm
Connected Load
9W - 25W
Luminous Efficiency
Energy efficiency up to 120lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
3000K / 4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Housing, mounting ring and heat sink made of die-cast aluminium
Housing Options
Ø150mm
Accessories
Mounting accessories / Decorative Frame Accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Certificates - Standards
Protection Rate
IP20 / IP54
Safety Class
Class II
Impact Resistance
IK06
Certificates
CE, ENEC
