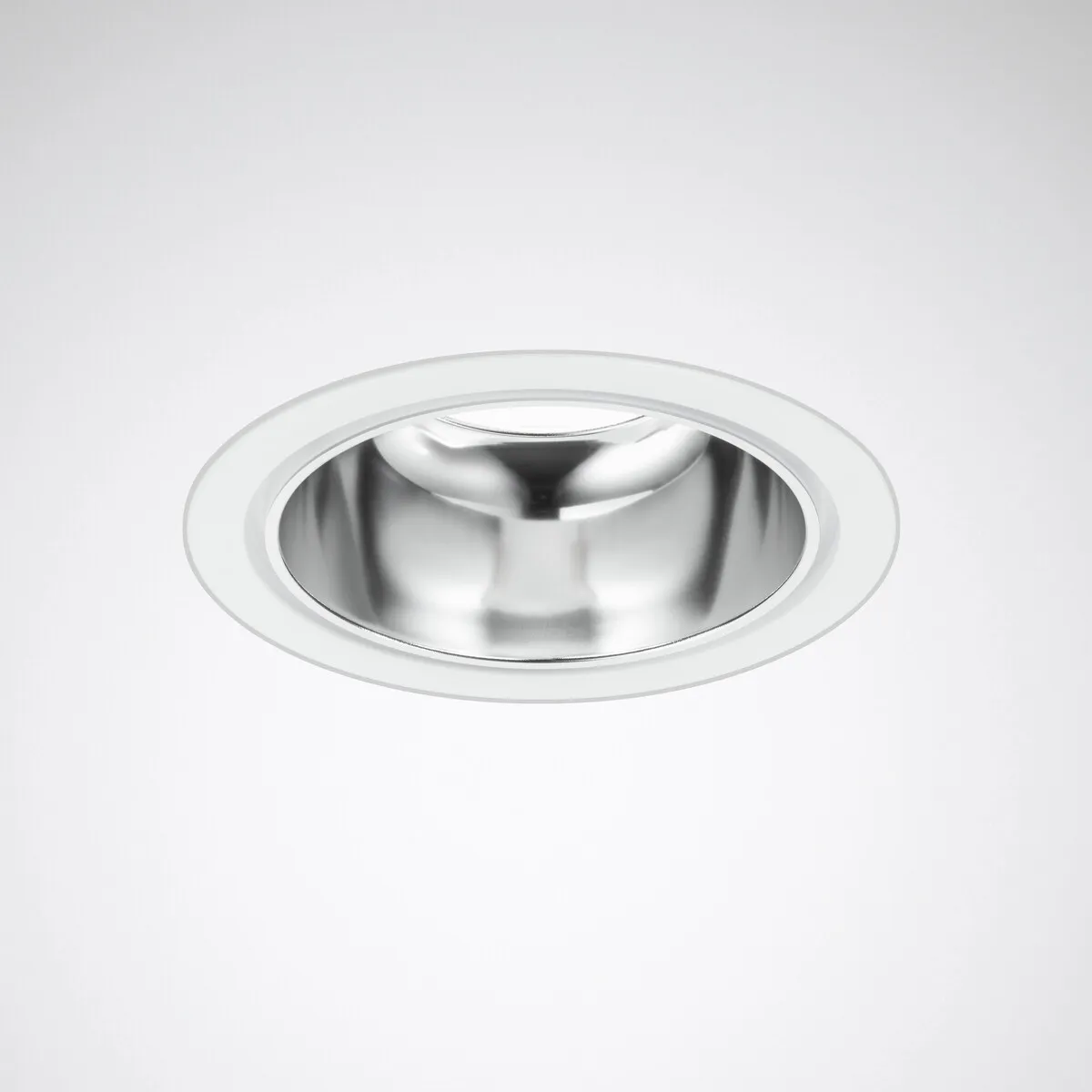

Trilux Inperla Ligra
Inperla Ligra LED is available with different luminous flux packages and beam characteristics for the optimal illumination of a wide variety of rooms. All versions fulfil maximum demands for visual comfort and energy efficiency
Luminaire Type
Description
Decorative Indoor Lighting Luminaire
Application Areas
Innovative lighting of sales areas, foyers, corridors, conference rooms, hotels, restaurants and living spaces.
Mounting Methods
Recessed
Types
InperlaL HR / InperlaL BR
LED System - Light Source
Light Source
LED technology
Luminous Flux
900lm - 4,400lm
Connected Load
9W - 48W
Luminous Efficiency
Energy efficiency up to 115lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
3000K / 4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Optical System
Optics
HR - Highly Specular Reflector / BR - Facet Reflector | UGR<19, UGR<22, UGR<25
Light Distribution
Direct symmetric light distribution
Housing
Housing
Housing, mounting ring and heat sink made of die-cast aluminium
Housing Options
Ø236mm
Accessories
Mounting accessories / Decorative Frame Accessories
Certificates - Standards
Protection Rate
IP40 / IP54
Safety Class
Class II
Impact Resistance
IK03
Certificates
CE, ENEC
Luminaire Type
Description
Decorative Indoor Lighting Luminaire
Application Areas
Innovative lighting of sales areas, foyers, corridors, conference rooms, hotels, restaurants and living spaces.
Mounting Methods
Recessed
Types
InperlaL HR / InperlaL BR
Optical System
Optics
HR - Highly Specular Reflector / BR - Facet Reflector | UGR<19, UGR<22, UGR<25
Light Distribution
Direct symmetric light distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
900lm - 4,400lm
Connected Load
9W - 48W
Luminous Efficiency
Energy efficiency up to 115lm/W
Service Life
L80(tq 25 °C) 70,000h
Light Colour
3000K / 4000K / 6500K / HCL (2700K-6500K) optional
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Housing, mounting ring and heat sink made of die-cast aluminium
Housing Options
Ø236mm
Accessories
Mounting accessories / Decorative Frame Accessories
Electrical Version
Electrical Version
ET (Electronic Transformer) / ETDD (DALI)
Certificates - Standards
Protection Rate
IP40 / IP54
Safety Class
Class II
Impact Resistance
IK03
Certificates
CE, ENEC
