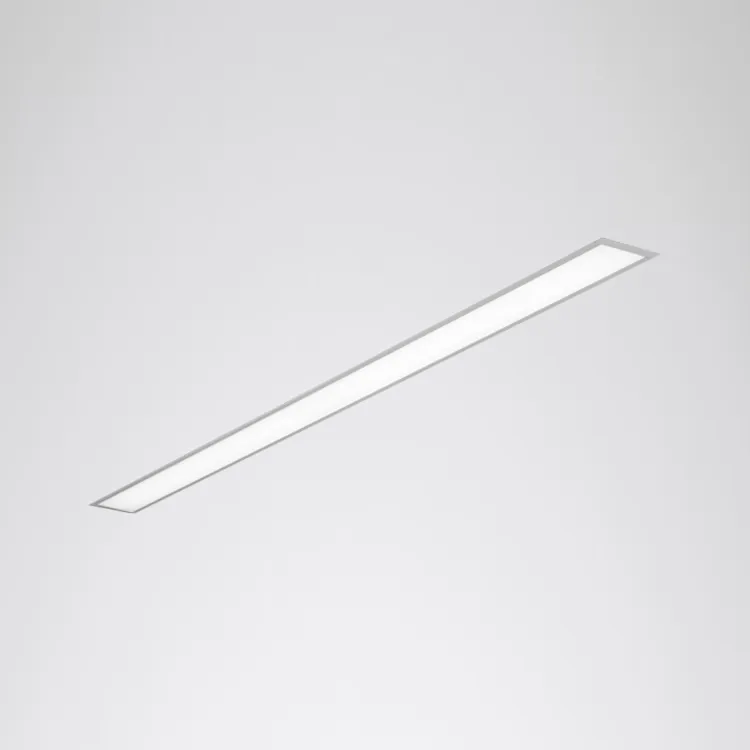

Lena RL
Lena, provides glare-free and homogeneous illumination with numerous dimension options, featuring with an opal diffuser or reflector optics. Its simple design and various dimensions offer flexibility for Indoor Lighting project designs, especially in offices, conference halls, corridors, and foyers.'
Luminaire Type
Description
Linear Indoor Lighting Luminaire
Application Areas
Offices, corridors, seminar and conference halls
Mounting Methods
Recessed (Lena RL), Single or Continuous Line Application Options
Types
Lena RLS | Lena RL
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,500lm/mt. – 3,000lm/mt.
Connected Load
15W/mt.- 30W/mt. Low, mid, and high-power options
Service Life
L80 (tq 25°C) = 50,000hours
Light Colour
2700K / 3000K / 4000K / 6500K / 2700-6500K
Colour Rendering Index
Ra> 80
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Optical System
Optics
UV-resistant and non-yellowing Optics | Opal diffuser / PMMA
Light Distribution
Direct Symmetric Light Distribution
Housing
Housing
Electrostatic Powder Coated Extruded Aluminium Housing | RAL9016 white color, Housing color options available'
Housing Options
LxWxH: RLS: 600/900/1200/1500….x67x35 mm / Different length options | RL: 600/900/1200/1500….x64x80 mm / Different length options
Certificates - Standards
Protection Rate
IP20 / IP40
Safety Class
Class I / Class II
Luminaire Type
Description
Linear Indoor Lighting Luminaire
Application Areas
Offices, corridors, seminar and conference halls
Mounting Methods
Recessed (Lena RL), Single or Continuous Line Application Options
Types
Lena RLS | Lena RL
Optical System
Optics
UV-resistant and non-yellowing Optics | Opal diffuser / PMMA
Light Distribution
Direct Symmetric Light Distribution
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,500lm/mt. – 3,000lm/mt.
Connected Load
15W/mt.- 30W/mt. Low, mid, and high-power options
Service Life
L80 (tq 25°C) = 50,000hours
Light Colour
2700K / 3000K / 4000K / 6500K / 2700-6500K
Colour Rendering Index
Ra> 80
Housing
Housing
Electrostatic Powder Coated Extruded Aluminium Housing | RAL9016 white color, Housing color options available'
Housing Options
LxWxH: RLS: 600/900/1200/1500….x67x35 mm / Different length options | RL: 600/900/1200/1500….x64x80 mm / Different length options
Electrical Version
Electrical Version
Electronic Control Gear / DALI control gear (digitally dimmable) | Emergency Inverter Options Available
Other Options
For further LED and housing color options, optics/flux/dimension variations, updated efficiency information, please get into contact
Certificates - Standards
Protection Rate
IP20 / IP40
Safety Class
Class I / Class II
