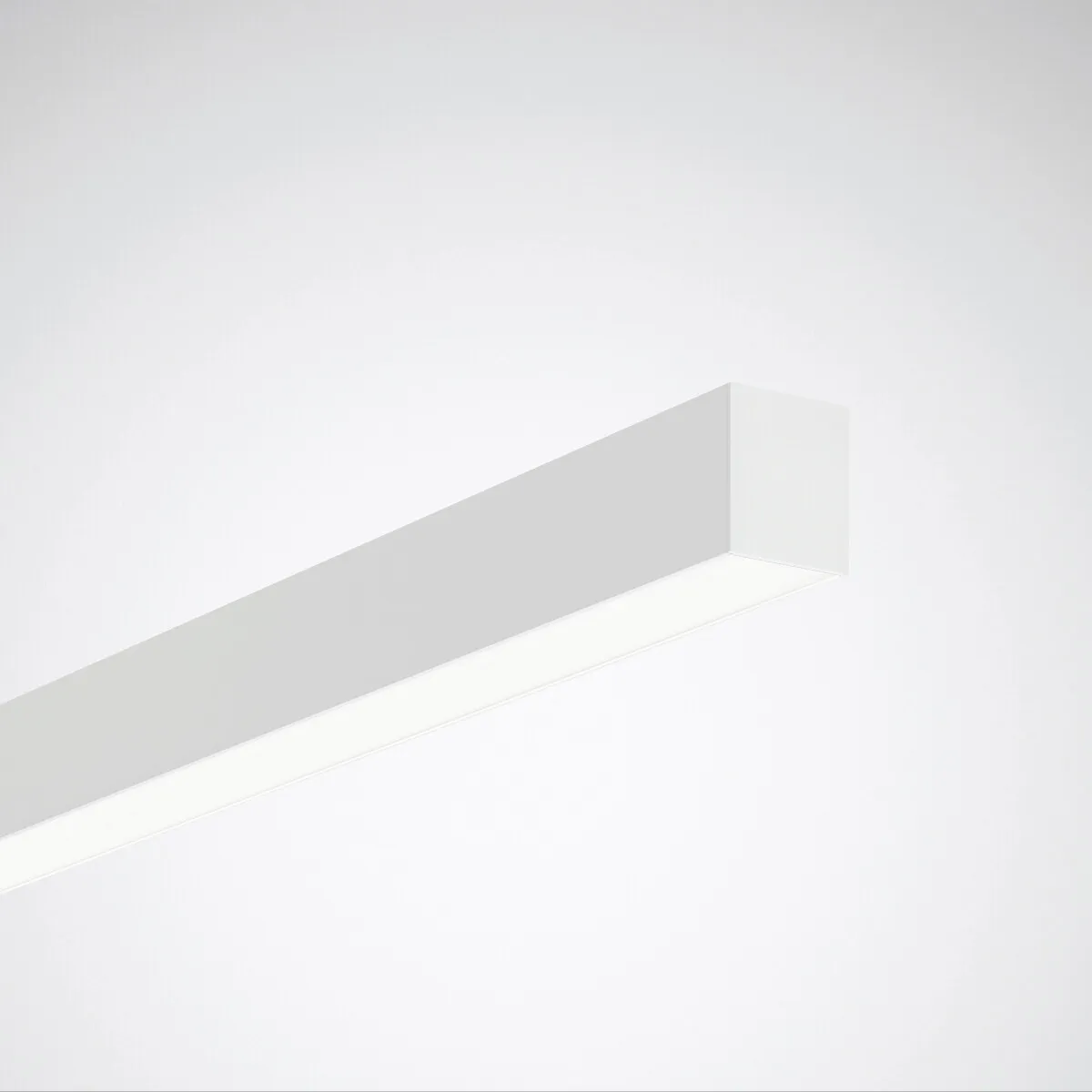

Trilux Finea
Holistic solutions instead of patchwork, thanks to versatility in photometrics and installation type, even extensive projects can be realized with a single luminaire range. This creates an attractive, harmonious overall impression.
Manuals
Links
Luminaire Type
Description
Single or continuous line luminaire
Application Areas
Offices, educational institutions, stores, corridors...
Mounting Methods
Surface mounted, recessed 3-phase rail system, pendant
Types
Surface-mounted, recessed mounted, 3-phase rail system, pendant (direct light distribution), pendant (direct/indirect light distribution), wall mounted (direct light distribution), wall mounted (direct/indirect light distribution) mounting options
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,800lm - 4,500lm/mt.
Connected Load
10W - 45W/mt.
Luminous Efficiency
Energy efficiency up to 125lm/W
Service Life
L90 50,000 h tq 25°C
Light Colour
2700K / 3000K / 4000K / 2700K-6500K Active, Tunable
Colour Rendering Index
Ra > 80 / Ra > 90
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver)
Other Options
LiveLink Wi-Fi Lighting Management Modules
Optical System
Optics
With Opal Diffuser / PMMA Prismatic Diffuser / Prismatic CDP Diffuser (according to EN 12464-1 VDU) / Convision UGR 19 / Convision UGR 16 / Black Diffuser / Asymmetrical (Wallwasher) Optical System
Light Distribution
Direct, Direct-indirect light distribution, Asymmetric (Wallwasher) | UGR<16, UGR<19, UGR <22, UGR <25
Housing
Housing
Outer module housing of extruded aluminium
Housing Options
Single or continuous line luminaire options, options are available for angular designs | Profile Width Options 35mm/50mm/70mm
Accessories
Mounting accessories
Certificates - Standards
Protection Rate
IP20 / IP40
Safety Class
Class I
Impact Resistance
IK03
Certificates
CE, ENEC
Luminaire Type
Description
Single or continuous line luminaire
Application Areas
Offices, educational institutions, stores, corridors...
Mounting Methods
Surface mounted, recessed 3-phase rail system, pendant
Types
Surface-mounted, recessed mounted, 3-phase rail system, pendant (direct light distribution), pendant (direct/indirect light distribution), wall mounted (direct light distribution), wall mounted (direct/indirect light distribution) mounting options
Optical System
Optics
With Opal Diffuser / PMMA Prismatic Diffuser / Prismatic CDP Diffuser (according to EN 12464-1 VDU) / Convision UGR 19 / Convision UGR 16 / Black Diffuser / Asymmetrical (Wallwasher) Optical System
Light Distribution
Direct, Direct-indirect light distribution, Asymmetric (Wallwasher) | UGR<16, UGR<19, UGR <22, UGR <25
LED System - Light Source
Light Source
LED technology
Luminous Flux
1,800lm - 4,500lm/mt.
Connected Load
10W - 45W/mt.
Luminous Efficiency
Energy efficiency up to 125lm/W
Service Life
L90 50,000 h tq 25°C
Light Colour
2700K / 3000K / 4000K / 2700K-6500K Active, Tunable
Colour Rendering Index
Ra > 80 / Ra > 90
Housing
Housing
Outer module housing of extruded aluminium
Housing Options
Single or continuous line luminaire options, options are available for angular designs | Profile Width Options 35mm/50mm/70mm
Accessories
Mounting accessories
Electrical Version
Electrical Version
ET (Electronic Driver) / ETDD (DALI Driver)
Other Options
LiveLink Wi-Fi Lighting Management Modules
Certificates - Standards
Protection Rate
IP20 / IP40
Safety Class
Class I
Impact Resistance
IK03
Certificates
CE, ENEC
