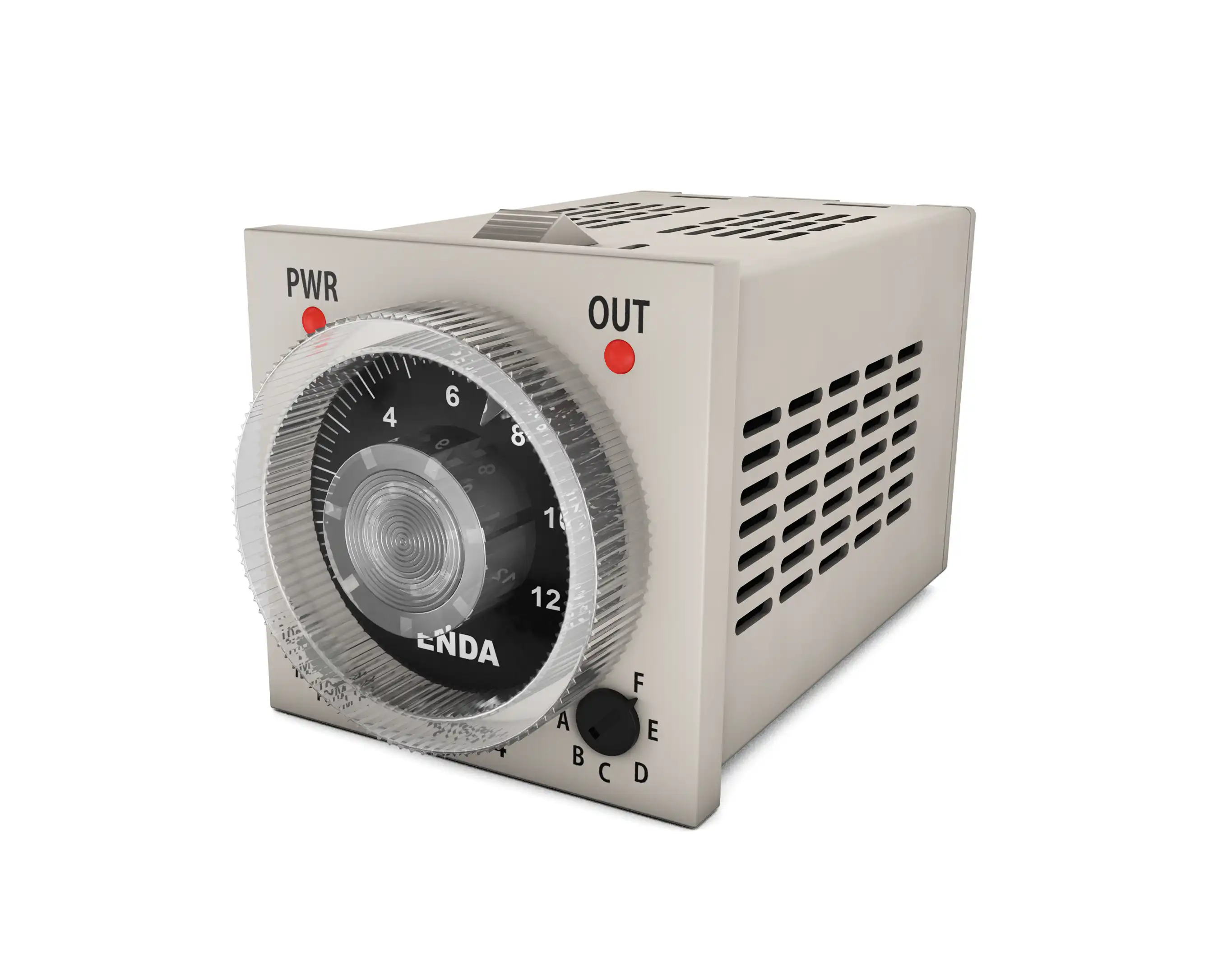

ATSP4
48x48 mm, Analog Functional Timer
Triggered by supply voltage
Triggering output (OUT)
Contact output for timing function (OUT)
6 different timing modes for OUT (A, B, C, D, E, F)
6 different timing unit for OUT (S, 10S, M, 10M, H, 10H)
8 pin octal connector or screw-terminal connection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP50, Rear panel: IP20
Height
Max. 2000m
Outputs
Control Output OUT
Relay: 250V AC, 8A (for resistive load), NO+NC
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Control Output State
OUT LED lit when control output is energized and flashes during timer operates
Housing
Mounting Method
Panel mounting or rail mounting with 8/11 pin octal connector
Dimensions
W48xH48xD82 mm
Weight
Approx. 100g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
90-250V AC, 50/60Hz or 24V AC ±10%, 50/60Hz or 24V DC ±10%
Power Consumption
Max. 10VA
External Connections
8 pin octal connector or plug-in terminals
Scale
0-1.2, 0-3, 0-12, 0-30 or 0-60
Reset Time
0.3s for ATSP4-UV, 0.01s for ATSP4-LV
Accuracy
Max. 0.2% fault depending on supply voltage
Max. 5% fault when setting set value
Max. 1% fault depending on temperature effect
Max. 5% fault when setting set value
Max. 1% fault depending on temperature effect
Control
Timing Function
A, B, C, D, E, F modes can be selected
Timing Unit
second, 10 seconds, minute, 10 minutes, hours and 10 hours on device
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP50, Rear panel: IP20
Height
Max. 2000m
Electrical Characteristics
Supply
90-250V AC, 50/60Hz or 24V AC ±10%, 50/60Hz or 24V DC ±10%
Power Consumption
Max. 10VA
External Connections
8 pin octal connector or plug-in terminals
Scale
0-1.2, 0-3, 0-12, 0-30 or 0-60
Reset Time
0.3s for ATSP4-UV, 0.01s for ATSP4-LV
Accuracy
Max. 0.2% fault depending on supply voltage
Max. 5% fault when setting set value
Max. 1% fault depending on temperature effect
Max. 5% fault when setting set value
Max. 1% fault depending on temperature effect
Outputs
Control Output OUT
Relay: 250V AC, 8A (for resistive load), NO+NC
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load)
Control Output State
OUT LED lit when control output is energized and flashes during timer operates
Control
Timing Function
A, B, C, D, E, F modes can be selected
Timing Unit
second, 10 seconds, minute, 10 minutes, hours and 10 hours on device
Housing
Mounting Method
Panel mounting or rail mounting with 8/11 pin octal connector
Dimensions
W48xH48xD82 mm
Weight
Approx. 100g (after packaging)
Enclosure Material
Self extinguishing plastics
