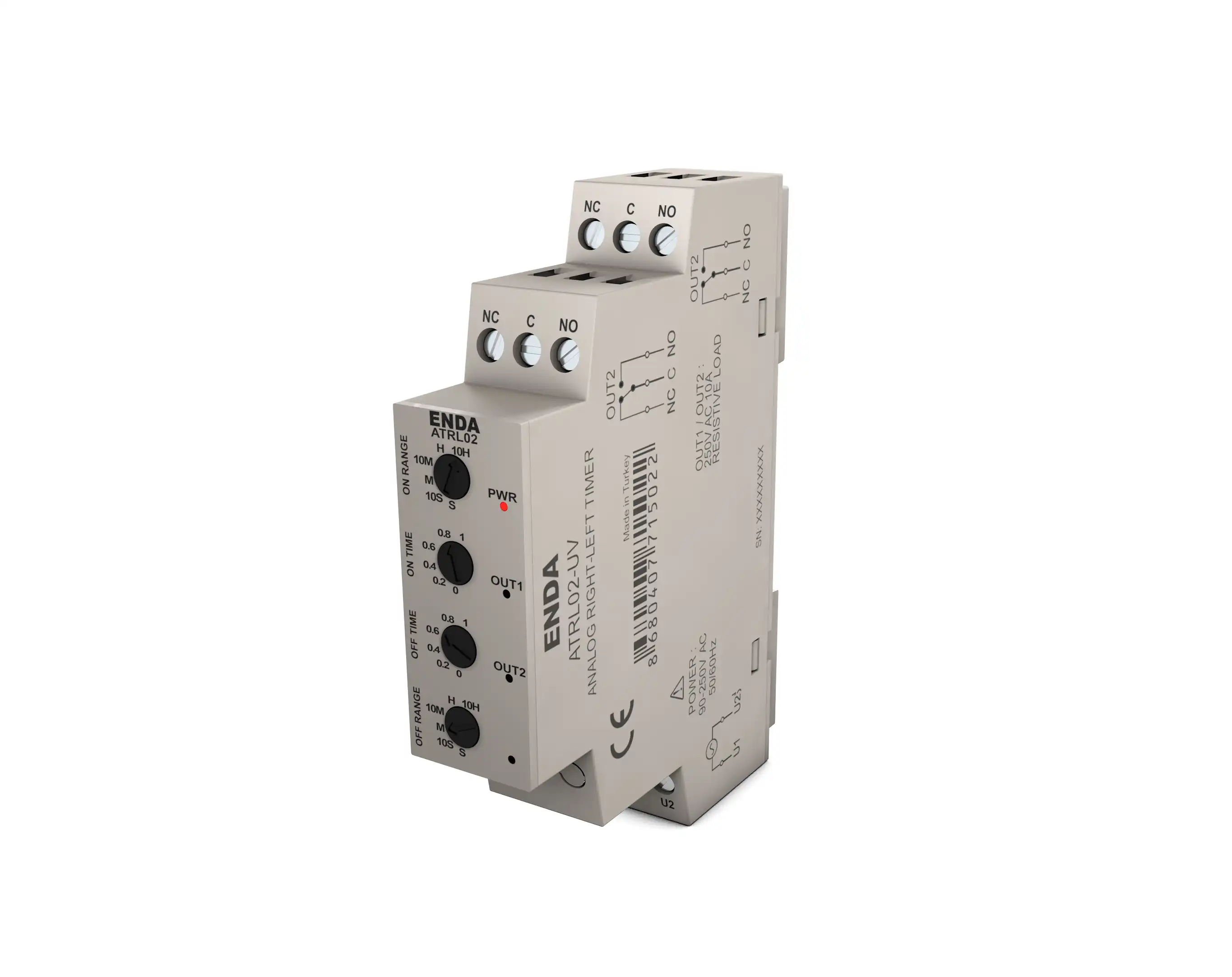

ATRL02
18x90 mm, Rail Mounted, Right/Left Timer
2 outputs for right and left rotation
ton right-left rotation time can be adjusted
toff contact output’s relay off state time can be adjusted
6 different timing units (S, 10S, M, 10M, H, 10H)
Rail mounting
Screw-terminal connection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree
According to EN 60529, IP20
Height
Max. 2000m
Outputs
Control Outputs OUT1, OUT2
2 Relays: 250V AC, 10A (for resistive load), NO+NC
Life Expectancy
Mechanical 10.000.000 operations (under no load), Electrical 50.000 operations (10A at 250V AC, resistive load)
Control Output State
OUT2 LED lit when OUT1 relay is turned on, OUT2 LED lit when OUT2 relay is turned on. OUT1 and OUT LEDs flash during toff time
Housing
Mounting Method
TH35 rail mounting
Dimensions
W18xH90xD66 mm
Weight
Approx. 90g (after packaging)
Enclosure Material
Self extinguishing plastics
Electrical Characteristics
Supply
90-250V AC ±10%, 50/60Hz or 24V AC ±10%, 50/60Hz or 24V DC ±10%
Power Consumption
Max. 10VA
External Connections
Screw-terminals
Scale
Adjustable between 0 and 1
Reset Time
Max. 0.04s
Accuracy
Max. 0.2% fault depending on supply voltage
Max. 4.5% fault when setting set value
Max. 1% fault depending on temperature effect
Max. 4.5% fault when setting set value
Max. 1% fault depending on temperature effect
Control
Timing Function
ton: ON duration for OUT1 and OUT2 Relays, toff: OFF duration for OUT1 and OUT2 relays
Timing Unit
ON and OFF time durations can be selected as, second, 10 seconds, minute, 10 minutes, hours and 10 hours on device
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C
Protection Degree
According to EN 60529, IP20
Height
Max. 2000m
Electrical Characteristics
Supply
90-250V AC ±10%, 50/60Hz or 24V AC ±10%, 50/60Hz or 24V DC ±10%
Power Consumption
Max. 10VA
External Connections
Screw-terminals
Scale
Adjustable between 0 and 1
Reset Time
Max. 0.04s
Accuracy
Max. 0.2% fault depending on supply voltage
Max. 4.5% fault when setting set value
Max. 1% fault depending on temperature effect
Max. 4.5% fault when setting set value
Max. 1% fault depending on temperature effect
Outputs
Control Outputs OUT1, OUT2
2 Relays: 250V AC, 10A (for resistive load), NO+NC
Life Expectancy
Mechanical 10.000.000 operations (under no load), Electrical 50.000 operations (10A at 250V AC, resistive load)
Control Output State
OUT2 LED lit when OUT1 relay is turned on, OUT2 LED lit when OUT2 relay is turned on. OUT1 and OUT LEDs flash during toff time
Control
Timing Function
ton: ON duration for OUT1 and OUT2 Relays, toff: OFF duration for OUT1 and OUT2 relays
Timing Unit
ON and OFF time durations can be selected as, second, 10 seconds, minute, 10 minutes, hours and 10 hours on device
Housing
Mounting Method
TH35 rail mounting
Dimensions
W18xH90xD66 mm
Weight
Approx. 90g (after packaging)
Enclosure Material
Self extinguishing plastics
