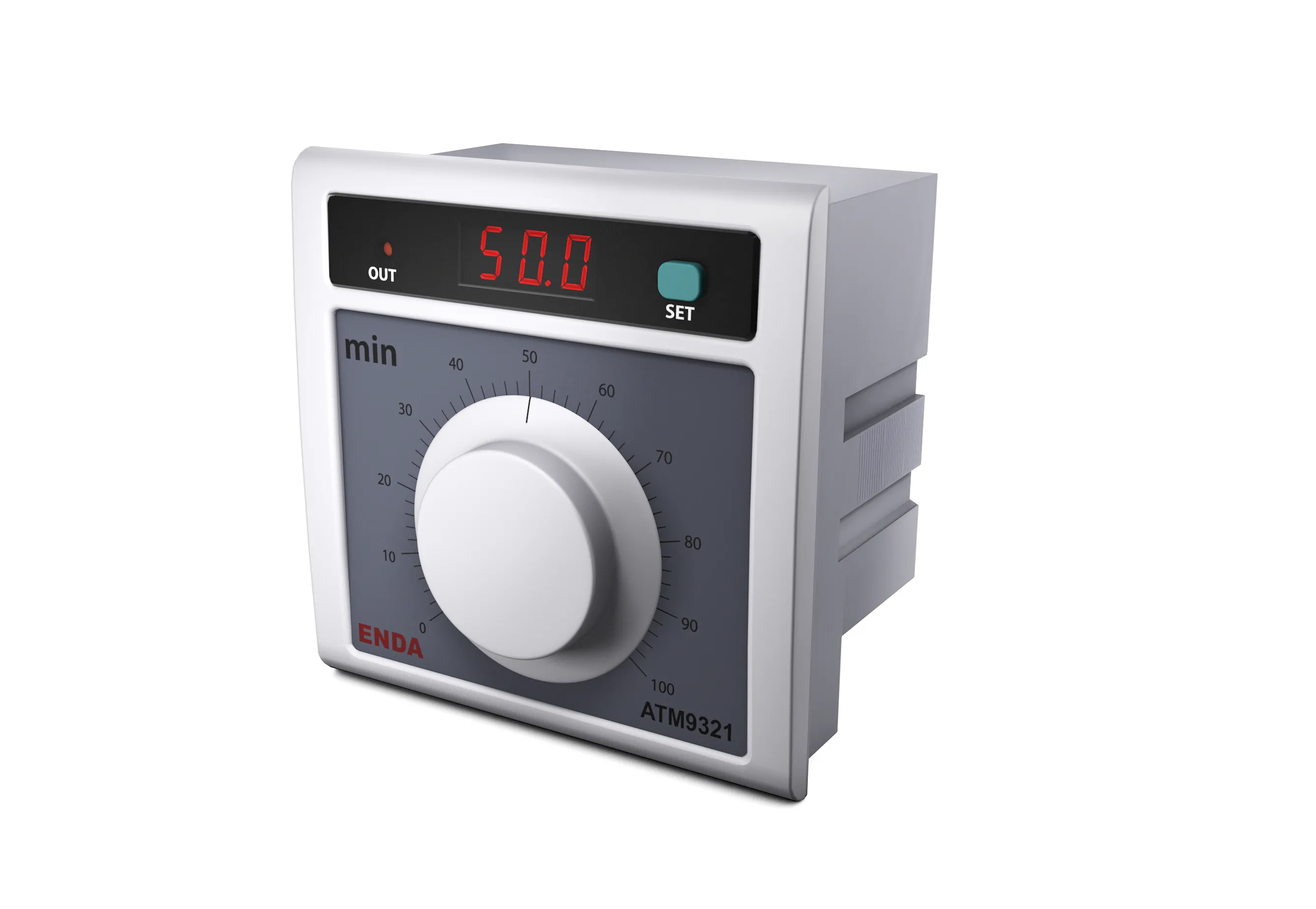

ATM9321
96x96 mm, Digital Display, Analog Adjustable, Easy-to-Use Timer
Digital display for timer value
Selectable scale with 0 ... 9.99 or 0 ... 99.9 or 0 ... 999 min
Selectable mode A (on-delay) and mode B (off-delay) output functions
Start by start input
Reset by reset input
Easy setting procedure
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529 Front panel: IP60, Rear panel: IP20
Height
Max. 2000m
Inputs
Start
Contact input (during min. 5ms)
Reset
Contact input
Control
Output function
"Mode A:Control output is energized after setting time is over"
"Mode B:Control output is energized during setting time"
"Mode B:Control output is energized during setting time"
A/D Converter
10 bits
Electrical Characteristics
Supply
230V AC +%10-%20 50/60Hz or 10-30V DC/8-24V AC
Power Consumption
Max. 6VA
External Connections
Plug-in terminals
Scale
0 ... 9.99 or 0 ... 99.9 or 0 ... 999 min(selectable)
Reset Time
±1 digit
Accuracy
±4% for analog scale, ±0.5% for timer display(of full scale)
Outputs
Control output
Relay: 250V AC, 2A (for resistive load), NO+NC or 12V DC 20mA logic output
Life Expectancy
Mechanical 30.000.000 operations (under no load), Electrical 300.000 operations (2A at 250V AC, resistive load)
Housing
Mounting Method
Panel mounting
Dimensions
W96xH96xD50 mm
Weight
Approx. 250g (after packaging)
Enclosure Material
Self extinguishing plastics
