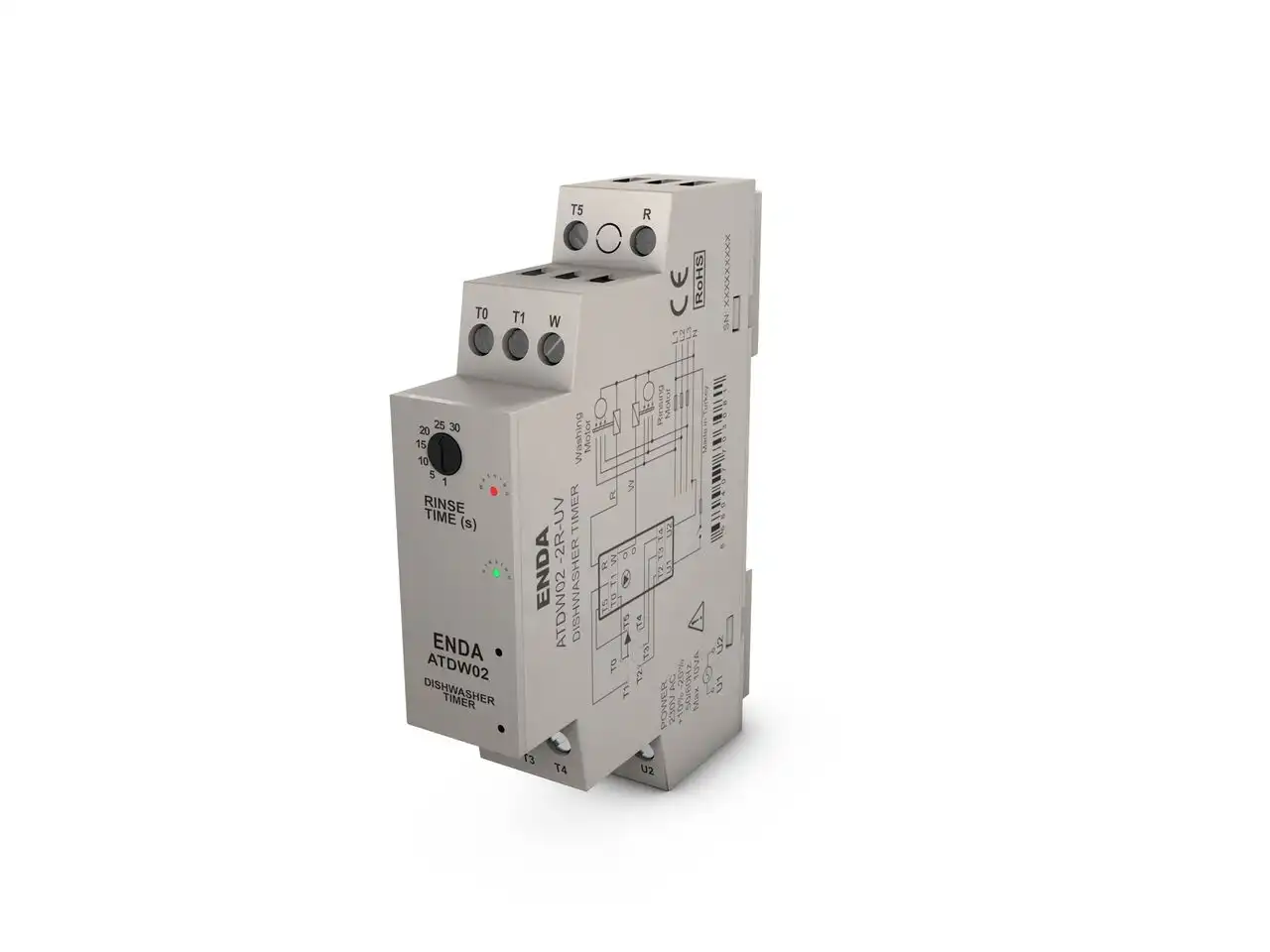

ATDW02
Washing Machine Timer
5 different washing time (30S, 60S, 90S, 120S, 180S)
Adjustable rinsing time (1-30 S)
Washing motor output relay for washing function (W)
Rinsing motor output relay for rinsing function (R)
Adjustable star-delta switching time
Rail mounting
Screw-terminal connection
CE marked according to European Norms
Manuals
Environmental Conditions
Ambient/Storage Temperature
0...+50 ºC / -25...+70 ºC
Relative Humidity
80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree
According to EN 60529, IP20
Height
Max. 2000m
Outputs
Control Outputs Washing/Rinsing
2 Relays: 250V AC, 10A (for resistive load), NO
Life Expectancy
Mechanical 10.000.000 operations (under no load), Electrical 50.000 operations (10A at 250V AC, resistive load)
Electrical Characteristics
Supply
90-250V AC
Power Consumption
Max. 10VA
External Connections
Screw-terminals
Rinsing Time
1-30s (adjustable)
Reset Time
Max 0.04s
Accuracy
Max. 0.2% fault depending on supply voltage
Max. 4.5% fault when setting rinsing value
Max. 1% fault depending on temperature effect
Max. 4.5% fault when setting rinsing value
Max. 1% fault depending on temperature effect
Housing
Mounting Method
TH35 rail mounting
Dimensions
W18xH90xD66 mm
Weight
Approx. 90g (after packaging)
Enclosure Material
Self extinguishing plastics
